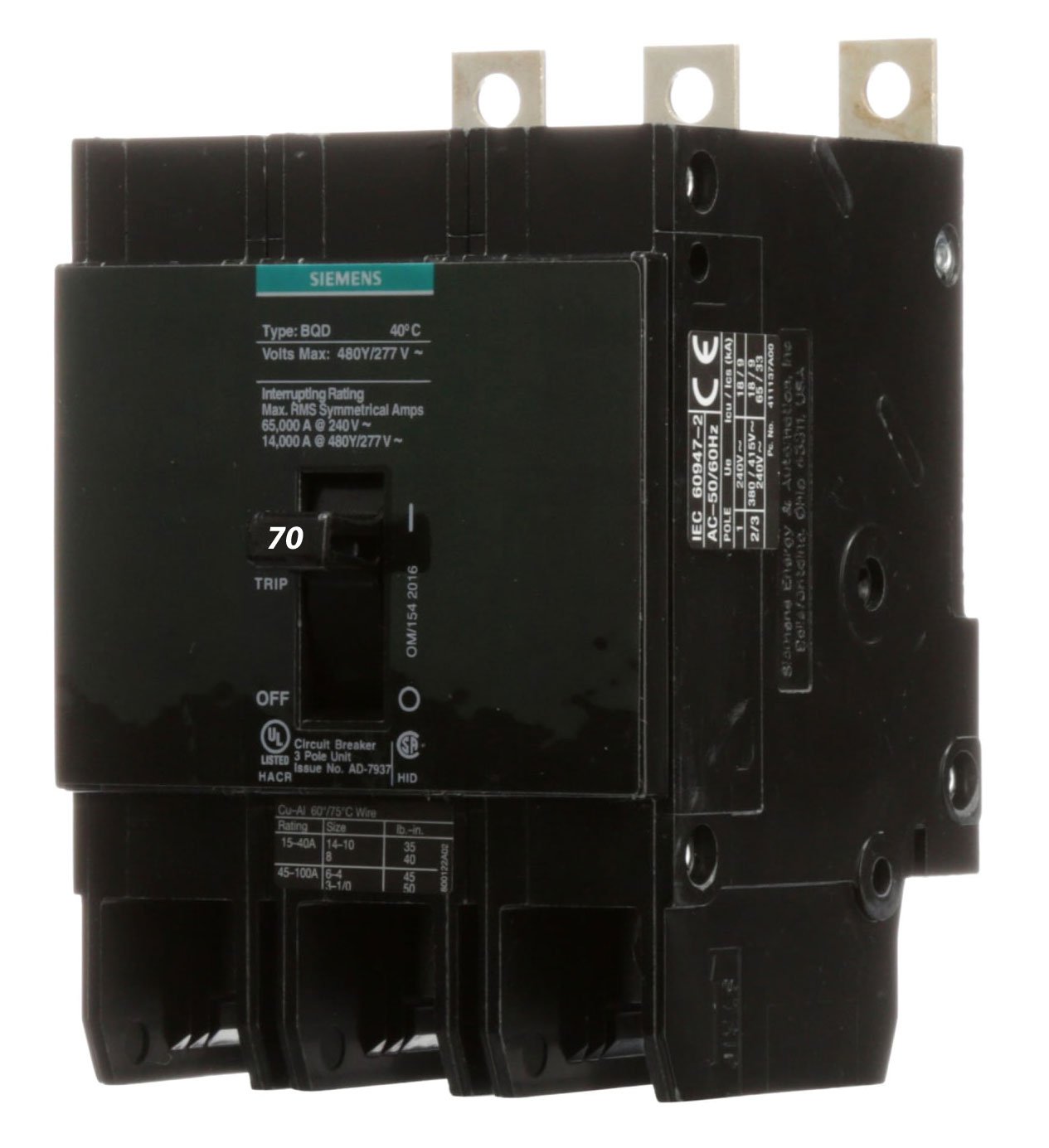

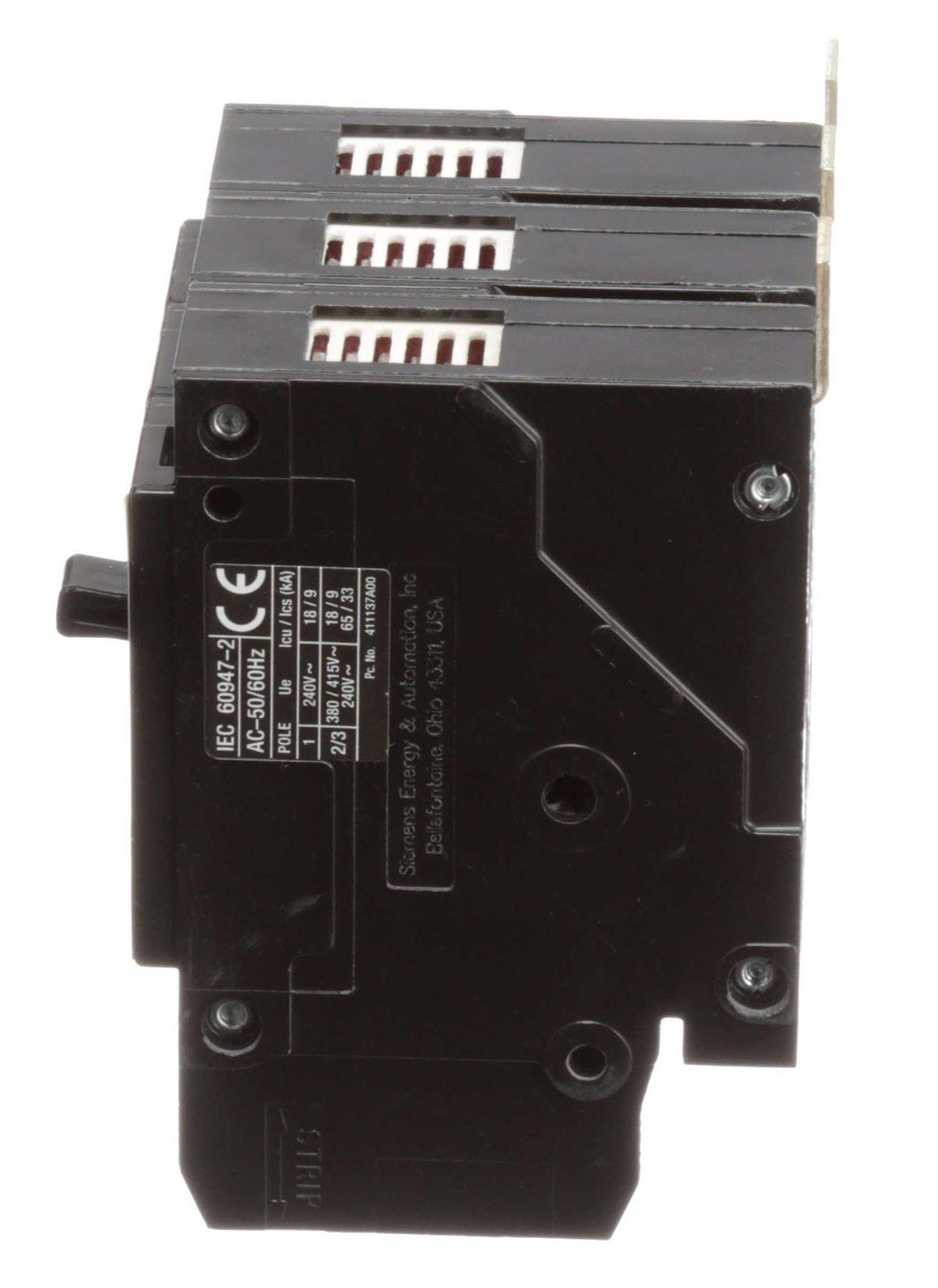

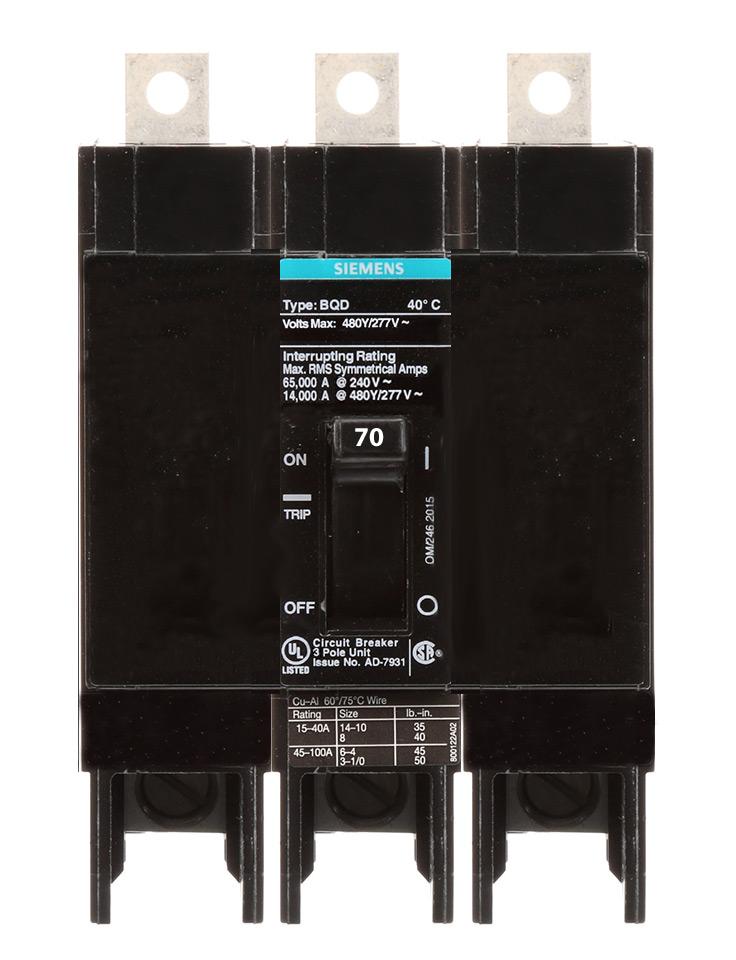

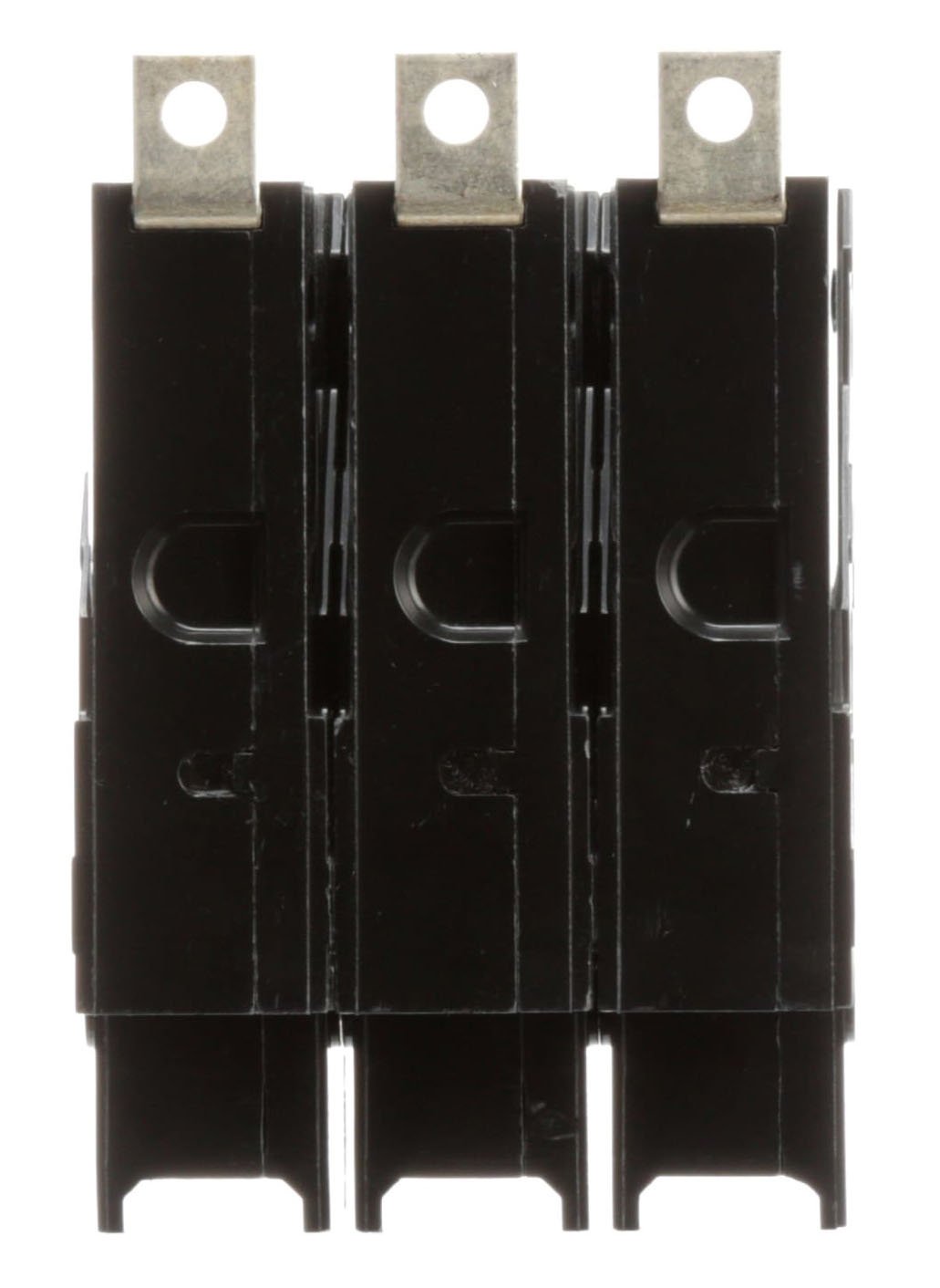

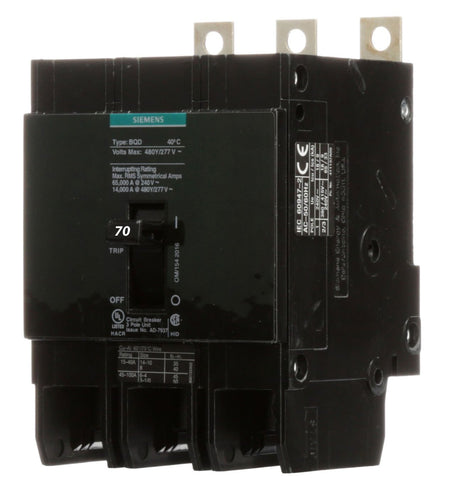

Siemens BQD370 Molded Case Circuit Breaker – 70A – 2-Pole – 480V – 65kA @ 240V AC – Bolt-On – BQD Series

The Siemens BQD370 is a 70A, 2-pole bolt-on molded case circuit breaker from the BQD Series. It has a maximum voltage rating of 480V and a 65kA standard interrupting capacity at 240V AC. The breaker features long-time and instantaneous trip functions and is designed for compatible Siemens electrical distribution applications.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Catalog No.: BQD370
• Product Family: BQD Series
• Series: BQD
• Current Rating: 70A
• Number of Poles: 2-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 480V
• Interrupting Rating: 65kA at 240V AC
• Interrupting Capacity: Standard
• Trip Functions: Long-Time and Instantaneous
• Mounting Type: Bolt-On
• Product Lifecycle: PM300: Active Product
• Net Weight: 1.649 lb
• Product Group: 5361
• RoHS Compliance: Substance restrictions compliance since 07/01/2006
• Brand: Siemens
• Authenticity: Authentic Siemens Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BQD370
• Catalog Number: BQD370
• Model: BQD370
• Product Family: Siemens BQD Series
• Series: BQD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Configuration: 2-Pole, 70A
• Product Group: 5361
• upc:
  783643277434

Compatibility:

Designed for use with compatible Siemens BQD Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The BQD370 provides 70A protection with long-time and instantaneous trip functions and has a maximum voltage rating of 480V.

Always verify the specific panelboard or load center model, approved breaker type, system voltage, pole configuration, phase requirements, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications:

• 70A Rated
• 2-Pole
• 480V Maximum Voltage Rating
• 65kA Interrupting Capacity at 240V AC
• Long-Time and Instantaneous Trip Functions
• Bolt-On Mounting
• RoHS Compliance
• PM300: Active Product
• Genuine Siemens Product
