Eaton BR320 Circuit Breaker – 20A – 3-Pole – 240V – 10kAIC – Plug-In – BR Series
Select product condition:
Couldn't load pickup availability
Ask an expert

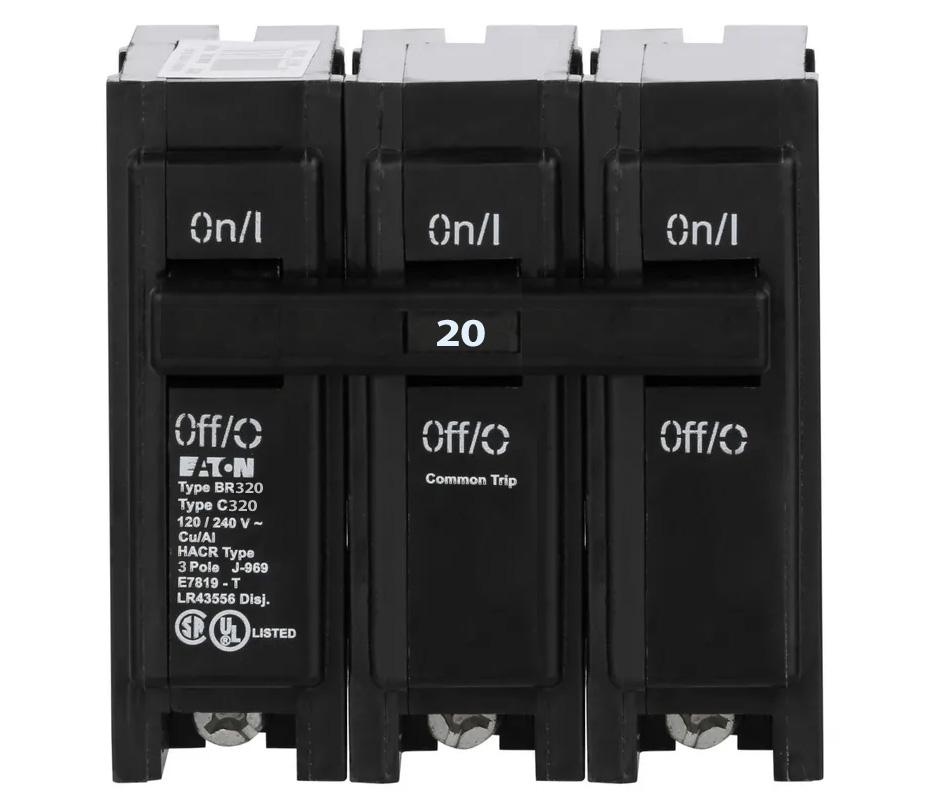

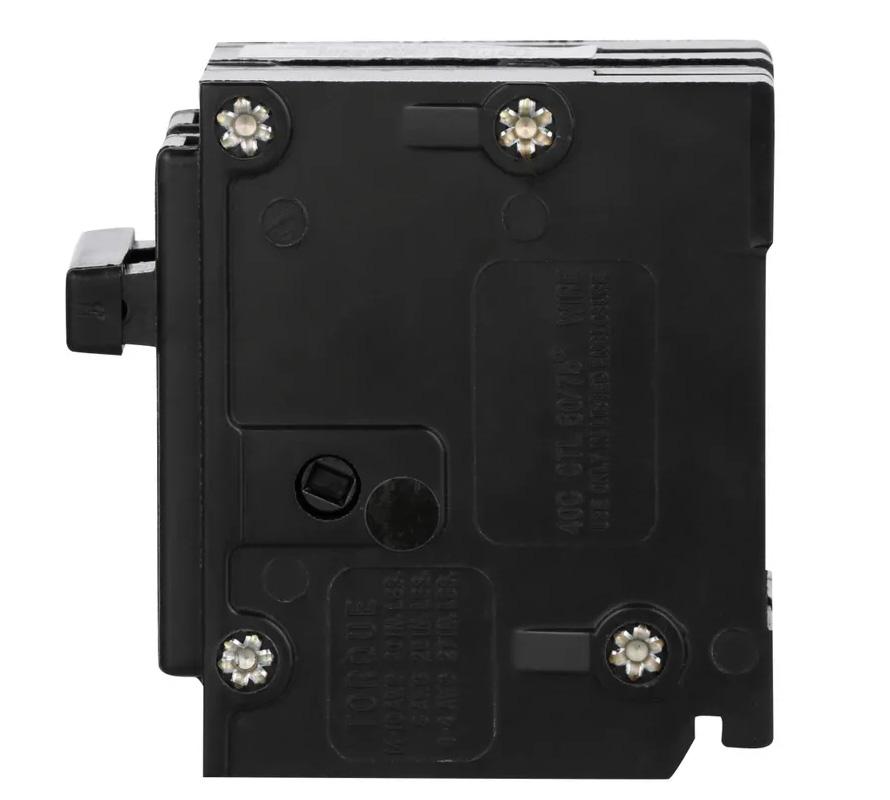

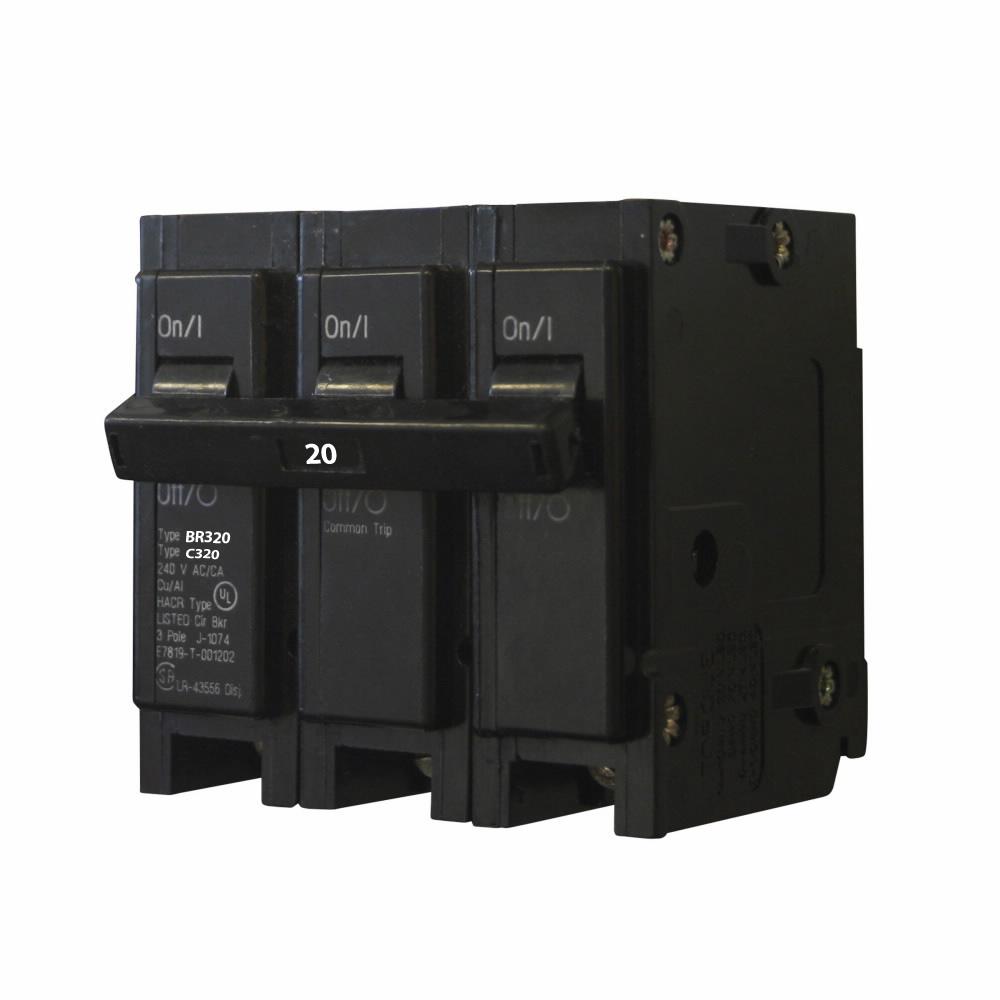

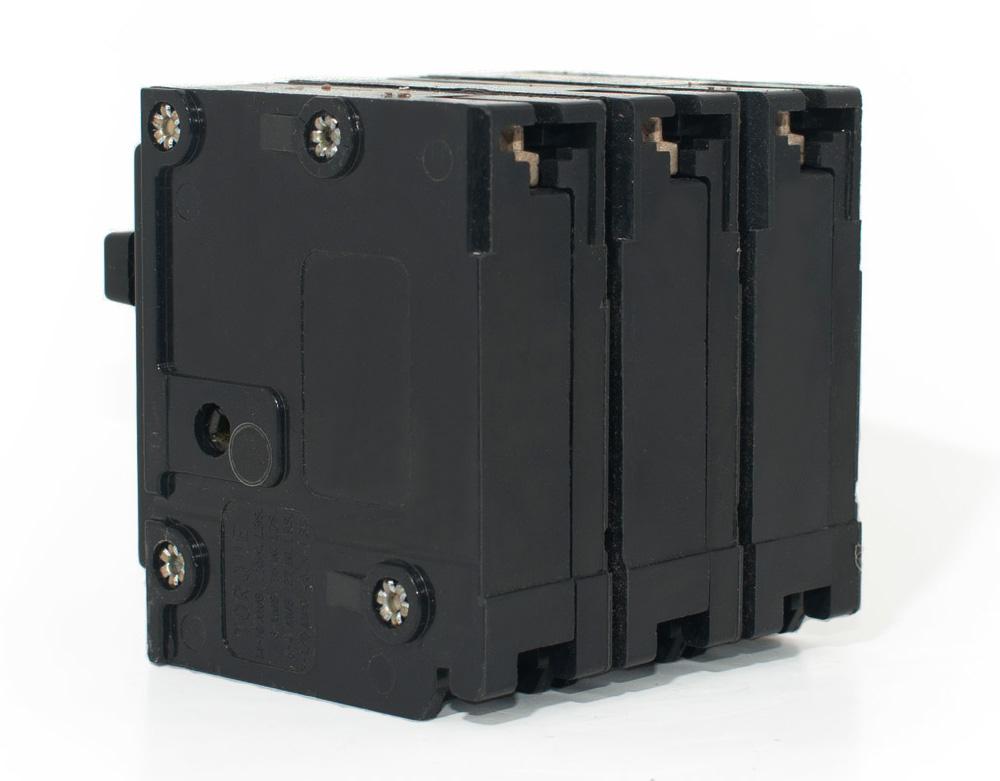

The Eaton BR320 is a 20A, 3-pole plug-in circuit breaker from the BR Series, designed as a replacement breaker for compatible Eaton Cutler-Hammer, Challenger, Westinghouse, and other listed loadcentres and panelboards.
The breaker is rated for 240V and provides reliable circuit protection for compatible 3-phase electrical distribution applications. Its plug-in connection allows convenient installation, with one panel space required per pole.
The BR320 features a 10,000/22,000A interrupting capacity and is suitable for compatible residential and commercial electrical distribution applications.
Specifications
- Manufacturer: Eaton / Cutler-Hammer
- Brand: Eaton
- Product Type: Circuit Breaker
- Catalog No.: BR320
- Model Number: BR320
- Product Family: BR Plug-In Breakers
- Series: BR
- Current Rating: 20A
- Voltage Rating: 240V
- Number of Poles: 3-Pole
- Phase: 3-Phase
- Mounting Type: Plug-In
- Connection: Plug-In
- Panel Spaces: 3 — One space per pole
- Interrupting Capacity: 10,000/22,000A
- Application: Electrical Circuit Protection
- Dimensions (H × W × L): 3" × 3" × 3"
- Authenticity: Genuine Eaton Product
Part Numbers & Identification
- Manufacturer Part Number (MPN): BR320
- Catalog Number: BR320
- Model: BR320
- Product Family: Eaton BR Circuit Breakers
- Series: BR
- Brand: Eaton
- Manufacturer: Eaton
- Product Type: Plug-In Circuit Breaker
- Breaker Configuration: 3-Pole, 20A
-
upc:
786676367752
Compatibility
Designed as a replacement breaker for compatible Eaton / Cutler-Hammer CPL/CPM, Challenger PL/PM/PMF, Westinghouse GL, GLC, WL, WIB, and Novaline panels.
The BR320 is also specified for compatible Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline loadcentres that accept the BR plug-in breaker configuration.
The breaker is intended for compatible 3-phase, 240V electrical distribution applications and requires one panel space per pole.
Always verify the specific panelboard or loadcentre model, approved breaker type, voltage, pole configuration, interrupting rating, and installation requirements before installation.
Certifications
- BR Plug-In Series
- 20A Rating
- 3-Pole / 3-Phase
- 240V Rated
- Plug-In Connection
- 10,000/22,000A Interrupting Capacity
- One Panel Space per Pole
- Compatible with Listed Eaton/Cutler-Hammer Panelboards
- Compatible with Listed Challenger Panelboards
- Compatible with Listed Westinghouse Panelboards
- Compatible with Listed Novaline Loadcentres
- CSA Approved
- UL Listed
- Genuine Eaton Product
- Type Circuit Breakers
- Vendor Eaton Cutler-Hammer
- Brand Eaton
- Electrical Rating Plug-In - 20 Amp - 3 Pole - 240 Volt
