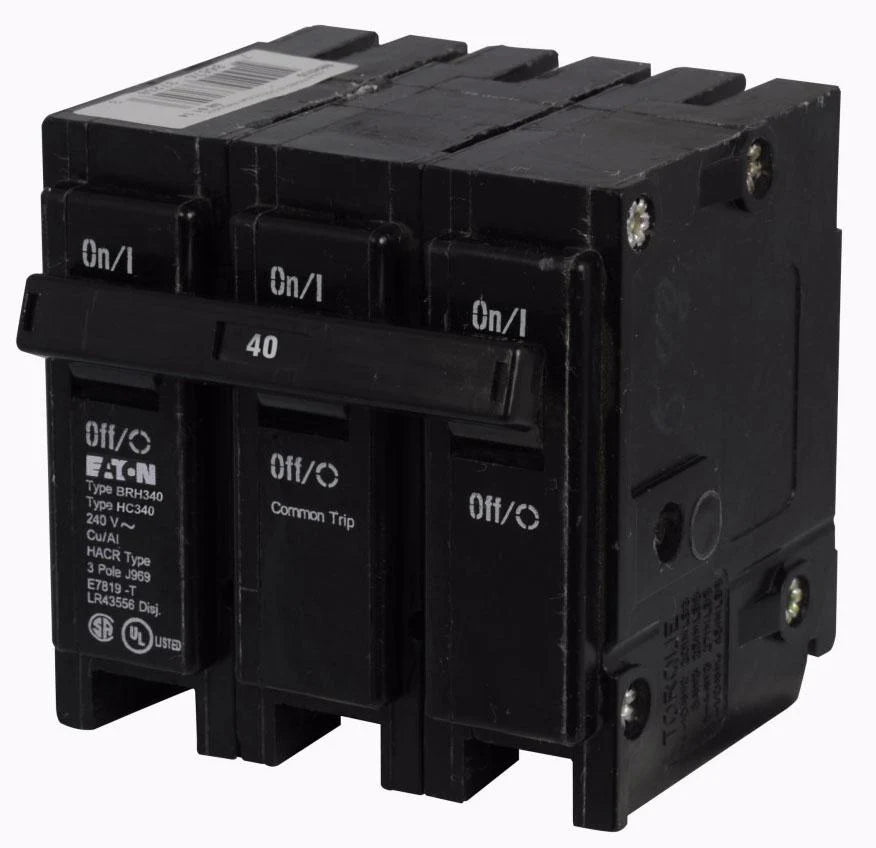

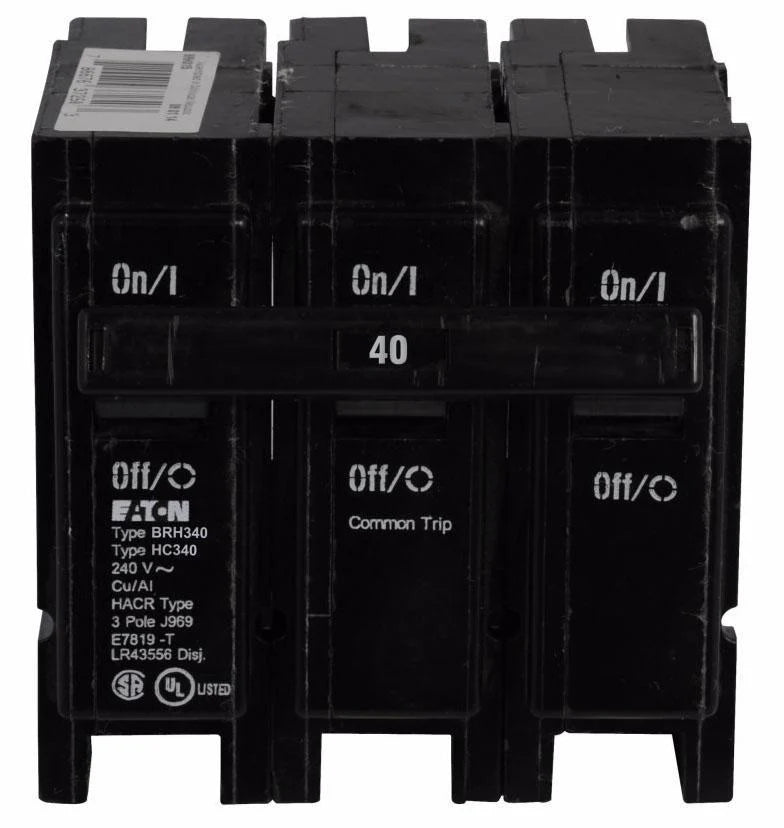

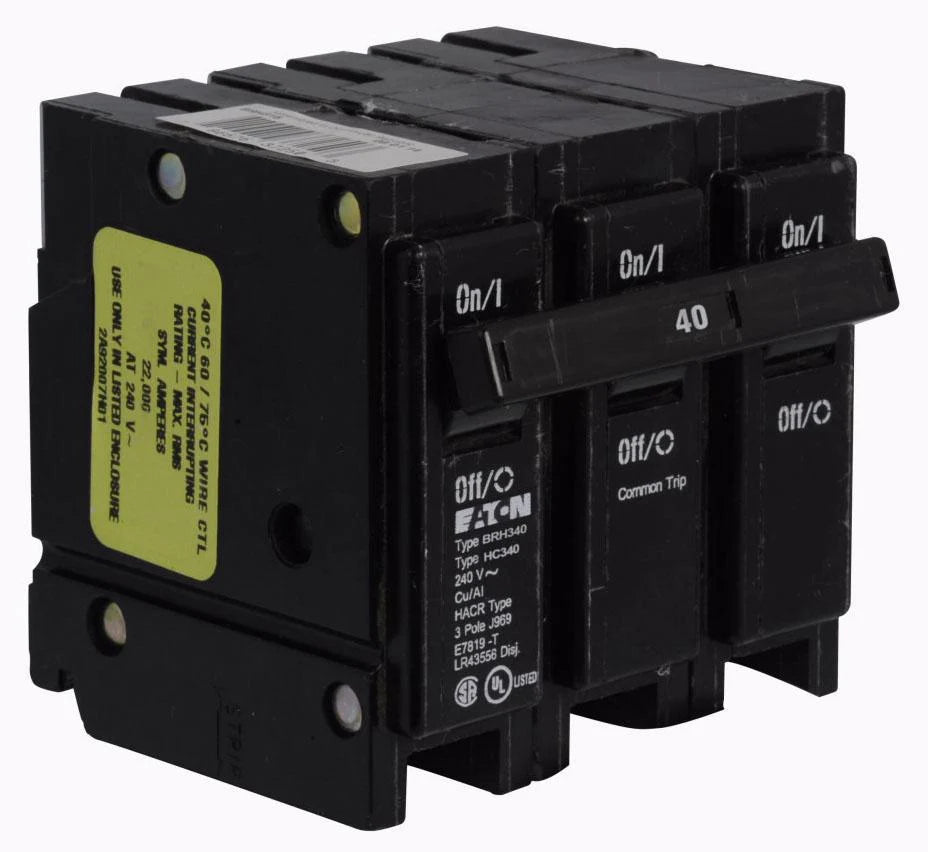

Eaton BRH340 Molded Case Circuit Breaker – 40A – 3-Pole – 240V – 22kAIC – Plug-On – Type BR Series

The Eaton BRH340 is a 40A, 3-pole molded case circuit breaker from the Eaton Type BR / BRH Series. It features thermal-magnetic protection and a common-trip configuration for compatible electrical distribution applications.

The BRH340 is rated for 240V with a 22kAIC interrupting rating. It uses a 1-inch plug-on connection, accommodates 14–4 AWG copper or aluminum conductors, and is designed for compatible Type BR loadcenters.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Type BR
• Series: BR / BRH
• Type: BRH
• Catalog No.: BRH340
• Current Rating: 40A
• Number of Poles: 3-Pole
• Voltage Rating: 240V
• Interrupting Rating: 22kAIC
• Protection Type: Thermal-Magnetic
• Trip Type: Common Trip
• Mounting / Connection: 1-Inch Plug-On
• Wire Range: 14–4 AWG Copper/Aluminum
• Application: Electrical Distribution and Overcurrent Protection
• Used With: Type BR Loadcenters

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BRH340
• Catalog Number: BRH340
• Model: BRH340
• Product Family: Eaton Type BR Circuit Breakers
• Series: BR / BRH
• Type: BRH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 40A
• UPC:786676372657

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Type BR loadcenters that accept BRH Series 1-inch plug-on circuit breakers. The BRH340 provides 40A thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker accommodates 14–4 AWG copper or aluminum conductors and uses a plug-on connection.
