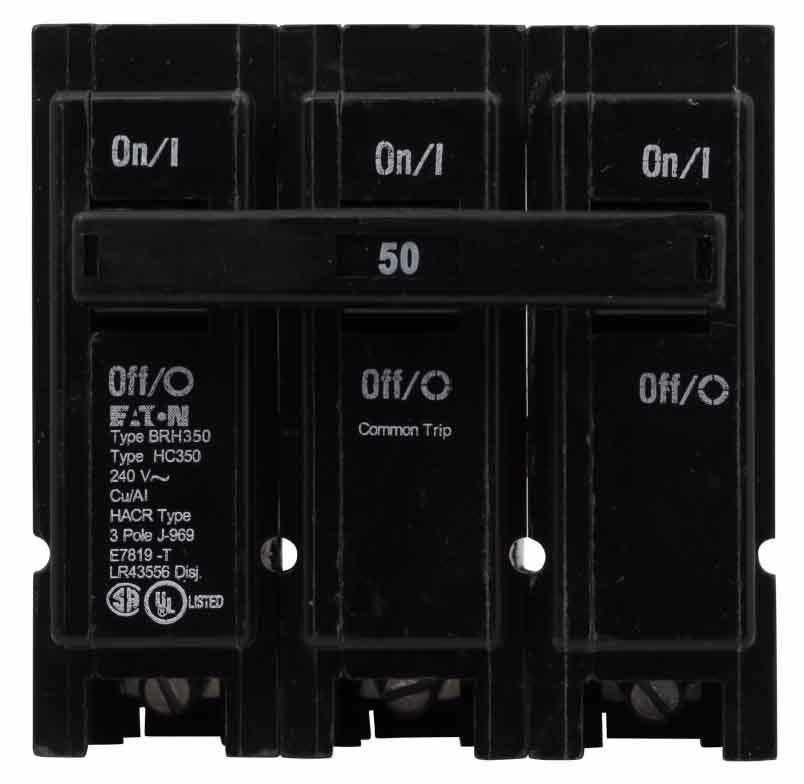

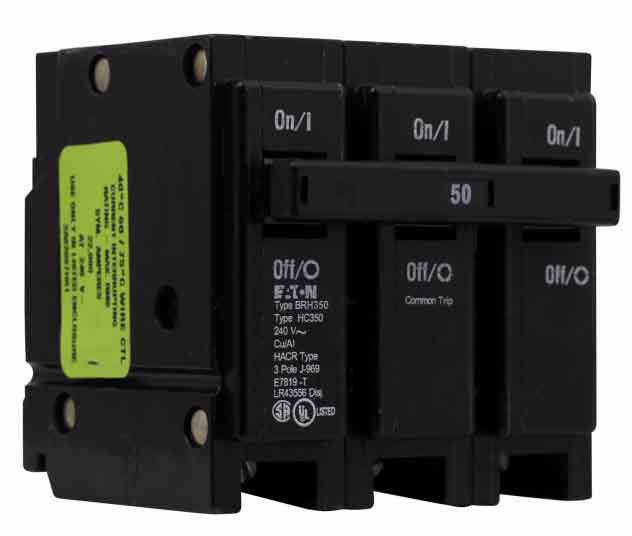

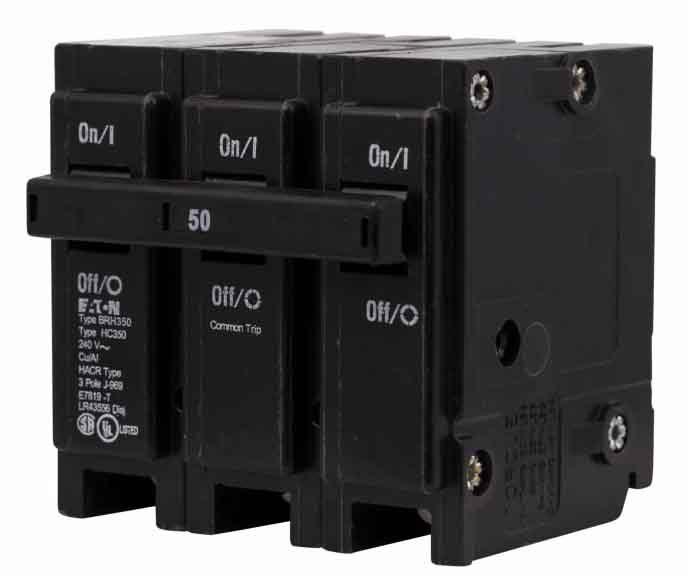

Eaton BRH350 Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 240V – 22kAIC – Plug-On – BRH Series

The Eaton BRH350 is a 50A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Eaton Cutler-Hammer BRH Series. It is a 1-inch plug-on circuit breaker designed for compatible Type BR loadcenters.

The breaker is rated for 240V and provides a 22kAIC interrupting rating. It features a common-trip mechanism and accommodates #14–4 AWG copper or aluminum conductors.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: BR Series
• Series: BRH
• Type: BRH
• Catalog No.: BRH350
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 22kAIC
• Protection Type: Thermal-Magnetic
• Trip Type: Common Trip
• Mounting / Connection: 1-Inch Plug-On
• Wire Range: #14–4 AWG Copper/Aluminum
• Breaker Type: BRH
• Application: Electrical Distribution and Overcurrent Protection
• Used With: Type BR Loadcenters
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BRH350
• Catalog Number: BRH350
• Model: BRH350
• Product Family: Eaton BR Series Circuit Breakers
• Series: BRH
• Type: BRH
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• Current Rating: 50A
• UPC:786676372701

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Type BR loadcenters that accept BRH Series 1-inch plug-on circuit breakers. The BRH350 provides 50A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker accommodates #14–4 AWG copper or aluminum conductors and uses a common-trip configuration. Always verify the specific loadcenter model, approved breaker type, system voltage, available fault current, pole configuration, conductor size, and installation requirements before installation.

Certifications:

• UL Listed
• BRH Series
• 50A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 22kAIC Interrupting Rating
• Thermal-Magnetic Protection
• Common Trip
• 1-Inch Plug-On
• #14–4 AWG Copper/Aluminum
• Compatible with Type BR Loadcenters
