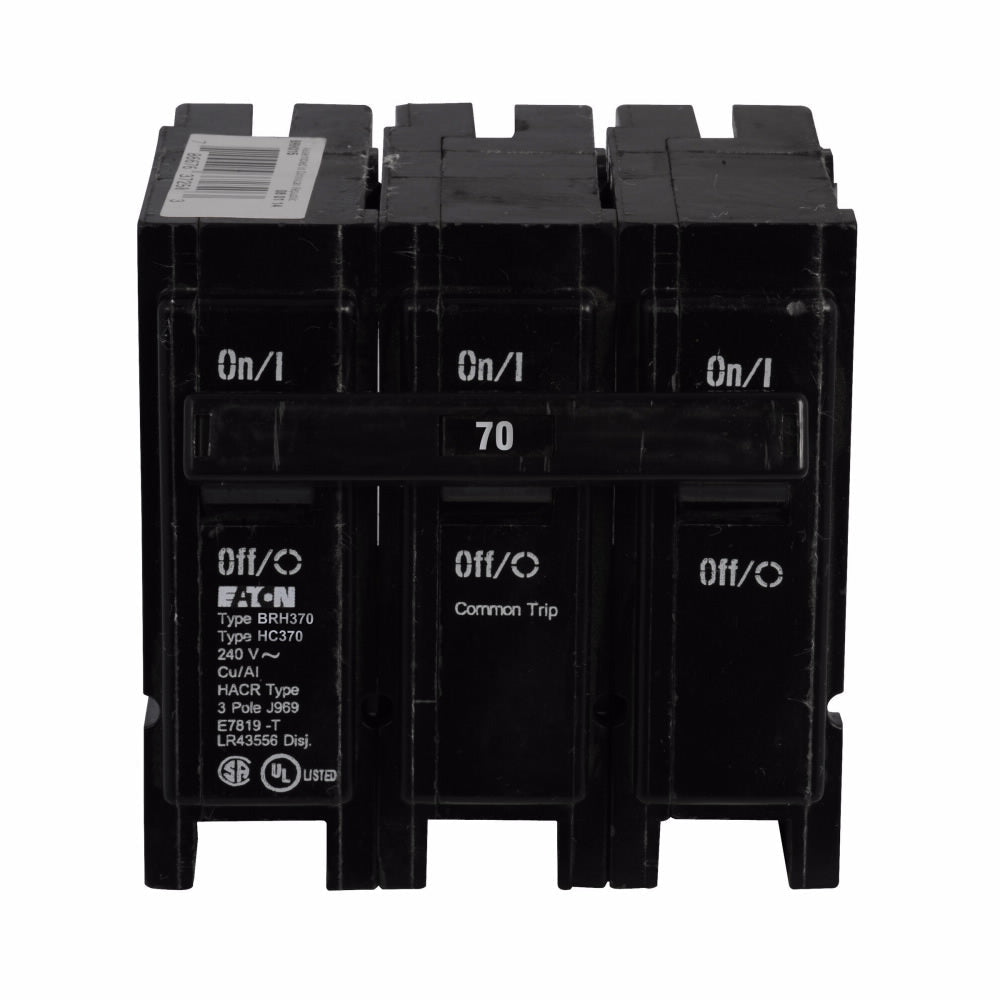

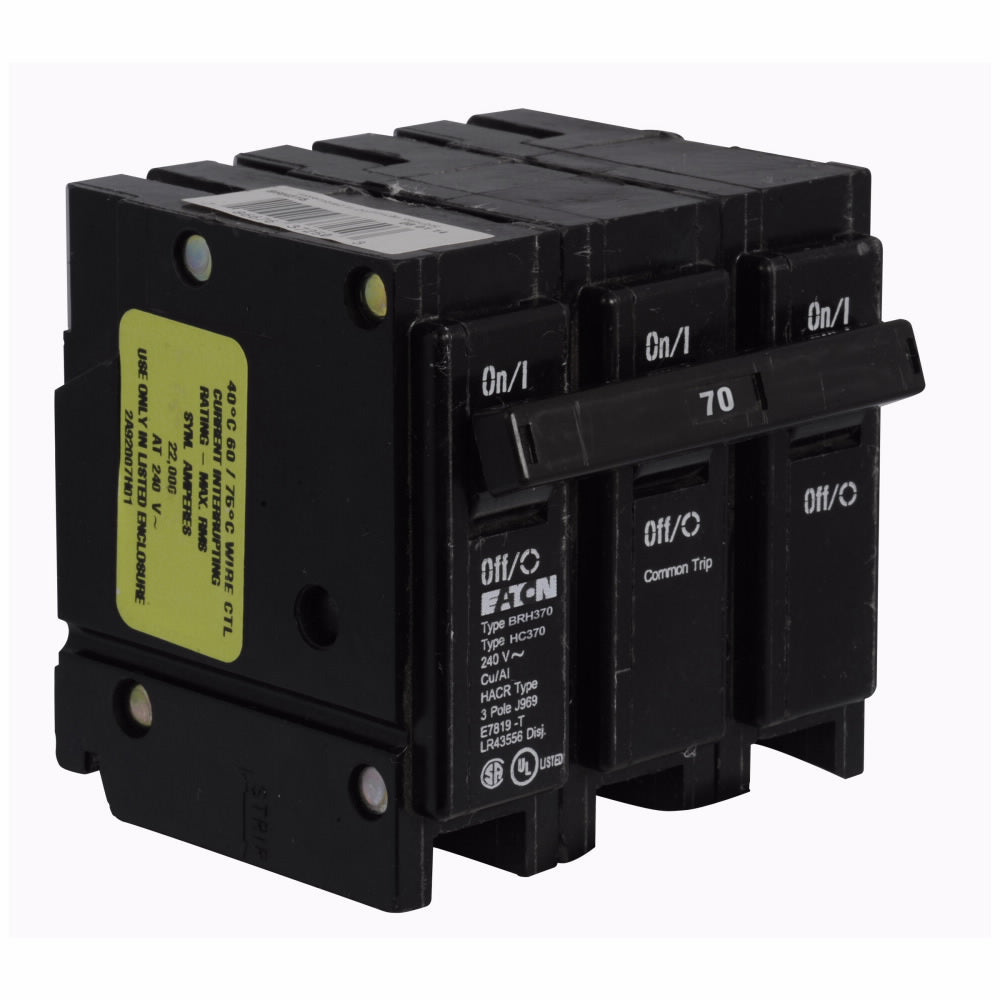

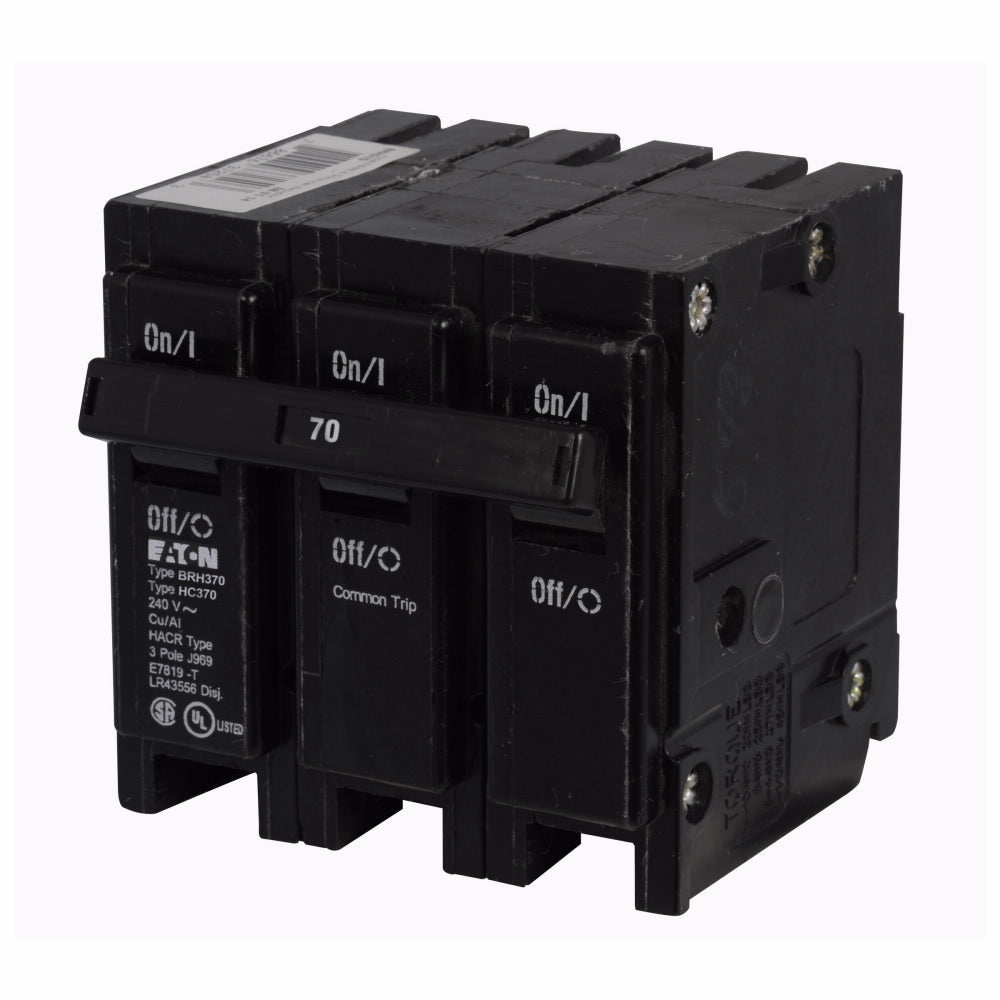

Eaton BRH370 Molded Case Circuit Breaker – 70A – 3-Pole – 240V – 22kAIC @ 240V – Plug-In – BR Series

The Eaton BRH370 is a 70A, 3-pole plug-in molded case circuit breaker from the Eaton Cutler-Hammer BR Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a common-trip mechanism.

The breaker is rated for 240V and provides a 22kAIC interrupting rating at 240V. It uses a 1-inch plug-on connection and accommodates #4–1/0 AWG copper or aluminum conductors. The BRH370 is designed for use with compatible Type BR loadcenters.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Type BR 1-Inch Plug-On Circuit Breaker
• Catalog No.: BRH370
• Series: BR
• Type: BRH
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 22kAIC @ 240V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Common Trip
• Mounting / Connection: 1-Inch Plug-On
• Wire Range: #4–1/0 AWG Copper/Aluminum
• Application: Branch Circuit Overcurrent Protection
• Used With: Type BR Loadcenters

Part Numbers & Identification:

• Manufacturer Part Number (MPN): BRH370
• Catalog Number: BRH370
• Model: BRH370
• Product Family: Eaton BR Series Circuit Breakers
• Series: BR
• Type: BRH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Plug-In Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:786676372800

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Type BR loadcenters that accept BR Series 1-inch plug-on circuit breakers. The BRH370 provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker accommodates #4–1/0 AWG copper or aluminum conductors and uses a common-trip mechanism. Always verify the specific loadcenter model, approved breaker type, system voltage, pole configuration, interrupting rating, conductor size, and installation requirements before installation.

Certifications:

• UL Listed
