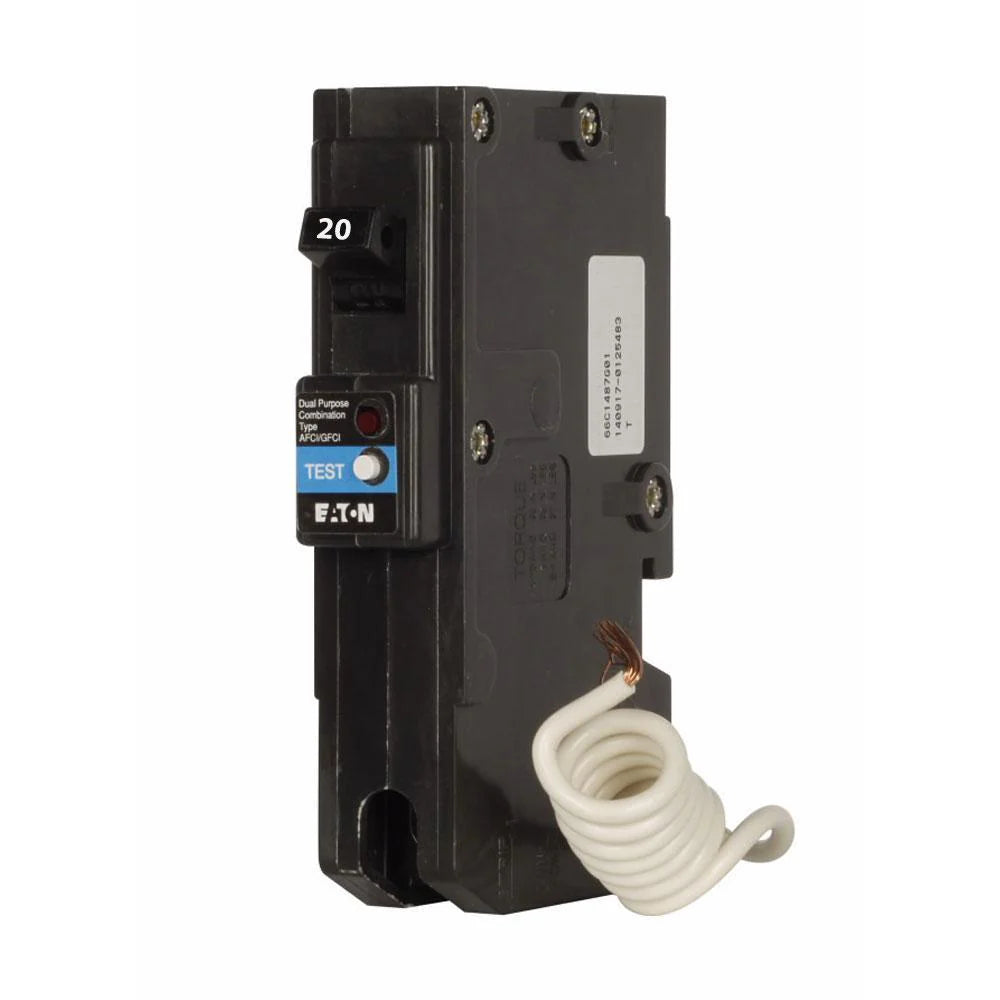

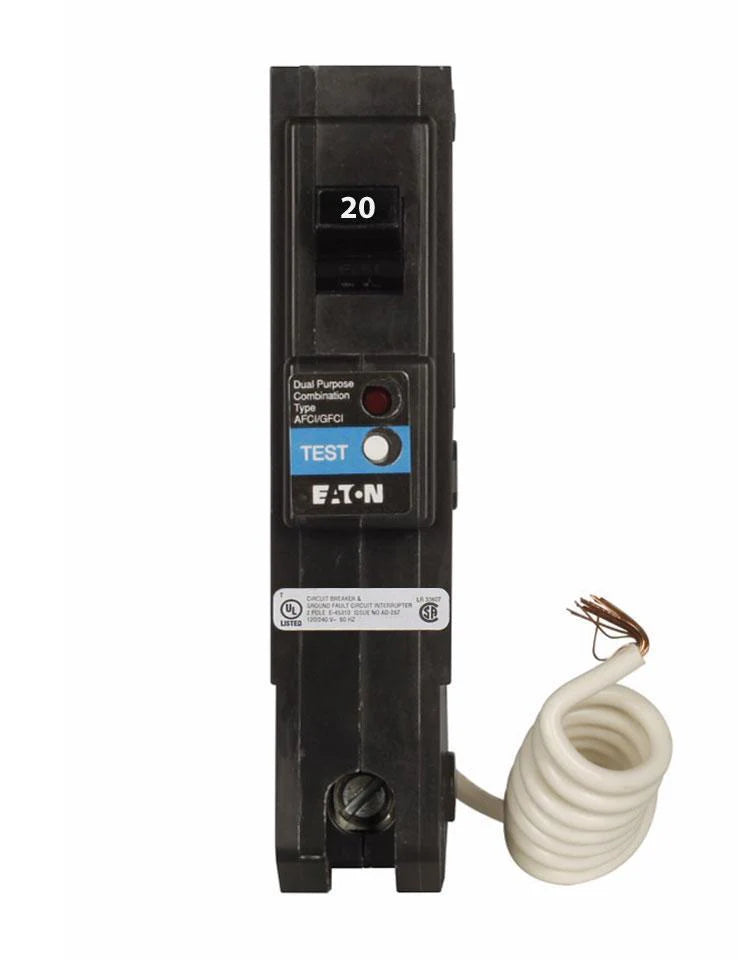

BRLAFGF120 - Eaton - 20 Amp Dual Function Circuit Breaker

The Eaton BRLAFGF120 20A 1-Pole AFCI/GFCI – Pigtail Neutral – 120V circuit breaker delivers reliable 20 Amp, 1-pole combination arc-fault and ground-fault protection for residential 120V AC systems. Designed for Eaton BR loadcenters and equipment, this breaker offers enhanced safety with 5 mA ground-fault trip sensitivity and integrated arc-fault protection. The pigtail neutral simplifies installation, and the plug-in mounting ensures secure connection. With a 10 kAIC interrupt rating and support for copper and aluminum conductors, it provides dependable branch-circuit protection for modern residential electrical systems.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Combination Arc-Fault/Ground-Fault Circuit Interrupter (AFCI/GFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-In
• Product Range: BR (for Eaton BR loadcenters and equipment)
• Application: Residential branch circuit protection
• Special Features: Arc-fault and 5 mA ground-fault protection, pigtail neutral
• Ratings: UL Listed

Technical Specifications

• Connection Type: Pigtail neutral
• Wire Size:
• (1) #14–8 AWG
• (2) #14–10 AWG Cu/Al
• Terminal Tightening Torque: 35.4 lb-in
• Operating Mechanism: AFCI/GFCI combination
• Trip Sensitivity: 5 mA ground-fault
• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: BRLAFGF120
• UPC: 786670007906

Dimensions

• • Height: 2.9 in
  • Width: 1.0 in
  • Depth: 2.9 in
  • Weight: 0.4 lbs
