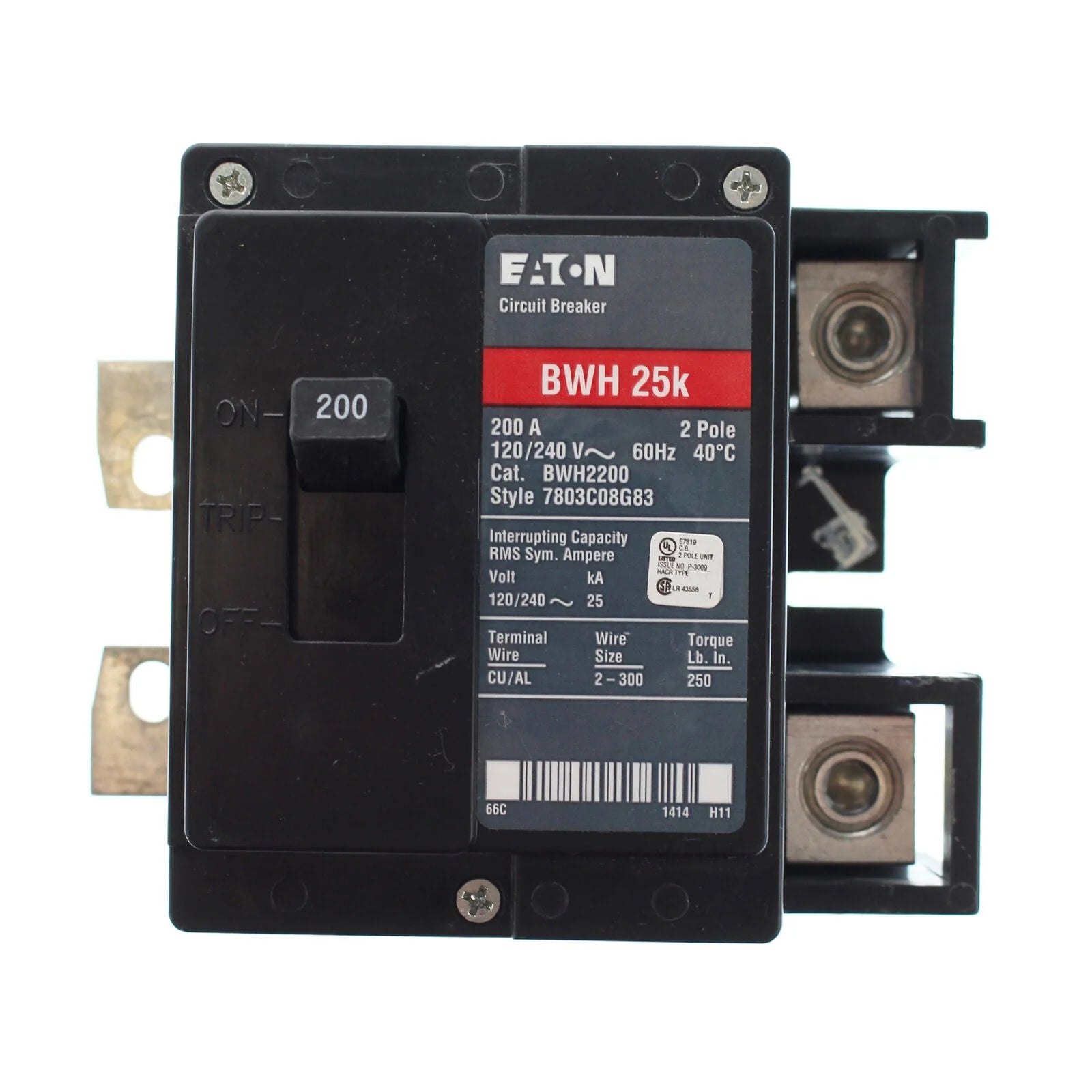

BWH2200 - Eaton - Main Circuit Breaker

Eaton BWH2200 Main Circuit Breaker | 200A, 2-Pole, 120/240V

The Eaton BWH2200 is a 2-pole, 200 Amp, 120/240 V AC molded case circuit breaker designed for residential and light commercial electrical panels. This breaker features a thermal-magnetic trip for dependable protection against overload and short circuits in standard branch circuits and main breaker applications.

As part of the BWH series, it offers an enhanced interrupting capacity of 25 kAIC @ 240 V AC, making it a heavy-duty choice for systems requiring higher fault current protection. The BWH2200 breaker utilizes a plug-on mounting style that installs easily into compatible Eaton/BW series panels.

Key Features

• Poles: 2

• Amperage: 200 A

• Voltage: 120/240 V AC

• Type: Molded Case Circuit Breaker (Type BWH)

• Trip Unit: Thermal-Magnetic

• Interrupting Capacity: 25 kAIC @ 240 V AC

• Mounting Style: Plug-On

• Applications: Designed for residential and light commercial panel applications

• Protection: High-interrupting 25k AIC overload and short-circuit protection

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BWH2200

• UPC Number: 786676460553

• Phase: Single-phase

• Frequency Rating: 50/60 Hz

• Connection: Plug-On

• Wire Range: #2 AWG - 300 kcmil (Cu/Al)

• Approvals: UL Listed
