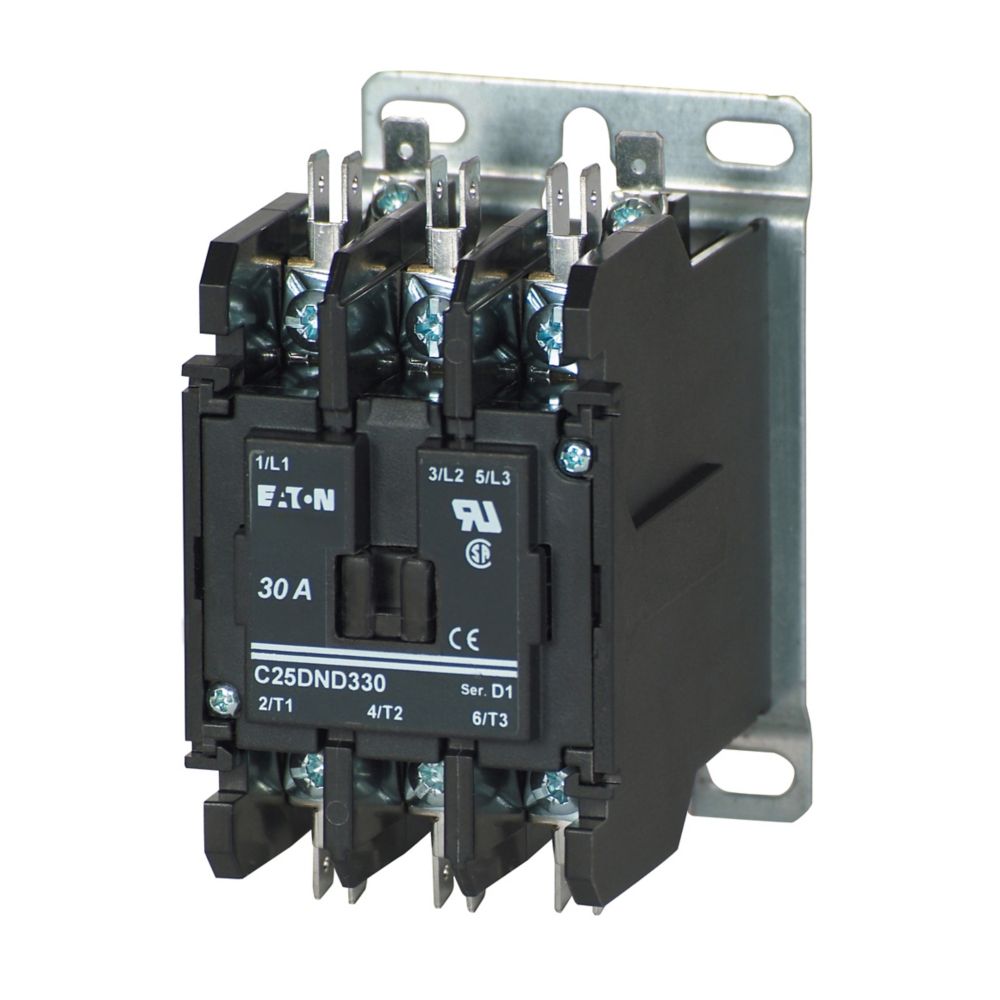

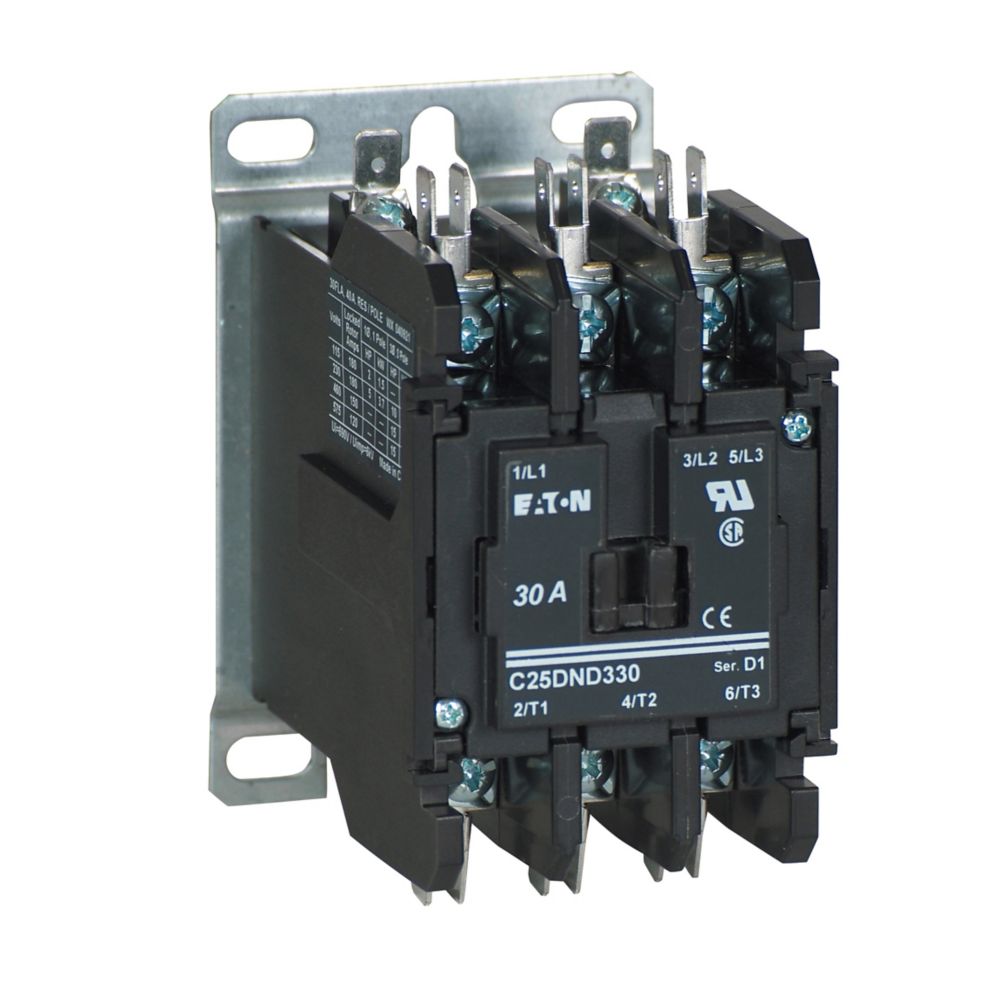

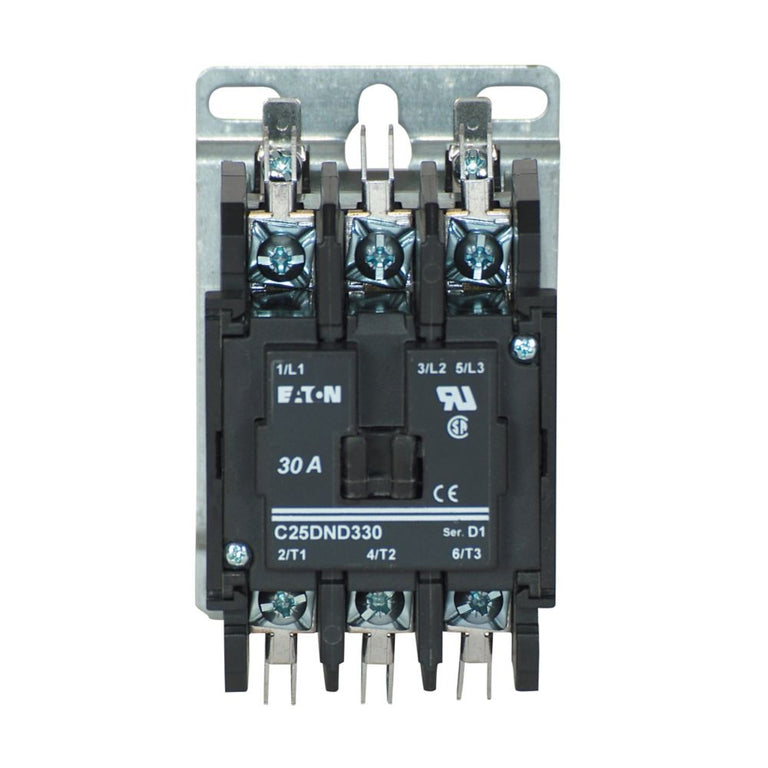

Eaton C25DND330A Magnetic Contactor – 30A – 3-Pole –Open Mount – Definite Purpose Series

The Eaton C25DND330A is a 30A, 3-pole definite-purpose magnetic contactor from the Eaton / Cutler-Hammer Definite Purpose Contactor Series. It features a non-reversing configuration and is designed for compatible electrical load and motor-control applications.

The contactor uses a 110–120V AC coil operating at 50/60Hz and features an open construction with metal mounting plate. It uses screw/pressure-plate and quick-connect terminals arranged side-by-side.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Contactor
• Product Family: Definite Purpose Contactor
• Catalog No.: C25DND330A
• Current Rating: 30A
• Number of Poles: 3-Pole
• Coil Voltage: 110–120V AC
• Coil Frequency: 50/60 Hz
• Contactor Type: Definite Purpose
• Configuration: Non-Reversing
• Construction: Open with Metal Mounting Plate
• Terminal Type: Screw/Pressure-Plate and Quick-Connect Terminals
• Terminal Arrangement: Side-by-Side
• Applicable Current Range: 15–50A Series Range
• Applicable Configurations: Two- and Three-Pole Versions
• Application: Electrical Load and Motor Control
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): C25DND330A
• Catalog Number: C25DND330A
• Model: C25DND330A
• Product Family: Eaton Cutler-Hammer Definite Purpose Contactors
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Contactor
• Configuration: 3-Pole, 30A
• Contactor Type: Definite Purpose
• Configuration Type: Non-Reversing
• UPC:782116300587

Compatibility:

Designed for compatible Eaton / Cutler-Hammer definite-purpose electrical load and motor-control applications requiring a 3-pole, 30A non-reversing contactor with a 110–120V AC coil.

The available source information does not specify the contactor's system voltage rating. Always verify the specific load current, utilization category, system voltage, coil voltage and frequency, pole configuration, terminal requirements, mounting arrangement, and applicable installation requirements before installation.

Certifications:

• Definite Purpose Contactor
• 30A Rated
• 3-Pole
• 110–120V AC Coil
• 50/60 Hz
• Non-Reversing
• Open Construction
• Metal Mounting Plate
• Screw/Pressure-Plate Terminals
• Quick-Connect Terminals
• Side-by-Side Terminal Arrangement
• Eaton / Cutler-Hammer Product
