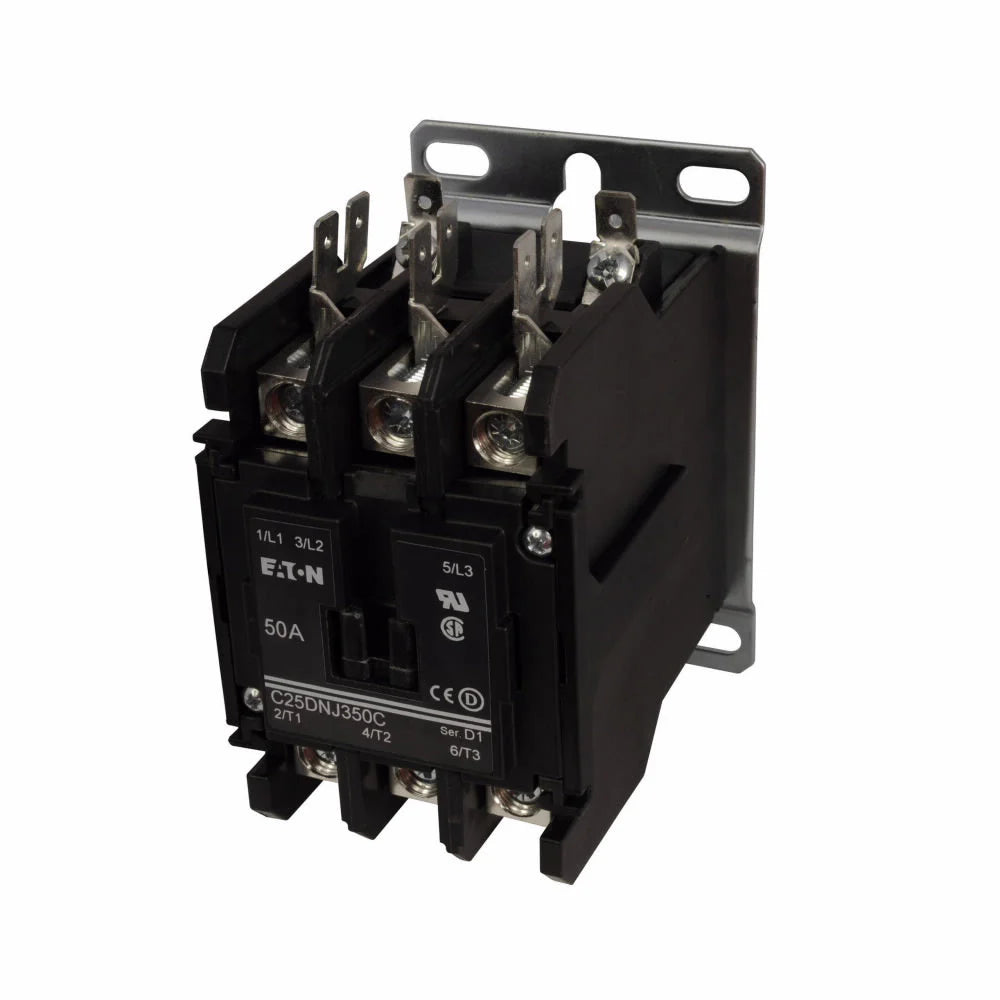

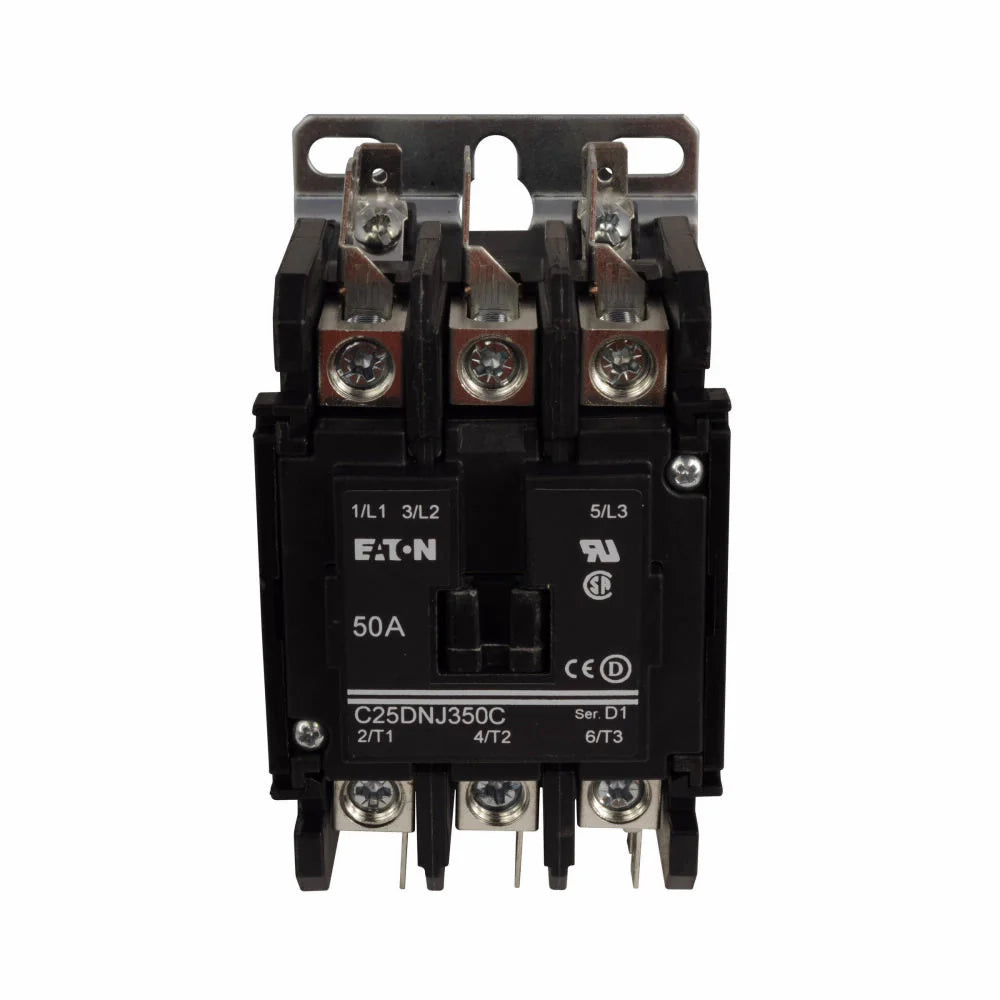

Eaton C25DNJ350C Magnetic Contactor – 50A – 3-Pole – 600V – 65A Resistive – Open Type – C25 Series

The Eaton C25DNJ350C is an open-type definite-purpose magnetic contactor from the Eaton / Cutler-Hammer C25 Series. It is a 3-pole contactor rated for 50A inductive full-load current and 65A resistive current at up to 600V.

The contactor is suitable for 1-phase and 3-phase applications and supports motor loads up to 10 HP at 1-phase and 15 HP and 30 HP at 3-phase, as specified for applicable voltage conditions. It is supplied complete with a 440–480V AC coil rated for 50/60Hz.

The C25DNJ350C features pressure-plate terminals with quick-connect terminals in a vertical in-line arrangement and includes a baseplate.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Contactor
• Product Family: C25 Series
• Series: C25
• Type: C25
• Catalog No.: C25DNJ350C
• Current Rating: 50A Inductive Full Load
• Resistive Current Rating: 65A
• Number of Poles: 3-Pole
• Phase: 1-Phase and 3-Phase Applications
• Voltage Rating: 600V
• Motor Rating: 10 HP @ 1-Phase; 15 HP and 30 HP @ 3-Phase
• Coil Voltage: 440–480V AC
• Coil Frequency: 50/60Hz
• Contactor Type: Open-Type Definite Purpose
• Terminal Type: Pressure Plate with Quick-Connect Terminals
• Terminal Arrangement: Vertical In-Line
• Baseplate: Included
• Application: Motor and Electrical Load Control

Part Numbers & Identification:

• Manufacturer Part Number (MPN): C25DNJ350C
• Catalog Number: C25DNJ350C
• Model: C25DNJ350C
• Product Family: Eaton / Cutler-Hammer C25 Contactors
• Series: C25
• Type: C25
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Configuration: 3-Pole, 50A
• Coil: 440–480V AC, 50/60Hz
• UPC:782116313259

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer C25 Series definite-purpose contactor applications. The C25DNJ350C is suitable for compatible 1-phase and 3-phase motor and electrical load control applications within its specified current, voltage, horsepower, and coil ratings.

The contactor uses pressure-plate terminals with vertical in-line quick-connect terminals and includes a baseplate. Always verify the specific load type, system voltage, motor horsepower, coil voltage, phase configuration, terminal requirements, and installation specifications before installation.

Certifications:

• C25 Series
• 50A Inductive Full-Load Rating
• 65A Resistive Rating
• 3-Pole
• 600V Rated
• 440–480V AC Coil
• 50/60Hz Coil
• Open-Type Definite-Purpose Contactor
• Pressure-Plate Terminals
• Quick-Connect Terminals
• Vertical In-Line Terminal Arrangement
• Baseplate Included
