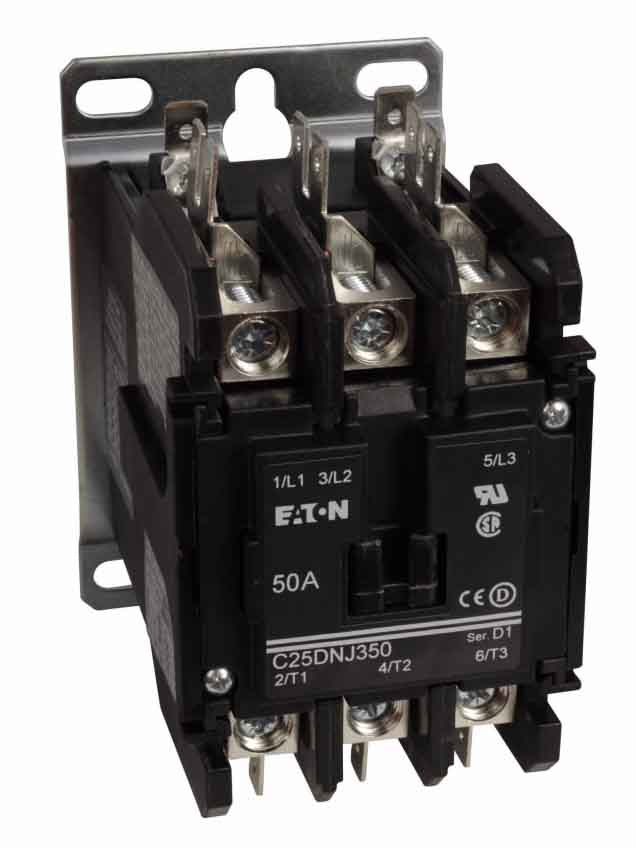

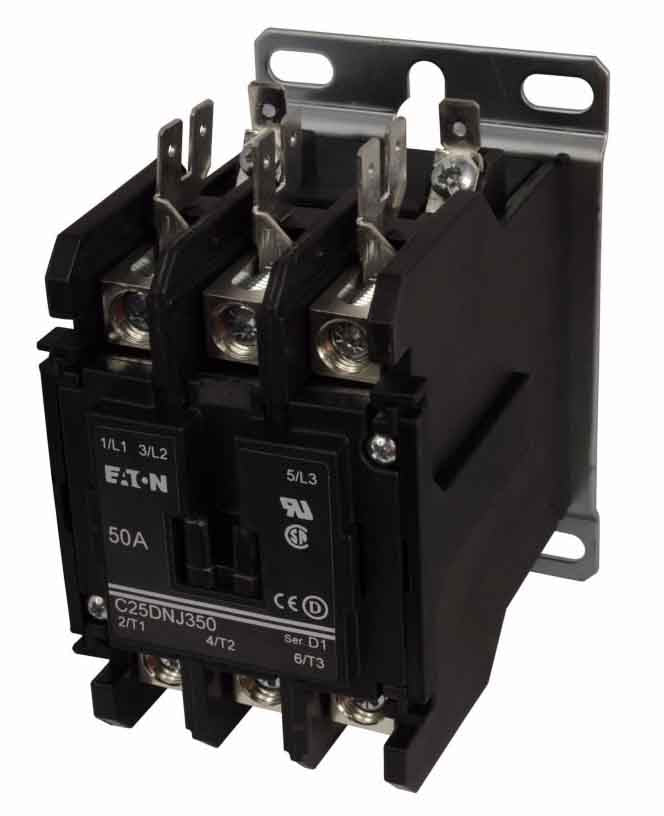

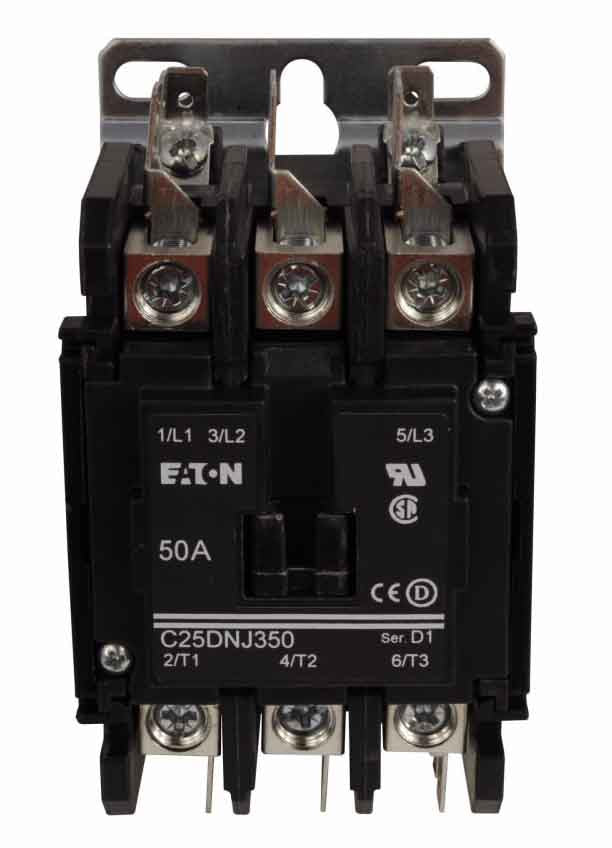

Eaton C25DRJ350A Magnetic Contactor – 50 Amp – 3 Pole – 110/120 VAC Coil – Definite Purpose – C25 Series

The Eaton C25DRJ350A is a 50 Amp, 3-pole open-type definite purpose magnetic contactor from the Eaton Cutler-Hammer C25 Series. It is suitable for 1-phase and 3-phase applications and features a 110–120 V AC, 50/60 Hz coil. The contactor includes a pressure plate with quick-connect terminals and a DIN rail adapter for convenient installation in compatible motor control systems.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Magnetic Contactor
• Series: C25
• Type: C25
• Catalog Number / MPN: C25DRJ350A
• Primary Rating: 50 Amp Inductive Full Load
• Resistive Rating: 65 Amp
• Poles / Configuration: 3 Pole
• Phase: 1 and 3 Phase
• Maximum Voltage: 600 V
• Coil Voltage: 110–120 VAC
• Coil Frequency: 50/60 Hz
• Maximum Motor Rating: 10 HP @ 1 Phase; 15 HP and 30 HP @ 3 Phase
• Contactor Type: Open-Type Definite Purpose
• Terminals: Quick-Connect Terminals with Pressure Plate
• Mounting: DIN Rail Adapter
• Application: Definite Purpose Motor Control Systems

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: C25DRJ350A
• Series: C25
• Type: C25
• Current Rating: 50 A
• Pole Count: 3 Pole
• Product Type: Definite Purpose Magnetic Contactor
• Coil Voltage: 110–120 VAC
• Coil Frequency: 50/60 Hz
• UPC: 786685703114

Compatibility

The Eaton C25DRJ350A is designed for compatible Cutler-Hammer C25 Series definite purpose motor control systems. Verify the required coil voltage, motor horsepower, system voltage, phase configuration, terminal arrangement, and mounting requirements before installation.
