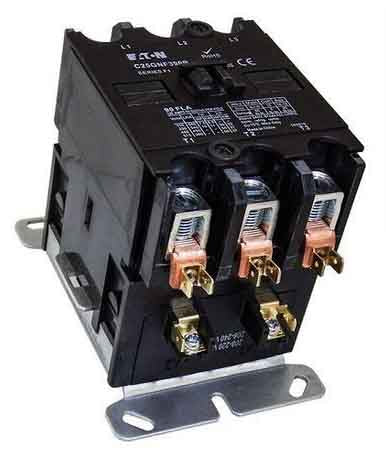

Eaton C25GNF390B Magnetic Contactor – 90A – 3-Pole / 1- & 3-Phase – 600V – 120A Resistive – Open Type – C25 Series

The Eaton C25GNF390B is a 90A, 3-pole magnetic contactor from the Cutler-Hammer C25 Series, Type C25. It is an open-type definite-purpose contactor designed for compatible motor-control and electrical load-switching applications.

The contactor is rated for 600V and has an inductive full-load rating of 90A and a resistive rating of 120A. It supports 1-phase and 3-phase applications and provides maximum motor ratings of 15 HP at 1-phase and 30 HP / 50 HP at 3-phase, as specified for the applicable operating conditions.

The C25GNF390B includes a 208–240V AC coil rated for 50/60 Hz, a pressure-plate connection with side-by-side quick-connect terminals, and an integrated baseplate.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Contactor
• Product Family: C25 Series
• Series: C25
• Type: C25
• Catalog No.: C25GNF390B
• Current Rating: 90A Inductive Full Load
• Resistive Rating: 120A
• Number of Poles: 3-Pole
• Phase: 1-Phase and 3-Phase
• Voltage Rating: 600V
• Coil Voltage: 208–240V AC
• Coil Frequency: 50/60 Hz
• Contactor Type: Definite Purpose
• Construction: Open Type
• Terminal Type: Pressure Plate with Quick-Connect Terminals
• Terminal Arrangement: Side-by-Side
• Baseplate: Included
• Maximum Motor Rating: 15 HP @ 1-Phase; 30 HP / 50 HP @ 3-Phase
• Application: Motor Control and Electrical Load Switching
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): C25GNF390B
• Catalog Number: C25GNF390B
• Model: C25GNF390B
• Product Family: Eaton Cutler-Hammer C25 Contactors
• Series: C25
• Type: C25
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Configuration: 3-Pole, 90A
• Coil: 208–240V AC, 50/60 Hz
• Contactor Type: Definite Purpose
• UPC:782114100189

Compatibility:

Designed for use with compatible Cutler-Hammer / Eaton C25 Series definite-purpose motor control systems. The C25GNF390B is suitable for applications requiring a 3-pole, 90A inductive full-load contactor with a 208–240V AC, 50/60 Hz coil.

The contactor uses pressure-plate connections with side-by-side quick-connect terminals and includes a baseplate. Always verify the specific motor-control system, load current, motor horsepower, system voltage, coil voltage, phase configuration, terminal requirements, and installation specifications before installation.

Certifications:

• C25 Series
• 90A Inductive Full-Load Rating
• 120A Resistive Rating
• 3-Pole
• 600V Rated
• 208–240V AC Coil
• 50/60 Hz Coil
• Definite-Purpose Contactor
• Open Type
• Pressure-Plate Terminals
• Quick-Connect Terminals
• Baseplate Included
