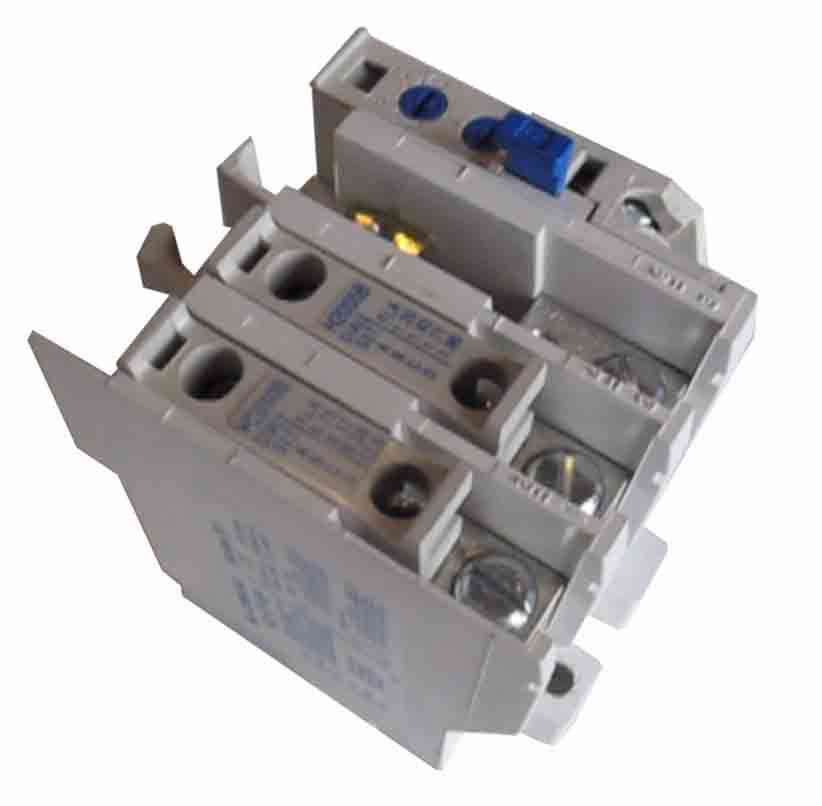

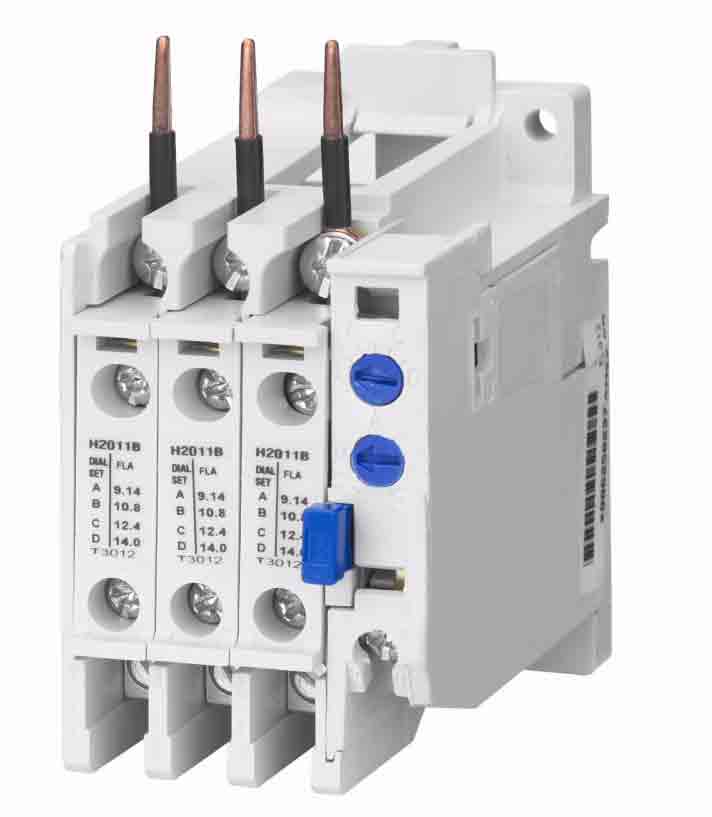

Eaton C306DN3B Thermal Overload Relay – 32A – 3-Pole – 600V – Open Type – Freedom Series

The Eaton / Cutler-Hammer C306DN3B is a thermal overload relay from the Freedom Series, designed for compatible NEMA motor starter and contactor applications. It features a 3-pole, open-type construction and is rated for up to 32A at 600V. The relay is specifically designed for use with Freedom Series NEMA Size 00 and Size 0 contactors, providing motor overload protection when properly matched to the motor and starter application.

Specifications:

• Manufacturer : Eaton / Cutler-Hammer
• Product Type : Motor Starter Overload Relay
• Catalog No. : C306DN3B
• Series : Freedom Series
• Type : C306
• Relay Type : Thermal Overload Relay
• Number of Poles : 3-Pole
• Maximum Current Rating : 32A
• Voltage Rating : 600V
• Enclosure Type : Open Type
• Application : Motor Overload Protection
• Compatible Contactor Series : Freedom Series
• Compatible NEMA Contactor Size : Size 00 and Size 0
• Mounting/Application : Motor Starter / Contactor Assembly
• Protection Type : Thermal Overload Protection
• Brand : Eaton / Cutler-Hammer
• Authenticity : Genuine Eaton / Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : C306DN3B
• Catalog Number : C306DN3B
• Product Family : Eaton Freedom Series Motor Control
• Series : Freedom
• Type : C306
• Brand : Eaton / Cutler-Hammer
• Manufacturer : Eaton
• Product Type : Thermal Overload Relay
• Model : C306DN3B
• upc: 782113973234

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Freedom Series NEMA motor starters and contactors. The C306DN3B is specifically suitable for Freedom Series NEMA Size 00 and Size 0 contactors and is rated for applications up to 32A and 600V.

The overload relay should be properly matched to the motor's full-load current and the associated contactor/starter configuration. Always verify the specific contactor size, motor current, voltage, overload setting range, and manufacturer requirements before installation.

Certifications & Features:

• Freedom Series
• C306 Type
• 3-Pole Thermal Overload Relay
• 32A Maximum Rating
• 600V Rated
• Open-Type Construction
• Suitable for NEMA Size 00 and Size 0 Contactors
• Motor Overload Protection
• Genuine Eaton / Cutler-Hammer Product
