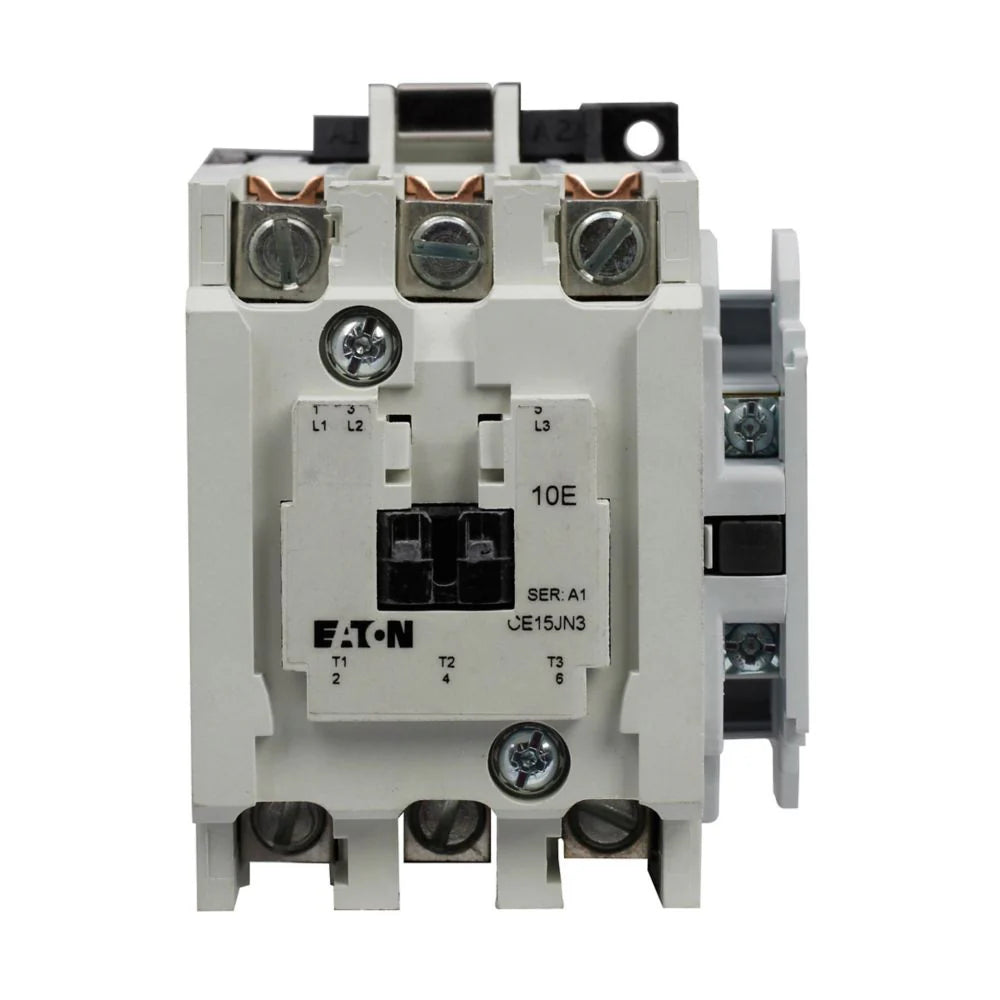

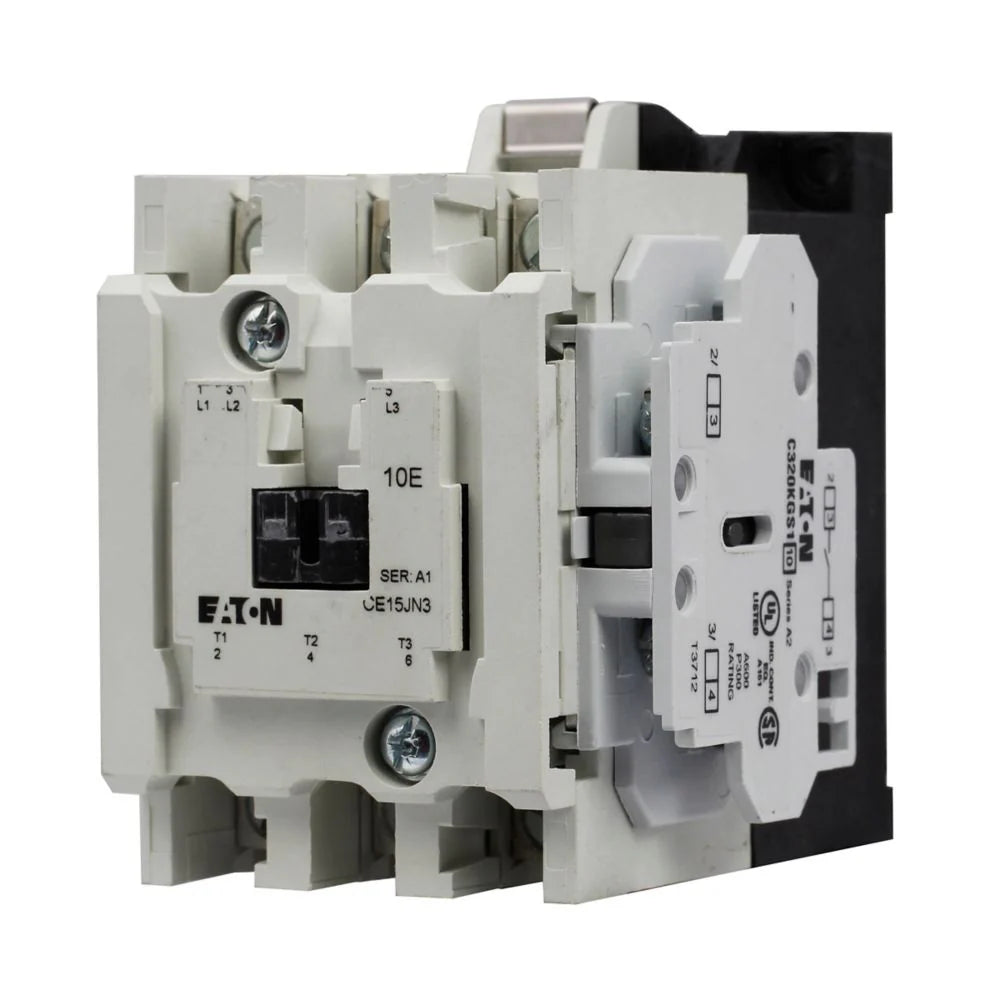

Eaton CE15GN3AB 37 Amp IEC Contactor – 3 Pole – 110–120 V AC Coil – Non-Reversing – XT Series

The Eaton CE15GN3AB is a 37 Amp, 3-pole non-reversing IEC contactor from Eaton’s XT series. It features a 110–120 V AC coil rated for 50/60 Hz operation and is designed for motor control applications. The contactor has a 90 mm Frame G configuration and includes a steel mounting plate.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: IEC Contactor
• Series: XT
• Catalog Number / MPN: CE15GN3AB
• Primary Rating: 37 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 110–120 V AC
• Coil Frequency: 50/60 Hz
• Horsepower Rating: 3 HP
• Contactor Type: Non-Reversing
• Frame: G
• Frame Size: 90 mm
• Mounting Plate: Steel

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: CE15GN3AB
• Series: XT
• Frame: G
• Current Rating: 37 A
• Pole Count: 3 Pole
• Product Type: Non-Reversing IEC Contactor
• Mounting Plate: Steel
• UPC:782113973272

Compatibility

The Eaton CE15GN3AB is intended for compatible Eaton XT-series motor control assemblies requiring a three-pole non-reversing IEC contactor.
