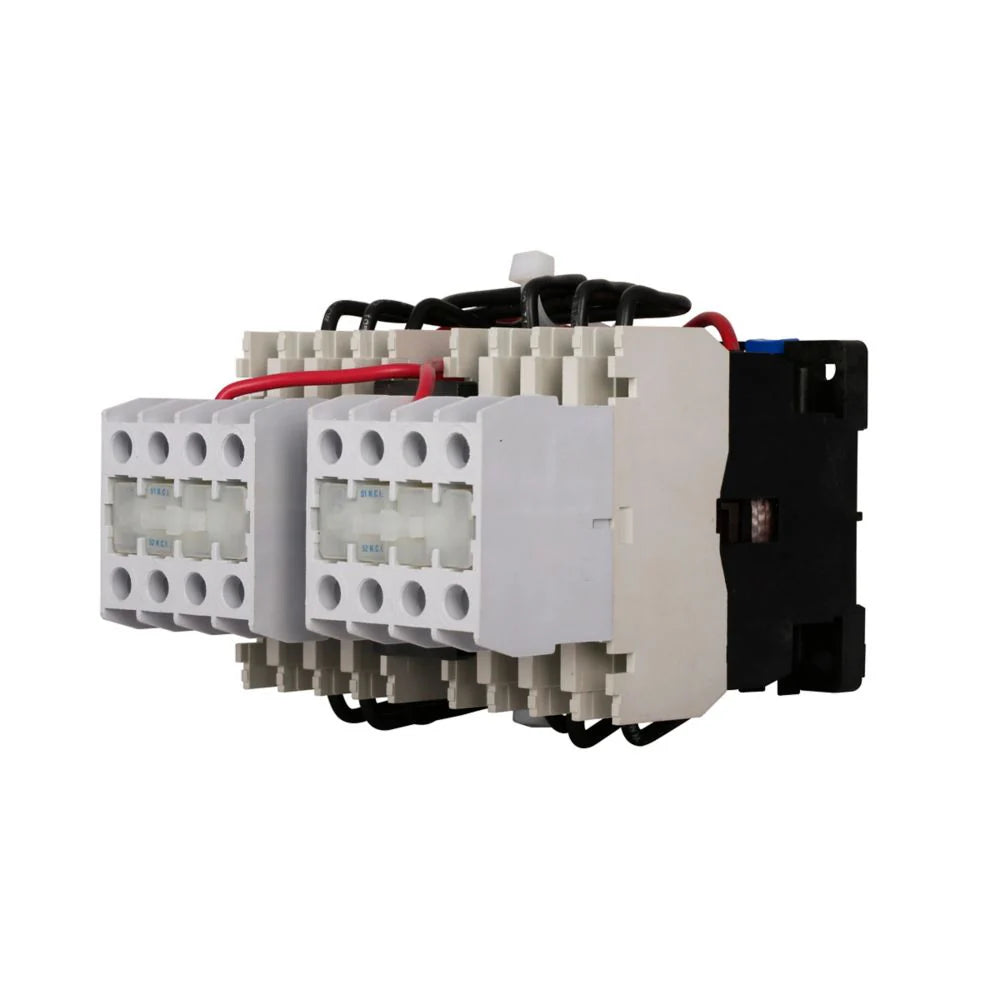

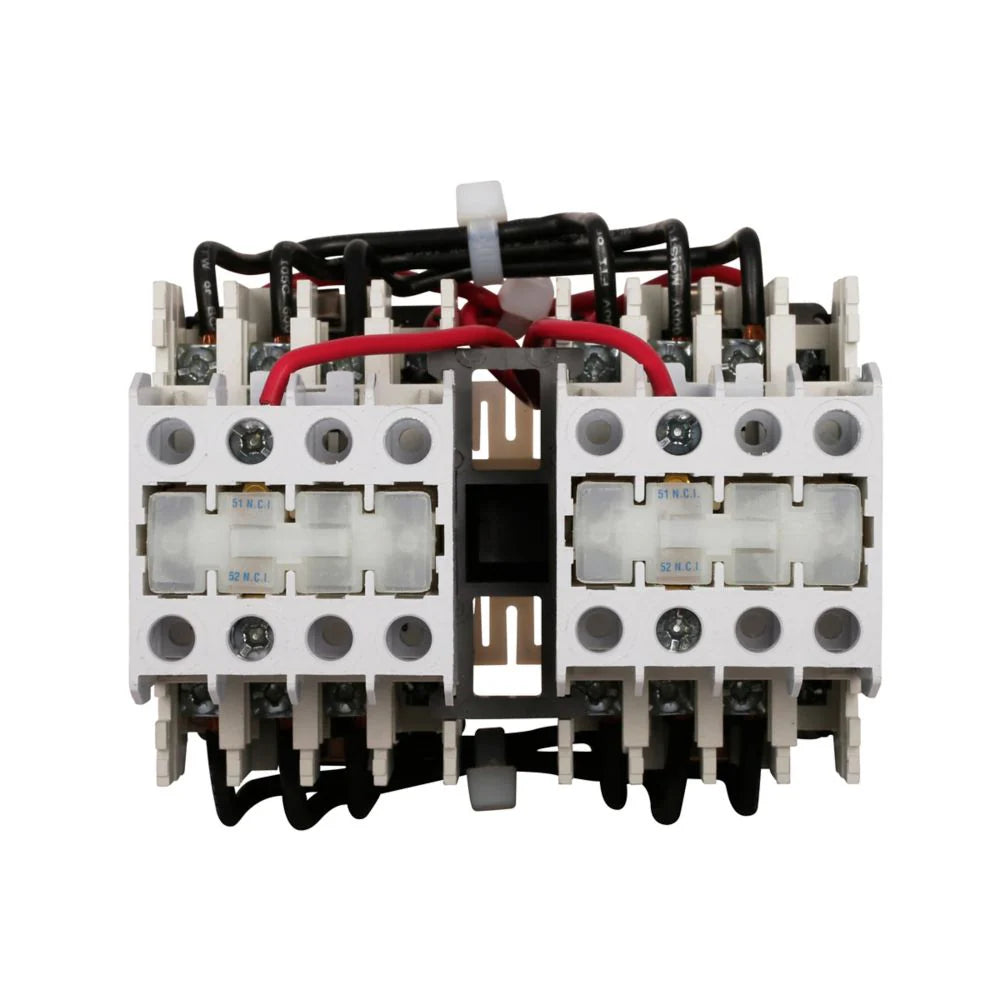

Eaton CE55DN3AB 18 Amp IEC Contactor – 3 Pole – 110–120 V AC Coil – Reversing – XT Series

The Eaton CE55DN3AB is an 18 Amp, 3-pole reversing IEC contactor from Eaton’s XT series. It features a 110–120 V AC coil rated for 50/60 Hz operation and includes one normally closed auxiliary contact. Designed for motor control applications, it supports a 1 HP rating and accommodates top-mounted auxiliary contacts. The contactor has a 55 mm frame size and is supplied without an overload relay.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: IEC Contactor
• Series: XT
• Catalog Number / MPN: CE55DN3AB
• Primary Rating: 18 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 110–120 V AC
• Coil Frequency: 50/60 Hz
• Auxiliary Contacts: 1 Normally Closed (NC)
• Auxiliary Contact Mounting: Top-Mounted
• Horsepower Rating: 1 HP
• Contactor Type: Reversing
• Frame: D
• Frame Size: 55 mm

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: CE55DN3AB
• Series: XT
• Frame: D
• Current Rating: 18 A
• Pole Count: 3 Pole
• Product Type: Reversing IEC Contactor
• Auxiliary Contacts: 1 NC
• UPC:782113780023

Compatibility

The Eaton CE55DN3AB is intended for compatible Eaton XT-series motor control assemblies requiring a three-pole reversing IEC contactor.
