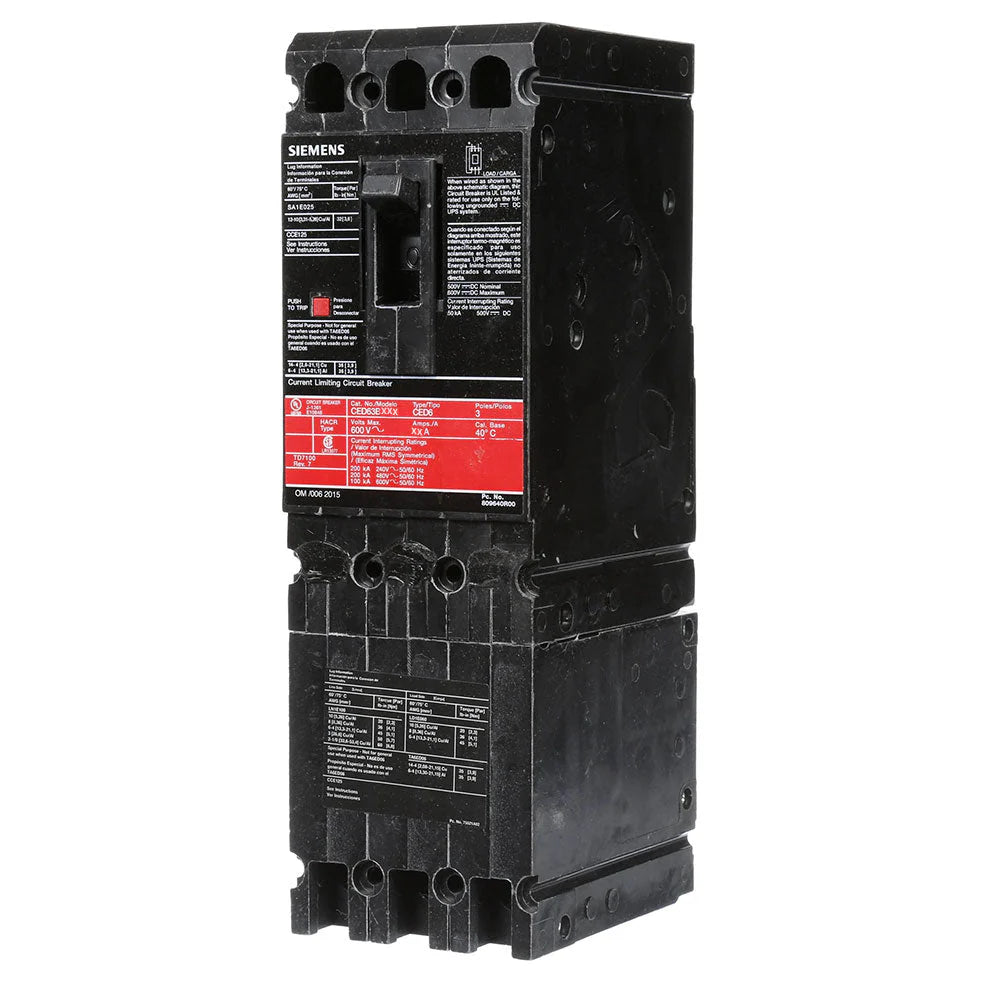

Siemens CED63B050L 50 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 200 kA@480 V – Feed-Thru – SENTRON Series

The Siemens CED63B050L is a 50 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens SENTRON Series, Type CED. It is rated for 600 V with a 200 kA interrupting rating at 480 V and features extra high interrupting capacity. The breaker uses thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions and is designed for feed-thru mounting with line and load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: CED
• Catalog Number / MPN: CED63B050L
• Primary Rating: 50 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 200 kA@480 V
• Interrupting Capacity: Extra High
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: CED63B050L
• Series: SENTRON
• Type: CED
• Current Rating: 50 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783643236714

Compatibility

The Siemens CED63B050L is designed for compatible Siemens SENTRON Type CED molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
