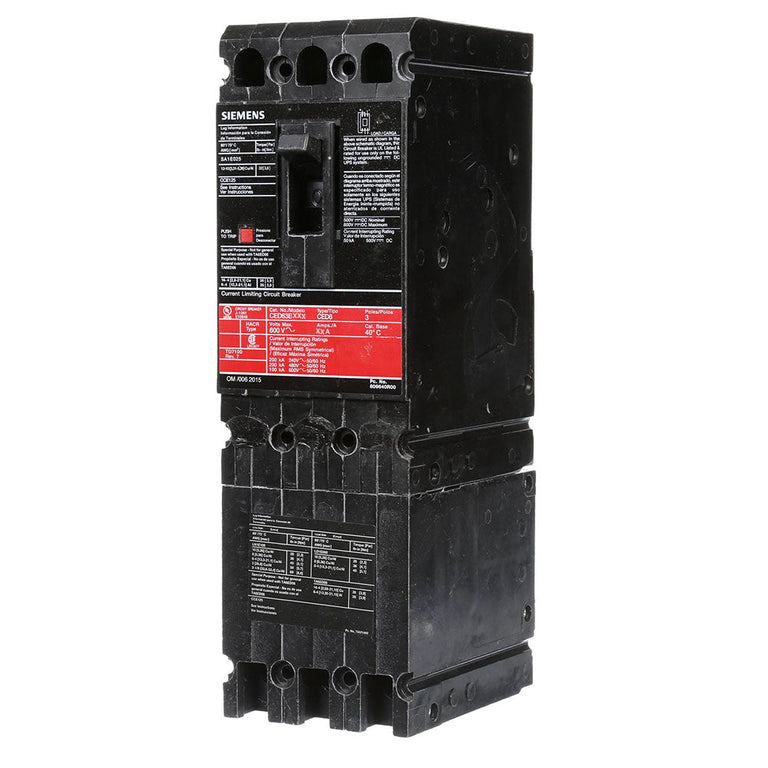

Siemens CED63B060 Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 600V – 200kA @ 480V – Bolt-On – Sentron CED Series

The Siemens CED63B060 is a 60A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type CED Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and is designed for compatible electrical distribution applications.

The CED63B060 is rated for 600V and provides an extra-high interrupting capacity of 200kA at 480V. It features a bolt-on mounting configuration, is calibrated for operation at 40°C, and is supplied as a complete breaker with load-side lug terminals.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: CED
• Type: CED
• Catalog No.: CED63B060
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 480V
• Interrupting Capacity: Extra High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CED63B060
• Catalog Number: CED63B060
• Model: CED63B060
• Product Family: Siemens Sentron Circuit Breakers
• Series: CED
• Type: CED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:783643210714

Compatibility:

Designed for use with compatible Siemens Sentron CED Series electrical distribution equipment that accepts CED Series bolt-on molded case circuit breakers. The CED63B060 provides 60A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features extra-high interrupting capacity, LI trip functions, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, temperature requirements, and installation requirements before installation.

Certifications:

• Siemens Sentron CED Series
• 60A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 200kA @ 480V Interrupting Rating
• Extra-High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• Complete Breaker
• Load-Side Lug Terminals
• 40°C Rated
