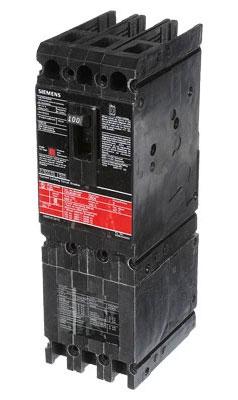

Siemens CED63B100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 200kA @ 480V – Bolt-On – Sentron CED Series

The Siemens CED63B100 is a 100A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Siemens Sentron CED Series. It is designed for compatible electrical distribution and overcurrent protection applications.

The CED63B100 is rated for 600V and provides an extra-high interrupting rating of 200kA at 480V. It features Long-Time and Instantaneous (LI) trip functions, a bolt-on mounting configuration, and load-side lug terminals. The breaker is rated for operation at 40°C and is supplied as a complete breaker.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: CED
• Type: CED
• Catalog No.: CED63B100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 480V
• Interrupting Capacity: Extra High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CED63B100
• Catalog Number: CED63B100
• Model: CED63B100
• Product Family: Siemens Sentron Circuit Breakers
• Series: CED
• Type: CED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Rated Voltage: 600V
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:783643210752

Compatibility:

Designed for use with compatible Siemens Sentron CED Series electrical distribution equipment that accepts CED Series molded case circuit breakers. The CED63B100 provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on mounting configuration, includes load-side lug terminals, and is supplied as a complete breaker with LI trip functions. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation specifications before installation.

Certifications:

• Siemens Sentron CED Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 200kA @ 480V Interrupting Rating
• Extra-High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• Load-Side Lug Terminals
• Complete Breaker
• 40°C Rated
