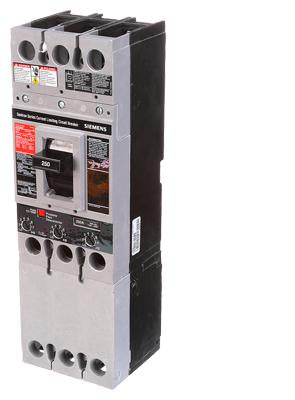

Siemens CFD63B250 250 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 200 kA@480 V – Bolt-On – SENTRON Series

The Siemens CFD63B250 is a 250 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type CFD. It is rated for 600 V with a 200 kA interrupting rating at 480 V and features current-limiting thermal-magnetic protection. The breaker is designed for 40°C applications with bolt-on mounting, a non-interchangeable trip unit, LI (Long-Time and Instantaneous) trip functions.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: CFD
• Catalog Number / MPN: CFD63B250
• Primary Rating: 250 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 200 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: CFD63B250
• Series: SENTRON
• Type: CFD
• Current Rating: 250 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Bolt-On
• UPC:783643212213

Compatibility

The Siemens CFD63B250 is designed for compatible Siemens SENTRON Type CFD electrical distribution applications.
