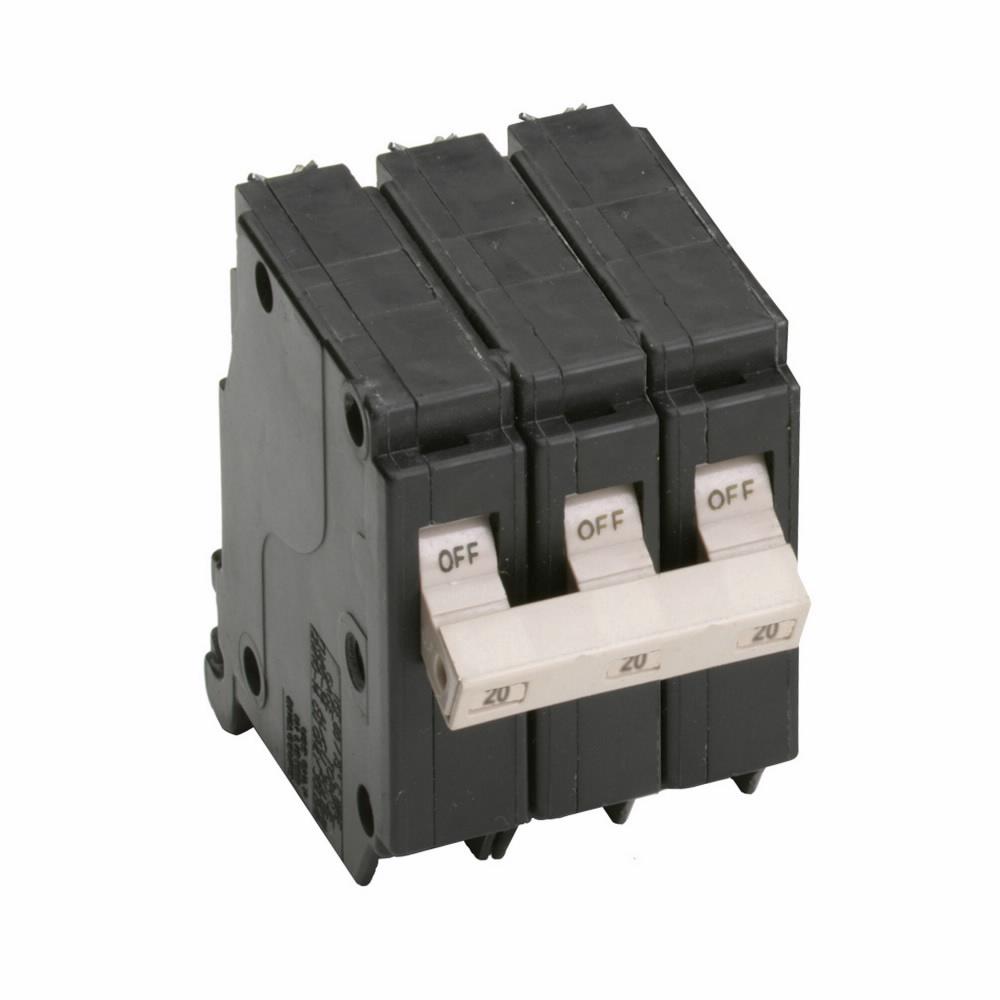

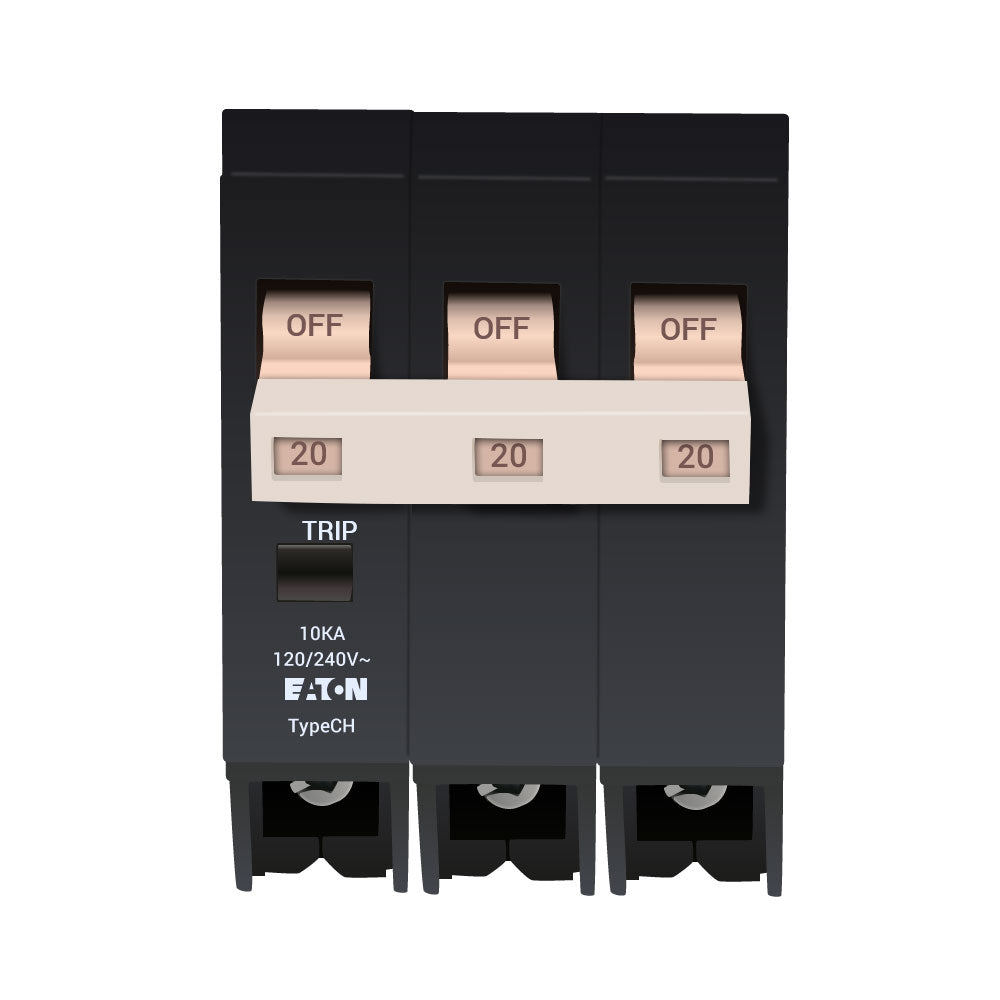

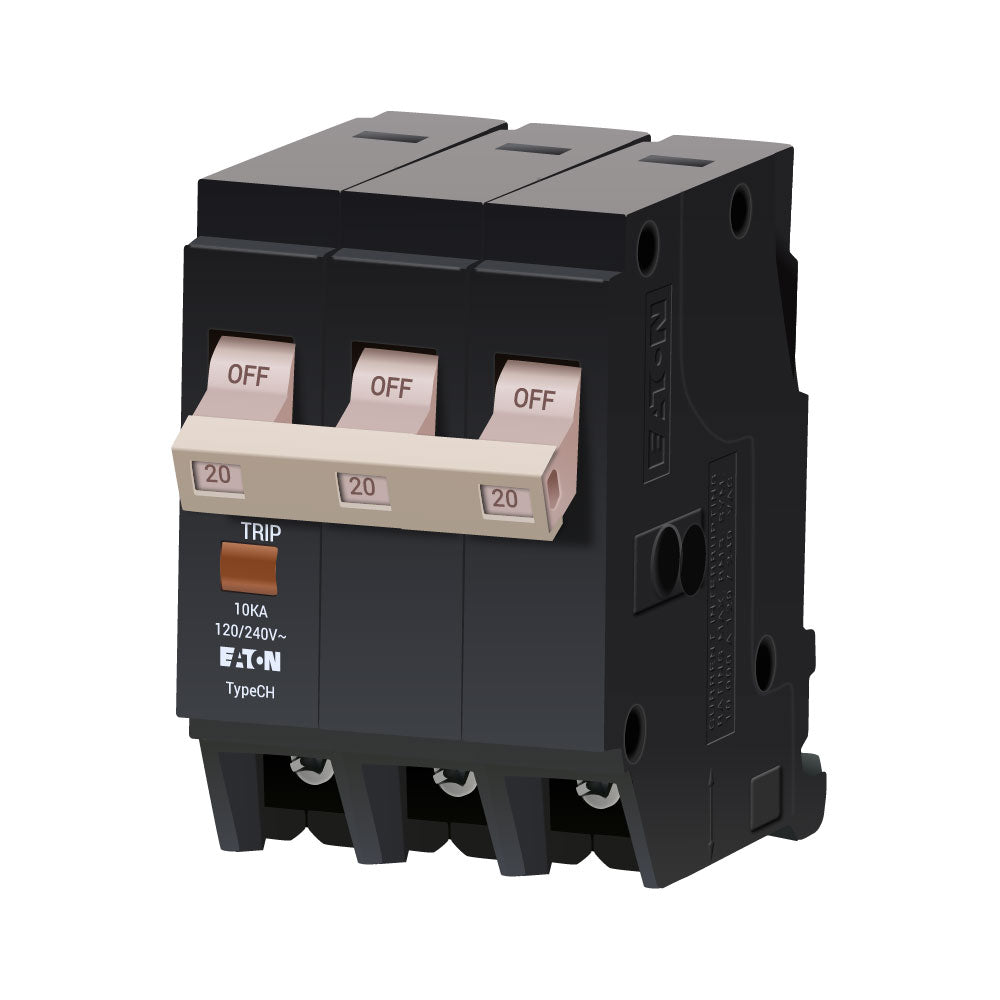

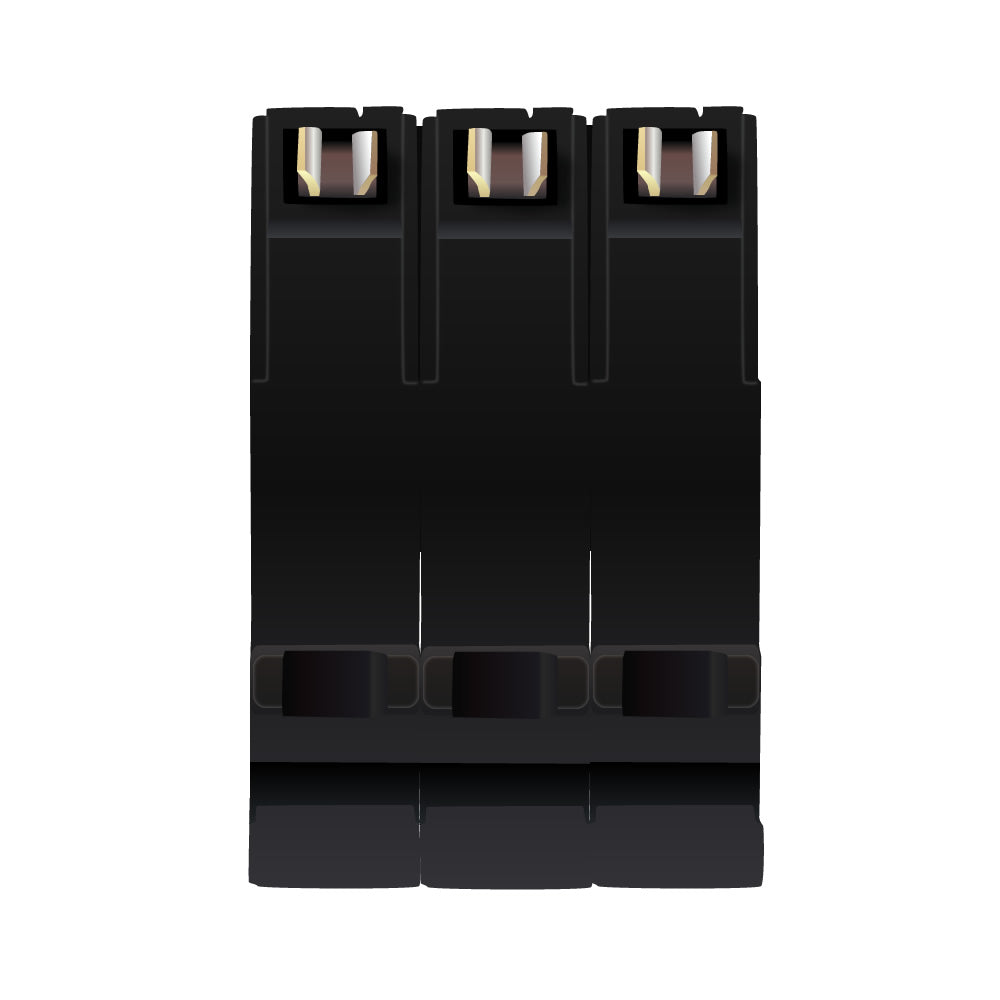

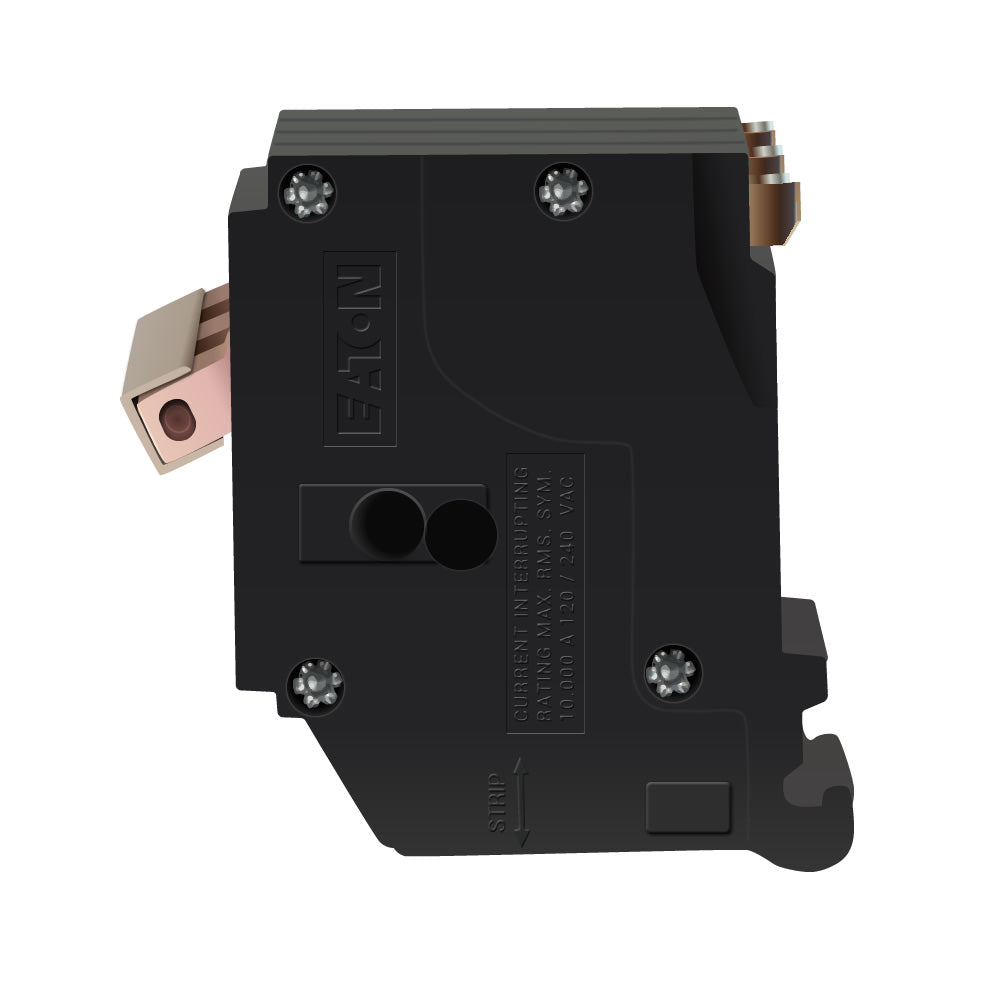

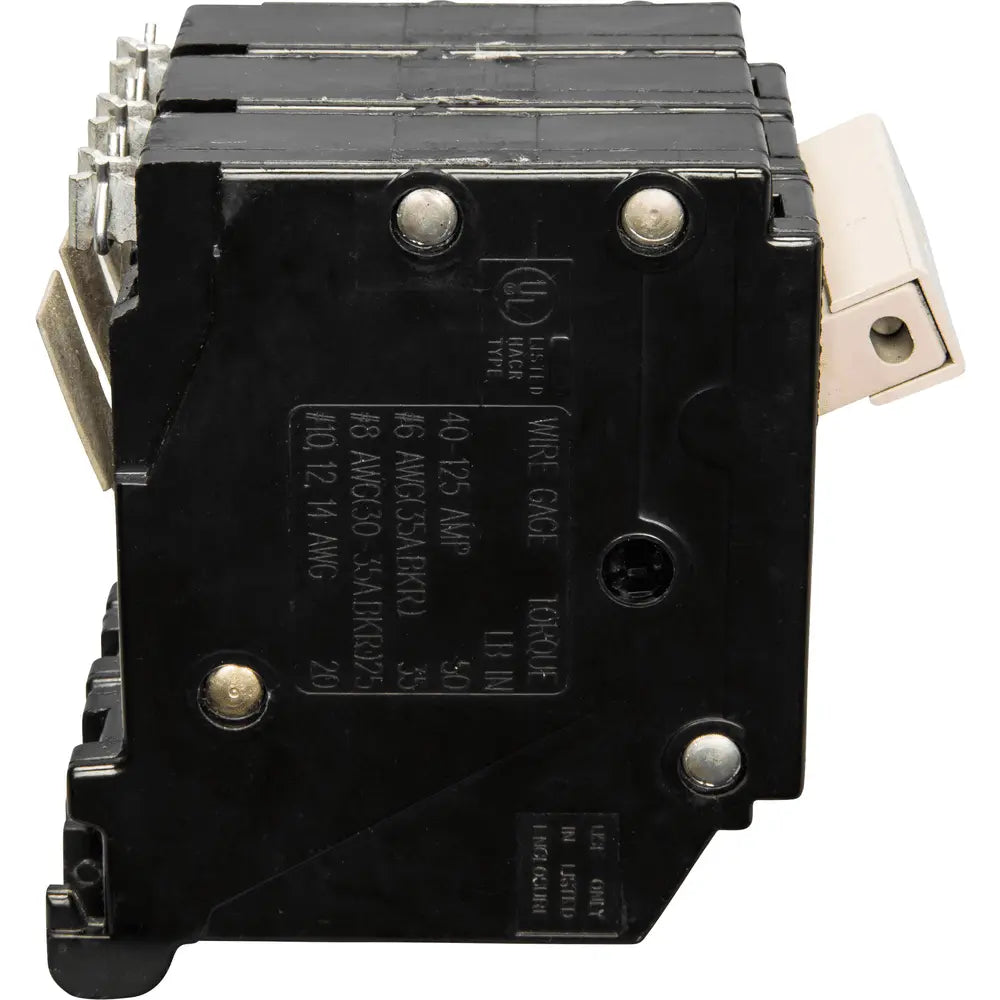

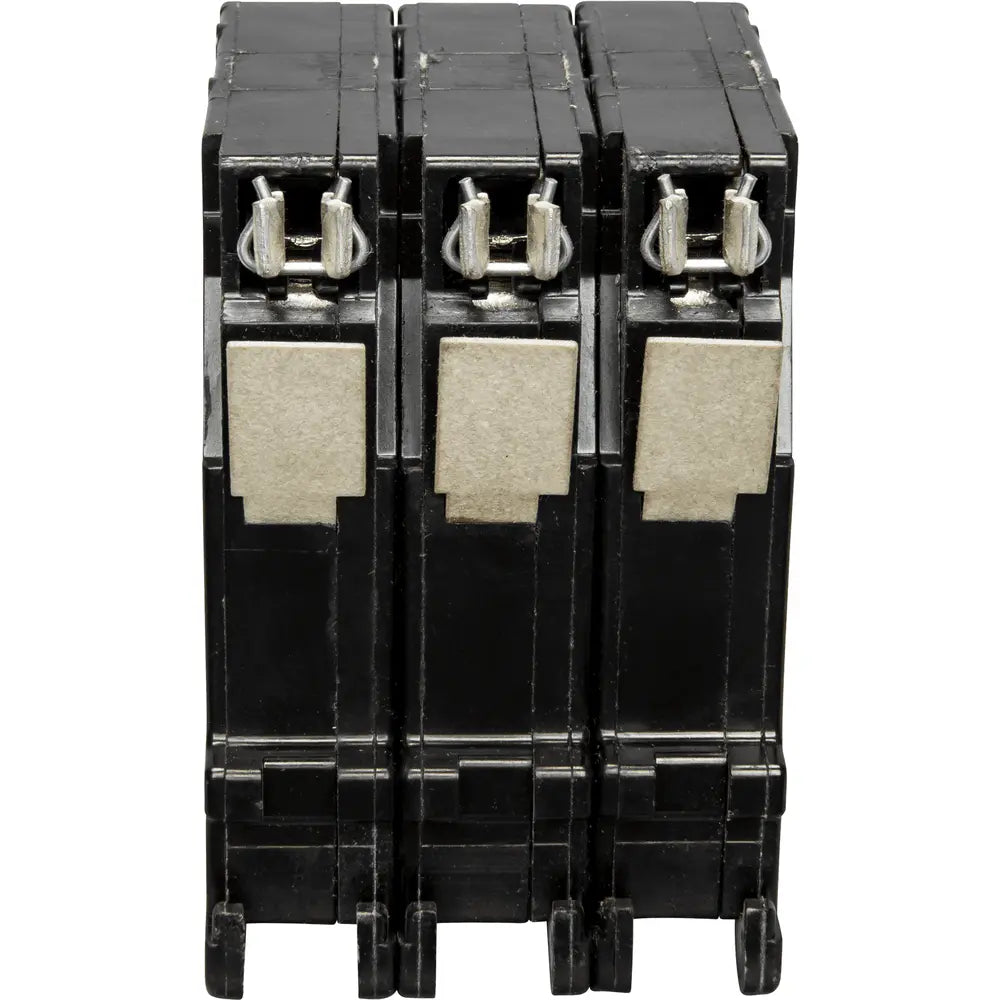

Eaton CH320 Circuit Breaker – 20A – 3-Pole – 240V – 10kAIC – Plug-In – Type CH Series

The Eaton CH320 is a 20A, 3-pole plug-in circuit breaker from the Eaton Cutler-Hammer Type CH Series. It features thermal-magnetic protection and a molded-case design for reliable branch circuit protection. The breaker is rated for 240VAC, provides 10 kAIC interrupting capacity, and uses a common-trip mechanism. It accommodates 14–6 AWG copper or aluminum conductors and is designed for compatible Type CH loadcenters.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Standard Circuit Breaker
• Product Name: Type CH 3/4-Inch Standard Circuit Breaker
• Catalog No.: CH320
• Series: Type CH
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Protection Type: Thermal-Magnetic
• Trip Type: Common Trip
• Connection Type: Plug-In
• Interrupting Rating: 10 kAIC
• Wire Size: #14–6 AWG Copper/Aluminum
• Panel Space: Three 3/4-Inch Spaces
• Ratings: HACR Rated
• Application: Branch Circuit Protection
• Used With: Type CH Loadcenters
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton/Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CH320
• Catalog Number: CH320
• Product Family: Type CH Circuit Breakers
• Series: Type CH
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Plug-In Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• Model: CH320

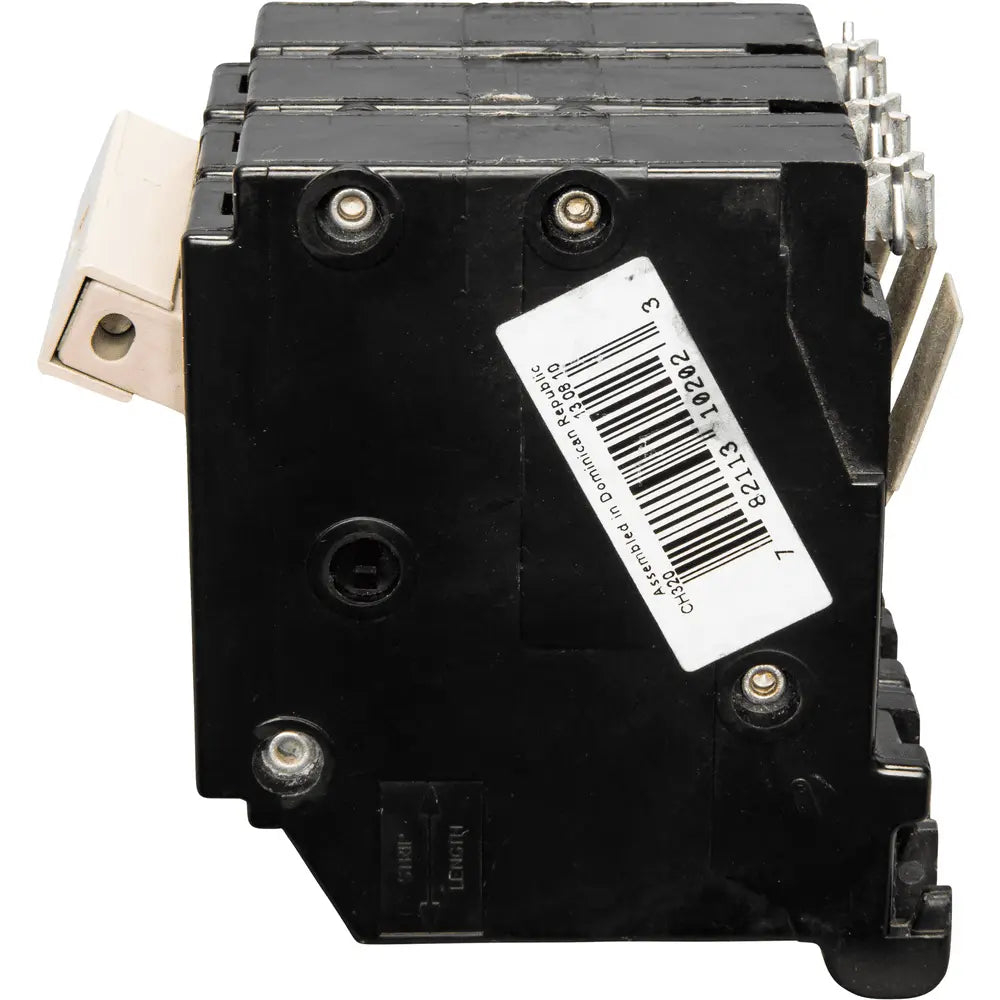

• upc:782113102023

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Type CH loadcenters that accept CH Series plug-in circuit breakers. The CH320 is a 3-pole, 20A, 240V common-trip breaker requiring three 3/4-inch spaces and accommodates #14–6 AWG copper or aluminum conductors.

Always verify the specific loadcenter model, approved breaker type, system voltage, pole configuration, interrupting rating, conductor size, and installation requirements before installation.

Certifications:

• UL 489 Listed
• CSA Certified
• HACR Rated
• 20A Rated
• 3-Pole / 3-Phase
• 240V AC Rated
• 10 kAIC Interrupting Rating
• Thermal-Magnetic Protection
• Common Trip
• Plug-In Mounting
• Genuine Eaton / Cutler-Hammer Product
