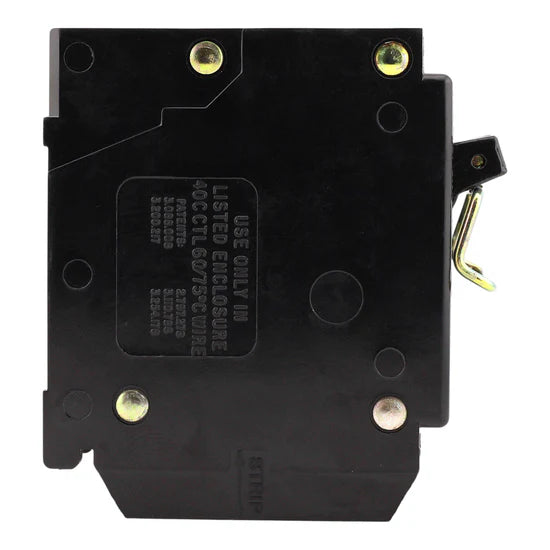

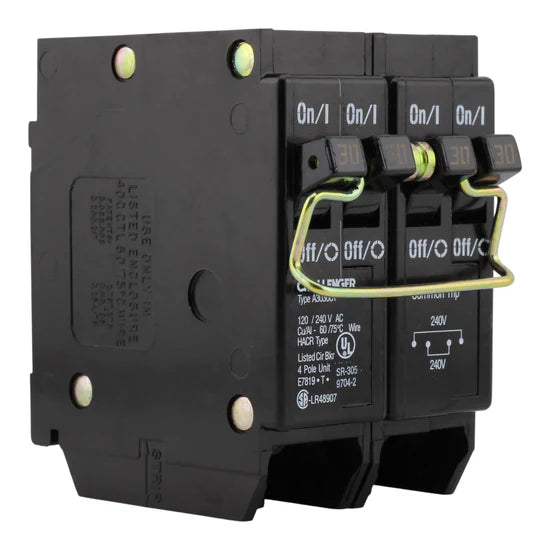

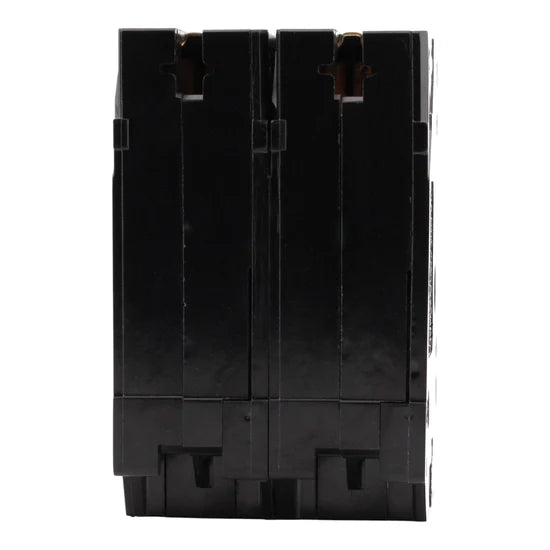

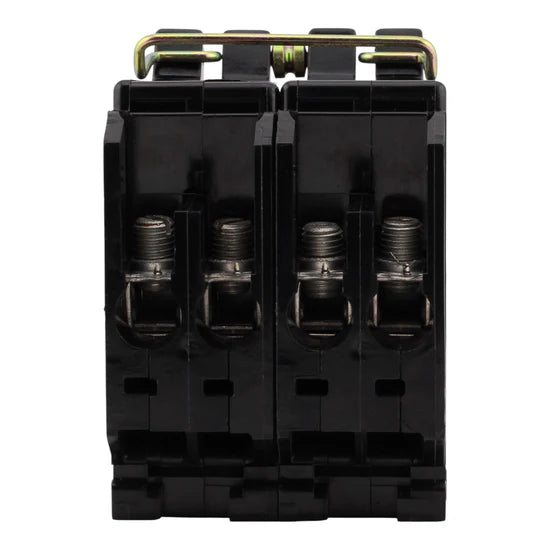

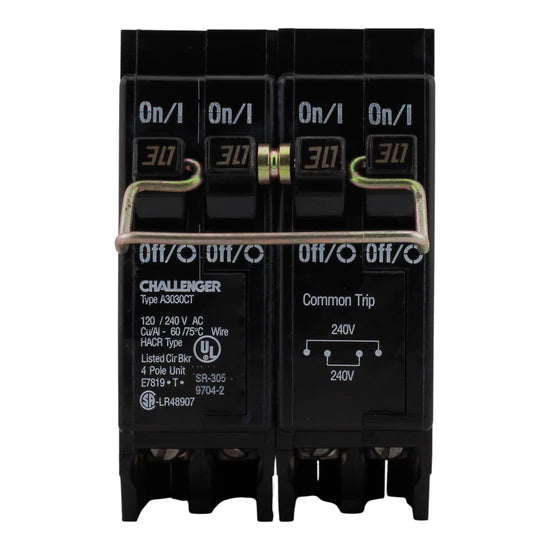

The Challenger A3030CT is a 30/30 Amp, 4-pole quad tandem circuit breaker designed for 120/240V AC circuits in Challenger loadcenters. Featuring standard thermal-magnetic trip technology and HACR rating, it provides reliable overcurrent protection for commercial and industrial applications. The plug-in mounting and compatible terminals allow quick installation, while supporting wire sizes from #14–4 AWG Cu/Al for secure and safe electrical connections.
Electrical Ratings:
- Amperage: 30/30 Amps
- Voltage: 120/240V AC
- Interrupt Rating: 10 kAIC
- Frequency: 50/60 Hz
Key Specifications:
- Breaker Type: Standard Thermal Magnetic
- Poles: 4-Pole
- Product Range: Challenger Type A
- Mounting Mode: Plug-In
- Terminal Type: Plug-In
- Application: Commercial and industrial overcurrent protection
- Special Rating: HACR Rated
Technical Specifications:
- Wire Size: (1) #14–4 AWG Cu/Al
- Tightening Torque: 25 lb-in
- Dimensions: 3.4" H × 2.0" W × 2.9" D
- Weight: 0.7 lbs
- Certifications: UL Listed, HACR Rated
Product Data:
- Manufacturer: Challenger
- Brand: Challenger
- Model Number: A3030CT
- UPC: Not specified
