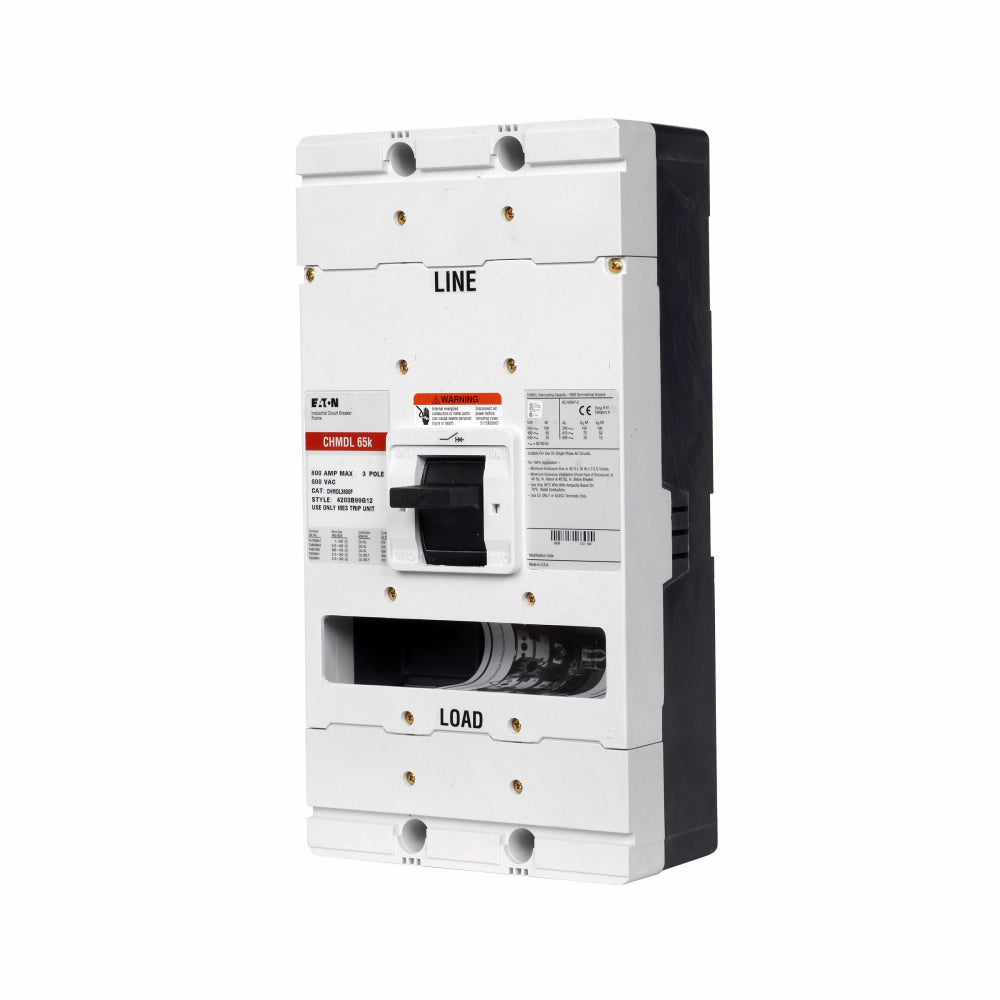

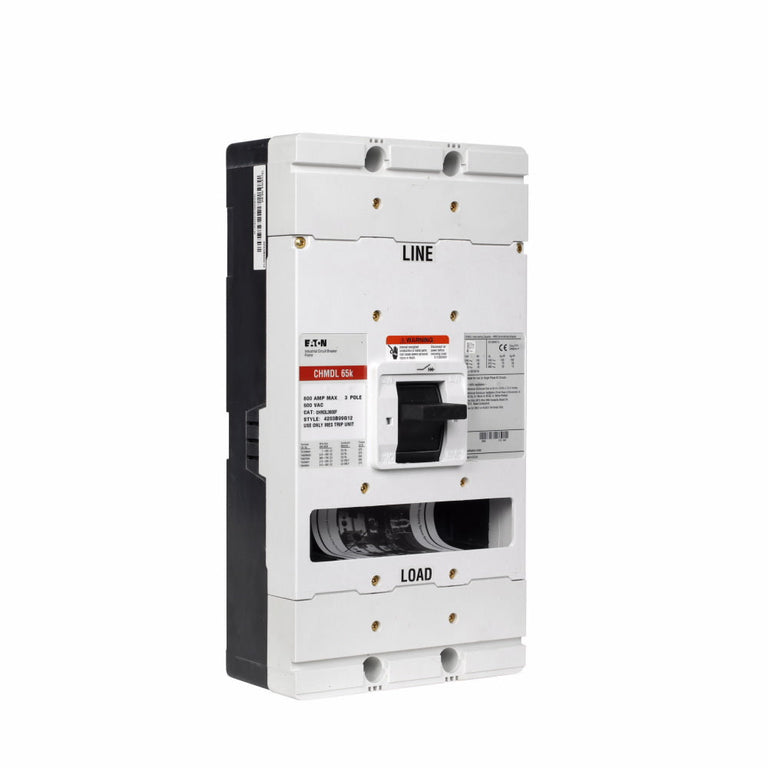

Eaton CHMDL3800F Molded Case Circuit Breaker Frame – 800A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Series C CHMDL

The Eaton CHMDL3800F is an 800A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton / Cutler-Hammer / Westinghouse Series C Type CHMDL. It is specified as 100% rated and designed for compatible electrical distribution applications.

The CHMDL3800F is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on configuration and is supplied as a frame only, without a complete trip assembly.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: Series C
• Type: CHMDL
• Catalog No.: CHMDL3800F
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Rating: 100% Rated
• Mounting / Configuration: Bolt-On
• Breaker Configuration: Frame Only
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CHMDL3800F
• Catalog Number: CHMDL3800F
• Model: CHMDL3800F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: CHMDL
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 800A
• Configuration: Frame Only
• UPC:782114367001

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer / Westinghouse Series C Type CHMDL electrical distribution equipment and associated components required to complete the circuit breaker assembly
