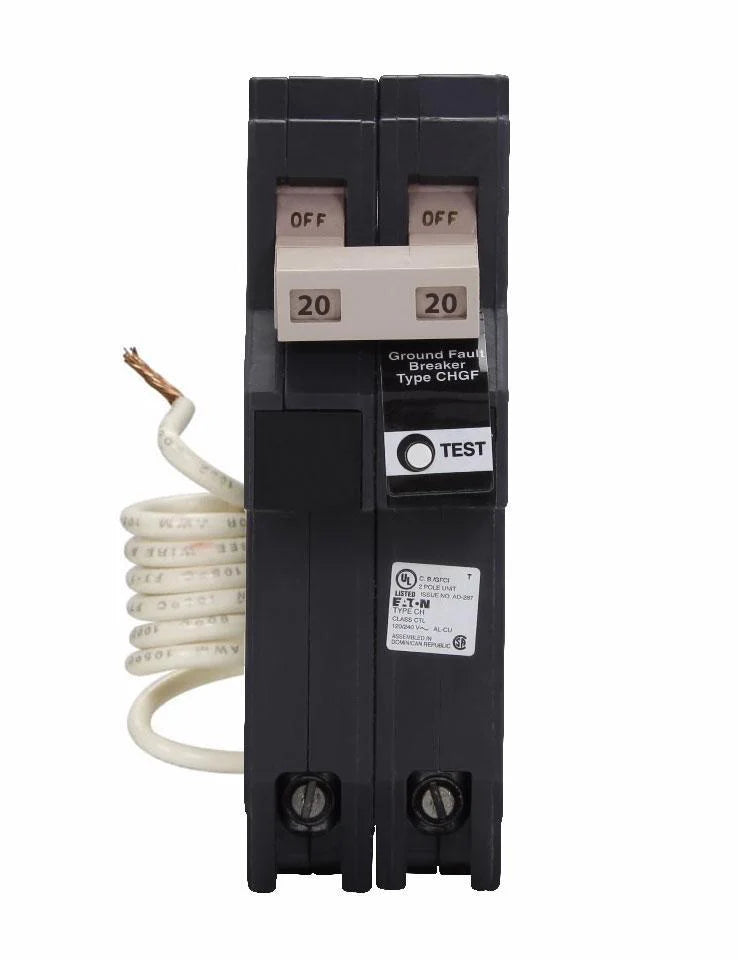

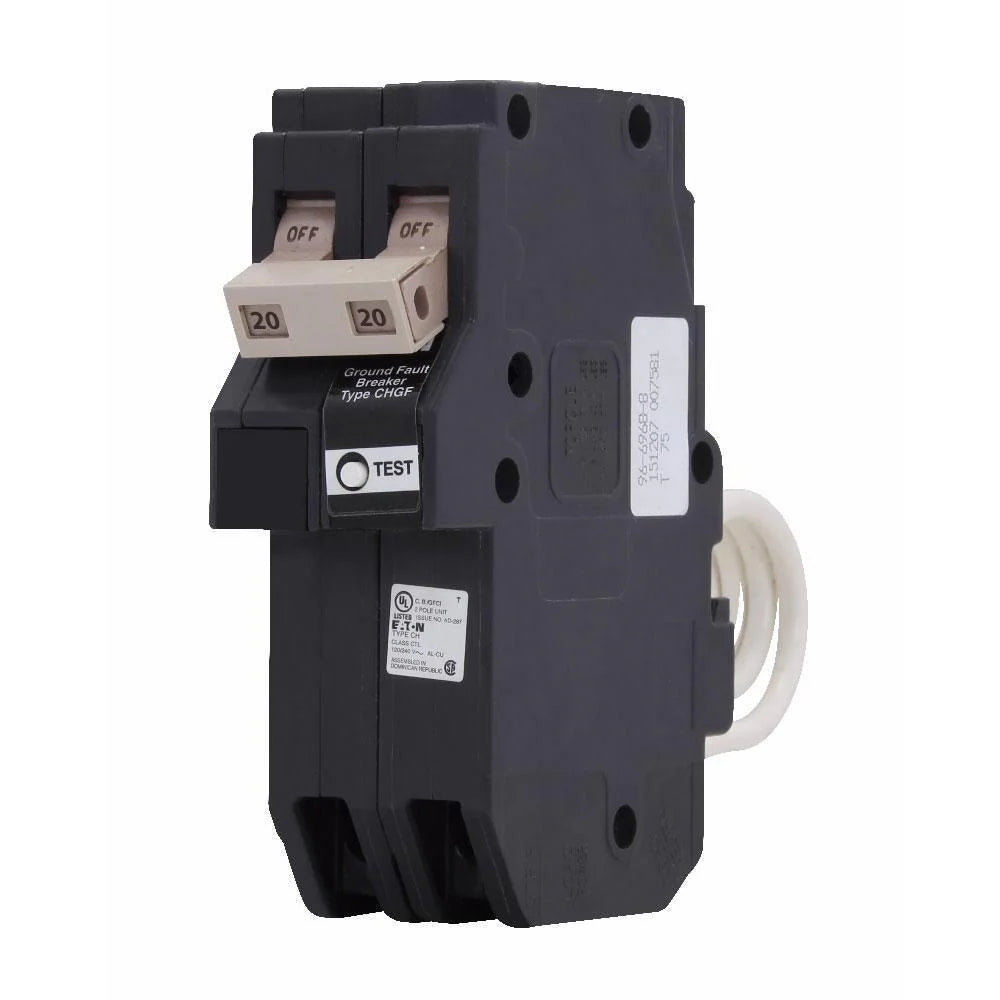

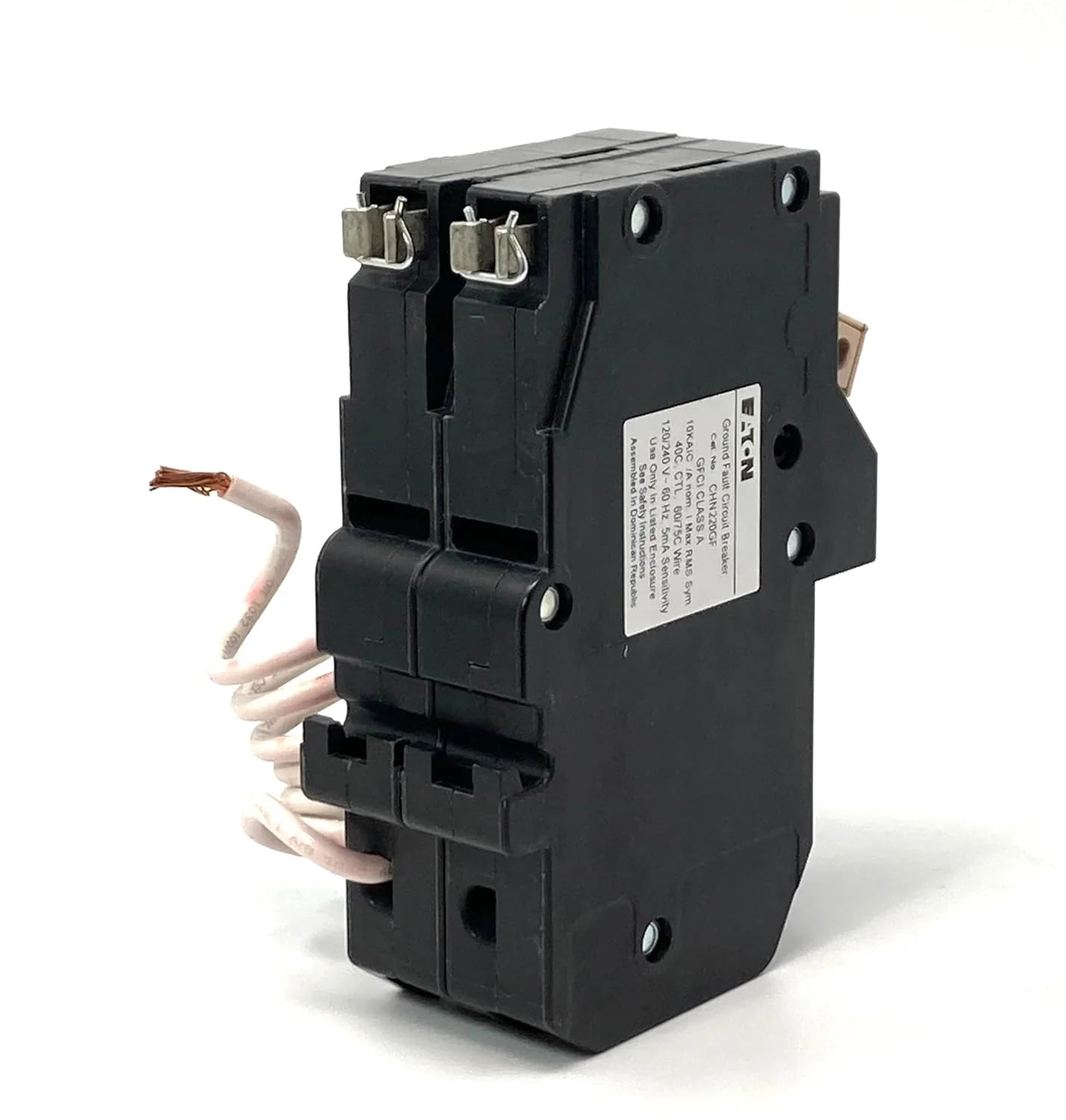

CHN220GF - Eaton - 2P- 20 Amp Ground Fault Breaker

The Eaton CHN220GF 20 Amp double-pole GFCI (Ground Fault Circuit Interrupter) breaker delivers reliable ground-fault protection for residential and light commercial 120/240V electrical systems. Designed for Eaton CH load centers, it features a plug-in mounting style and a pigtail neutral connection for easy installation and secure operation.

With a 10kA interrupt rating, this breaker protects circuits from overloads, short circuits, and ground faults, enhancing the safety of your electrical system. UL 489 and CSA certifications ensure compliance with recognized safety standards.

Voltage & Rating

• Current Rating: 20 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Ground Fault Circuit Interrupter (GFCI)
• Number of Poles: 2-Pole
• Mounting Type: Plug-In
• Connection Type: Pigtail Neutral
• Application: Residential and light commercial branch circuit protection
• Certifications: UL 489, CSA Certified

Technical Specifications

• Wire Size: #14–6 AWG Copper/Aluminum

• Operating Temperature: -10°C to +60°C

• Operating Mechanism: Thermal-magnetic with integrated GFCI protection

Product Data

• • Manufacturer: Eaton
  • Model Number: CHN220GF
  • Weight: 0.8 lb
