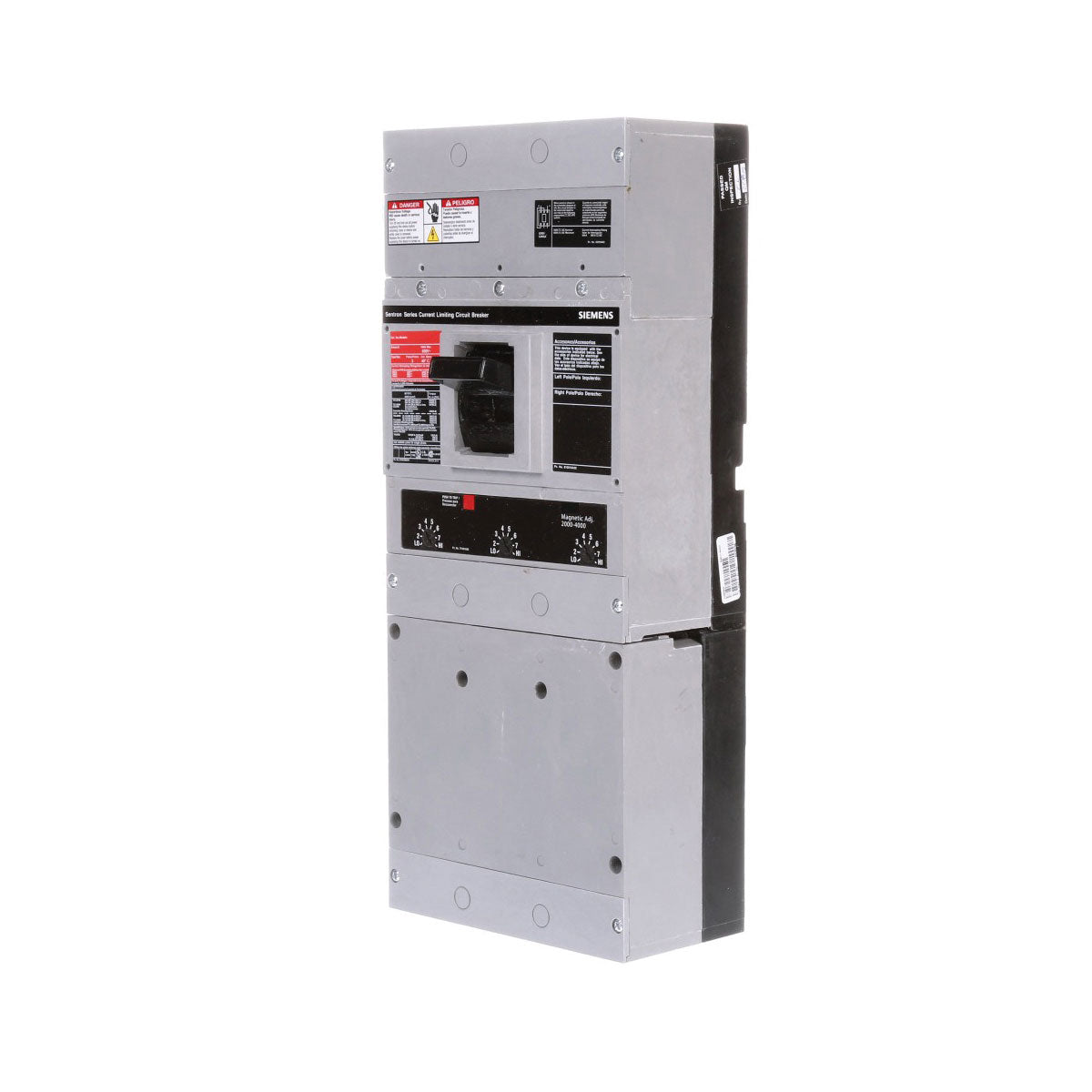

Siemens CJD63L400 400 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 150 kA@480 V – Bolt-On – SENTRON Series

The Siemens CJD63L400 is a 400 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type CJD. It is rated for 600 V with a 150 kA interrupting rating at 480 V and features fuseless current-limiting magnetic-only protection. The breaker is designed for bolt-on mounting, with instantaneous-only protection, a low instantaneous range. It is configured as an MCP (Motor Circuit Protector) with an adjustable magnetic range of 1250–2500A.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: CJD
• Catalog Number / MPN: CJD63L400
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 150 kA @ 480 V
• Interrupting Capacity: Fuseless Current Limiting
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Instantaneous Range: Low
• Magnetic Range: 1250–2500 A
• Connection / Mounting: Bolt-On
• Application: MCP – Motor Circuit Protector

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: CJD63L400
• Series: SENTRON
• Type: CJD
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Molded Case Circuit Breaker
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 1250–2500 A
• Application: MCP – Motor Circuit Protector
• Connection: Bolt-On
• UPC:783643213661

Compatibility

The Siemens CJD63L400 is designed for compatible Siemens SENTRON Type CJD motor circuit protection and electrical distribution applications.
