Eaton CKD3400F Molded Case Circuit Breaker Frame – 400A – 3-Pole / 3-Phase – 600V AC – 35kAIC @ 480V / 25kAIC @ 600V – Frame Only – Series C CKD

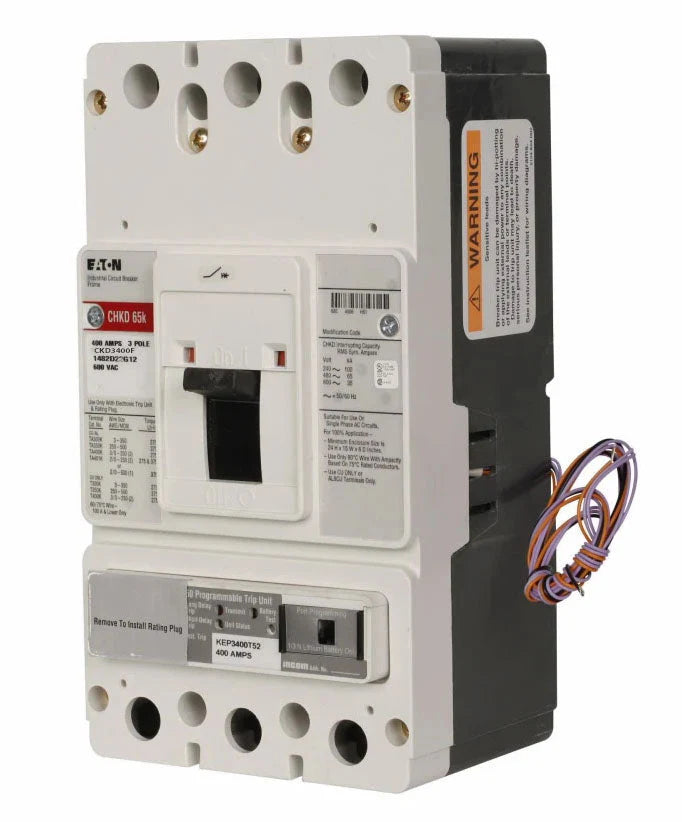

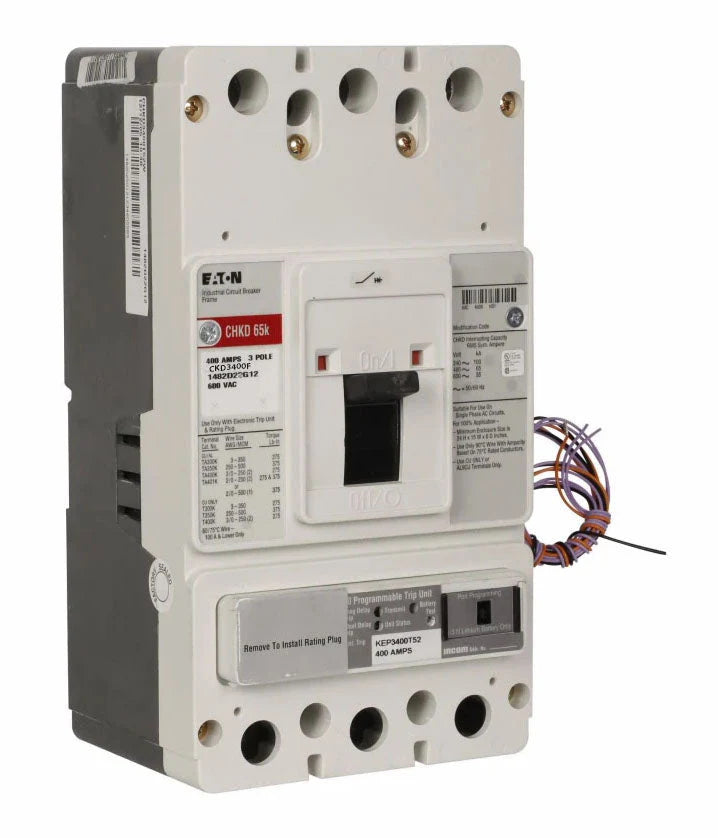

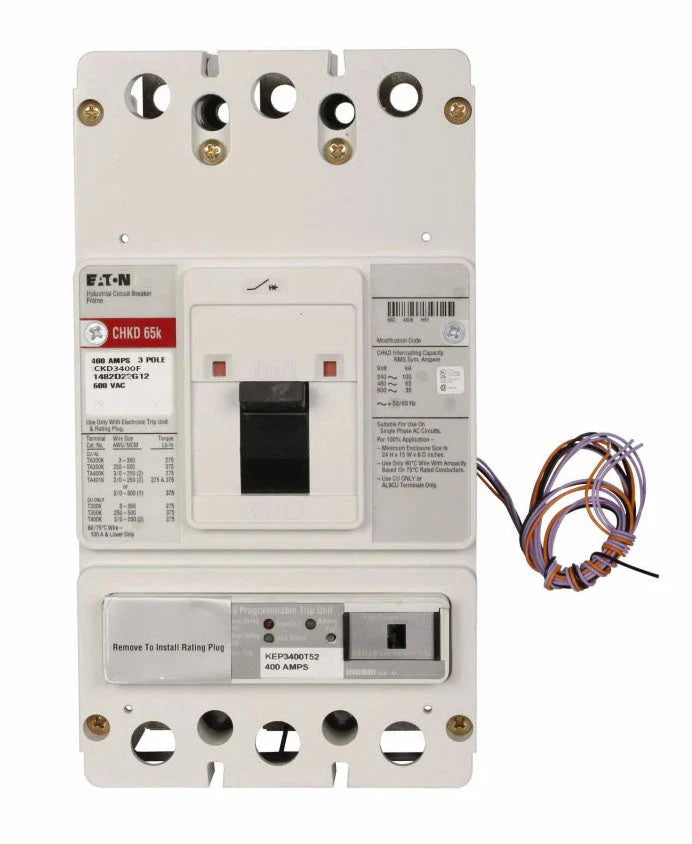

The Eaton CKD3400F is a 400A, 3-pole molded case circuit breaker frame from the Eaton Series C Type CKD K-Frame. It is supplied as a frame only and features fixed thermal and fixed magnetic trip protection.

The CKD3400F is rated for 600V AC and 250V DC and provides interrupting ratings of 35kAIC at 480V AC and 25kAIC at 600V AC. It operates at 50/60Hz and is 100% rated for compatible applications.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: Series C
• Type: CKD
• Frame: K-Frame
• Catalog No.: CKD3400F
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: Not specified
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 35kAIC @ 480V AC; 25kAIC @ 600V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Configuration: Frame Only
• Frequency: 50/60Hz
• Rating: 100% Rated
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CKD3400F
• Catalog Number: CKD3400F
• Model: CKD3400F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: CKD
• Frame: K-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: 3-Pole, 400A
• Trip Configuration: Fixed Thermal and Fixed Magnetic
• UPC:786679346402

Compatibility:

Designed for use with compatible Eaton Series C Type CKD K-Frame electrical distribution equipment and applicable breaker assemblies. The CKD3400F is supplied as a frame only, with fixed thermal and fixed magnetic trip characteristics.

The frame supports 600V AC and 250V DC applications and is 100% rated. Always verify the specific electrical equipment model, approved frame/breaker configuration, system voltage, available fault current, pole configuration, trip characteristics, accessories, and assembly requirements before installation.

Certifications:

• Series C CKD
• K-Frame
• 400A Rated
• 3-Pole
• 600V AC Rated
• 250V DC Rated
• 35kAIC @ 480V AC
• 25kAIC @ 600V AC
• Fixed Thermal Trip
• Fixed Magnetic Trip
• 100% Rated
• 50/60Hz
• Frame Only
