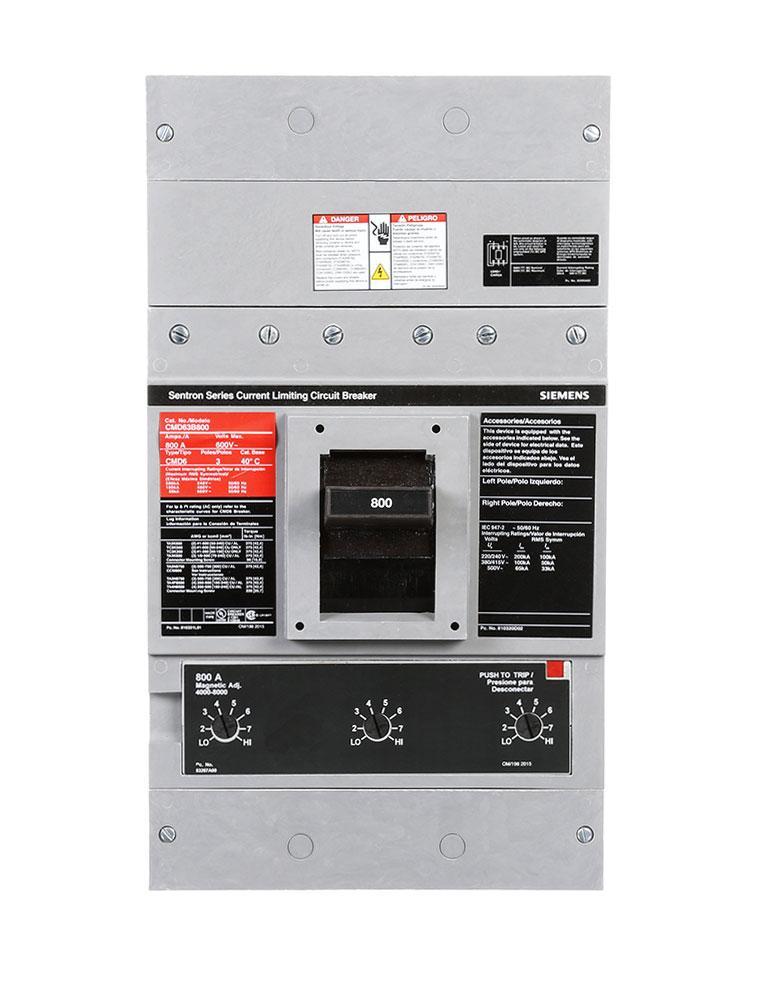

Siemens CMD63L800 800A 3-Pole Sentron MD Frame 100kA Instantaneous Trip Circuit Breaker

Product Description

The Siemens CMD63L800 is an 800 Amp, 3-pole Sentron MD-frame molded case circuit breaker featuring an adjustable instantaneous magnetic trip.

Designed for motor circuit applications, the CMD63L800 provides short-circuit protection and features a low instantaneous trip range. It is a current-limiting breaker with high interrupting capacity.

Key Features

• Siemens
• Sentron Series
• Type CMD6
• MD Frame
• 800 Amp
• 3 Pole
• Instantaneous Magnetic Trip
• Low Instantaneous Trip Range
• Adjustable Trip Range
• Current Limiting
• 100kAIC @ 480VAC
• 65kAIC @ 600VAC
• 50/60 Hz
• No Lugs Installed
• UL 489
• IEC 60947-2

Technical Specifications

Manufacturer: Siemens
Catalog Number: CMD63L800
Series: Sentron
Type: CMD6
Frame: MD
Amperage: 800A
Poles: 3
Frequency: 50/60 Hz
Trip Type: Instantaneous Magnetic
Instantaneous Trip: Adjustable
Trip Range: 3000–6000A
Interrupting Rating @ 480VAC: 100kAIC
Interrupting Rating @ 600VAC: 65kAIC
Terminals / Lugs: No Lugs Installed
Application: Motor Circuit Protection
Standard: UL 489 / IEC 60947-2

Product Data

Brand: Siemens
Manufacturer: Siemens
MPN: CMD63L800
UPC: 783643215290
GTIN: 00783643215290
Country of Origin: Mexico
