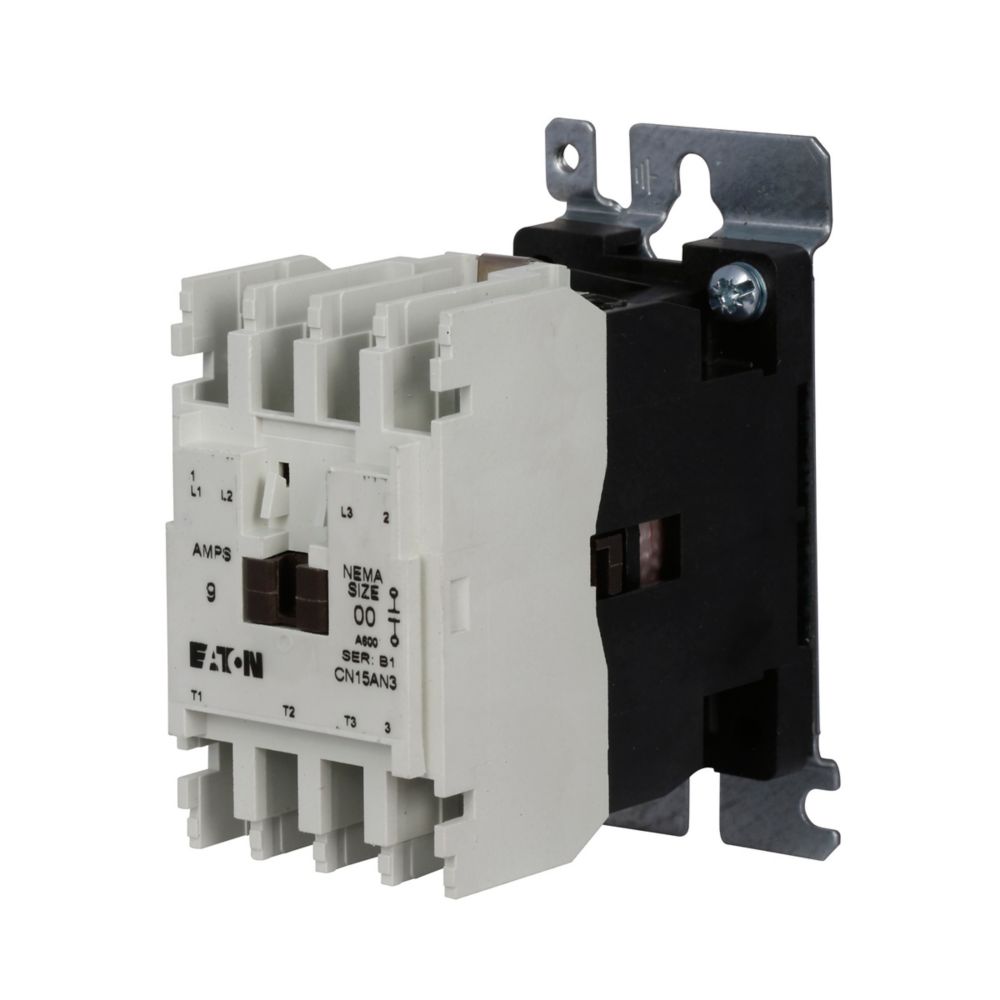

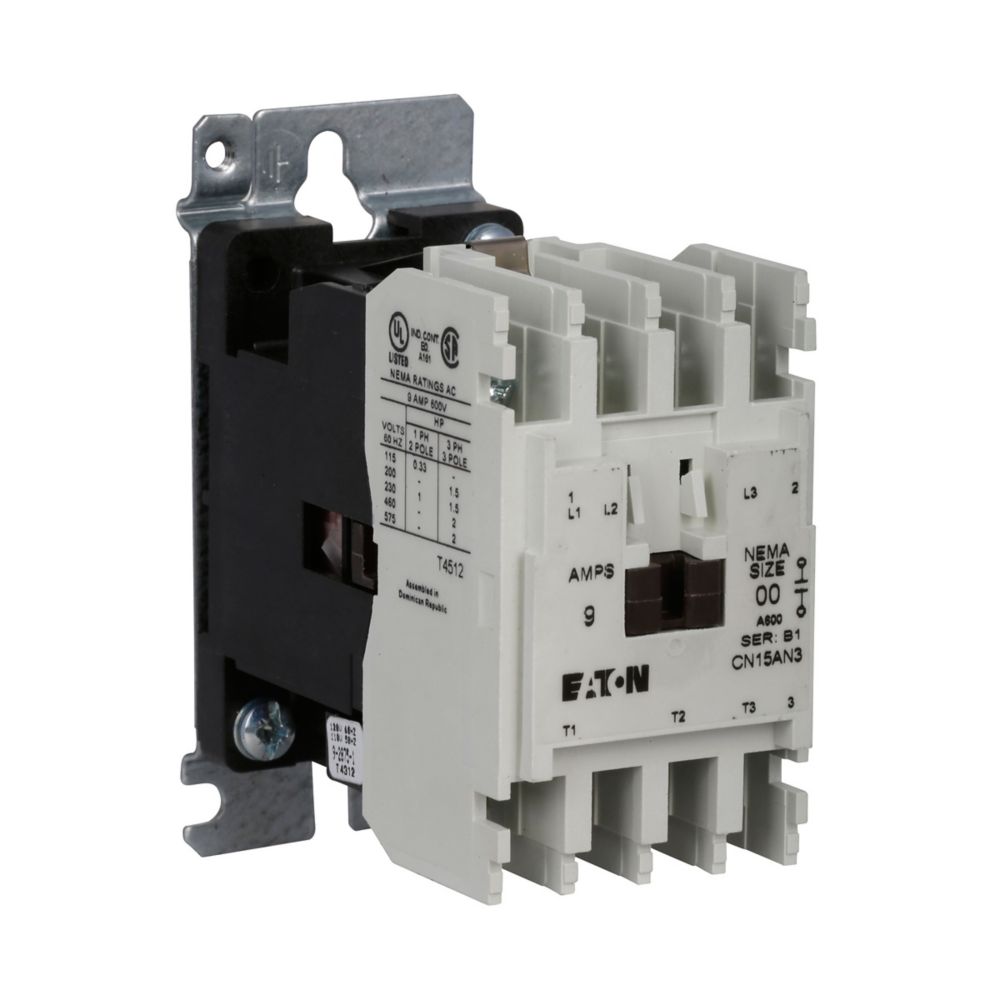

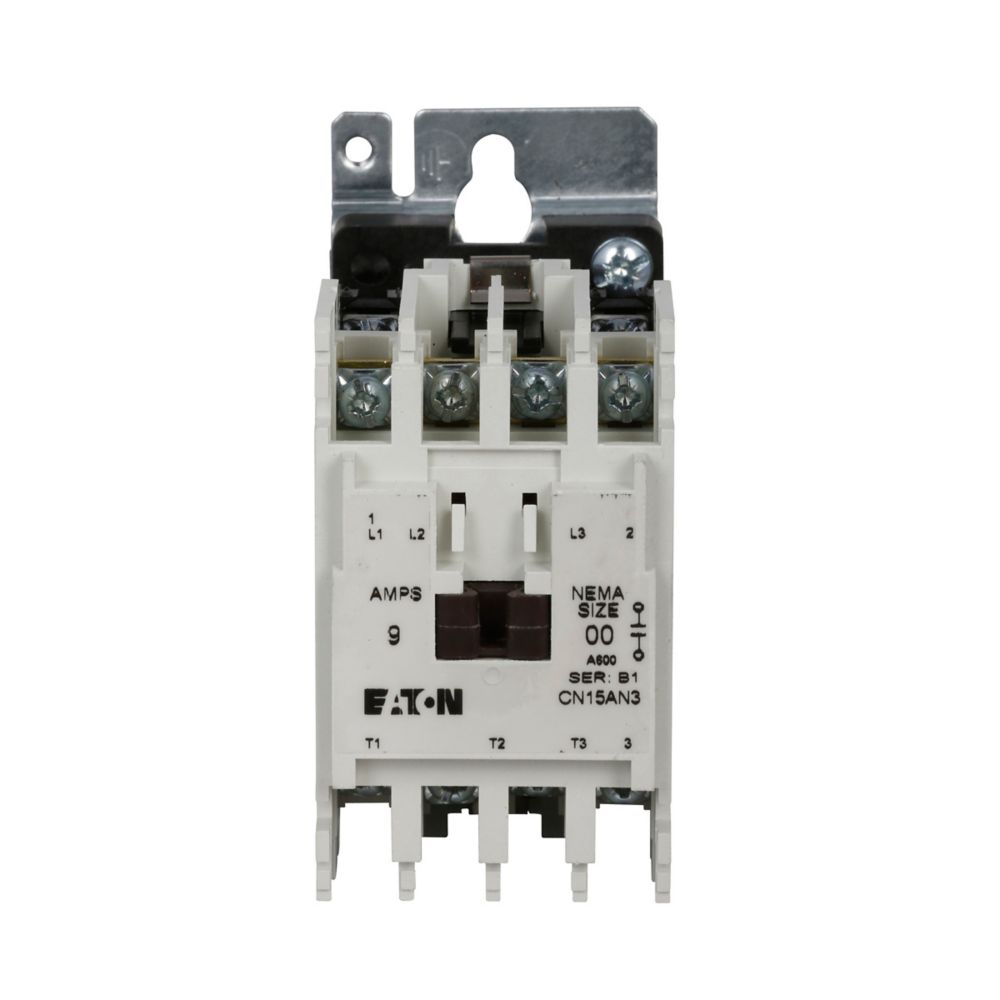

Eaton CN15AN3CB 9 Amp NEMA Contactor – 3 Pole – 480 V AC Coil – NEMA Size 00 – Freedom Series – Non-Reversing

The Eaton CN15AN3CB is a 9 Amp NEMA motor control contactor from the Eaton Cutler-Hammer Freedom Series. It features a three-pole configuration, a non-reversing design, and a coil rated for 480 V AC at 60 Hz or 440 V AC at 50 Hz. It is designed for motor control applications with horsepower ratings dependent on supply voltage.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: NEMA Motor Control Contactor
• Series: Freedom
• Catalog Number / MPN: CN15AN3CB
• Primary Rating: 9 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 480 V AC at 60 Hz / 440 V AC at 50 Hz
• NEMA Size: Size 00
• Reversing Type: Non-Reversing
• Maximum Horsepower Ratings:
  • 1/3 HP at 115 V
  • 1 HP at 230 V
  • 1.5 HP at 208/240 V
  • 2 HP at 480/600 V

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: CN15AN3CB
• Series: Freedom
• Current Rating: 9 A
• Pole Count: 3 Pole
• Product Type: NEMA Non-Reversing Contactor
• NEMA Size: Size 00
• UPC:782113777177

Compatibility

The Eaton CN15AN3CB is intended for compatible Eaton Freedom Series motor control and non-reversing starter applications.
