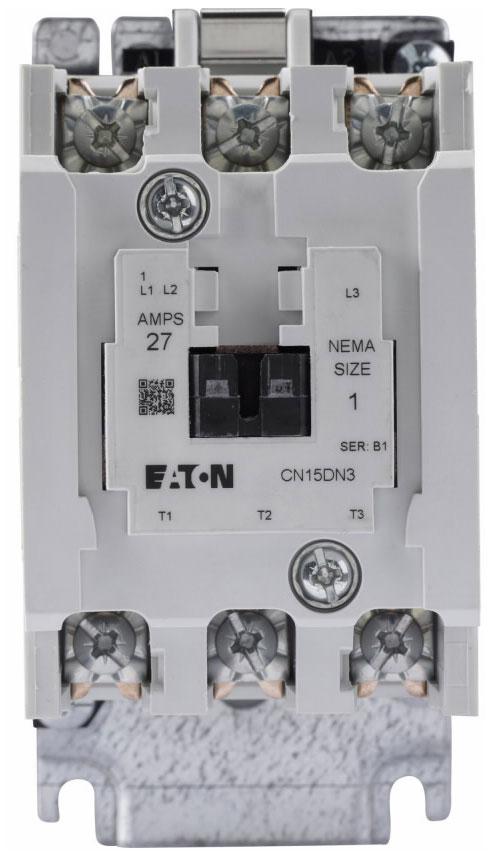

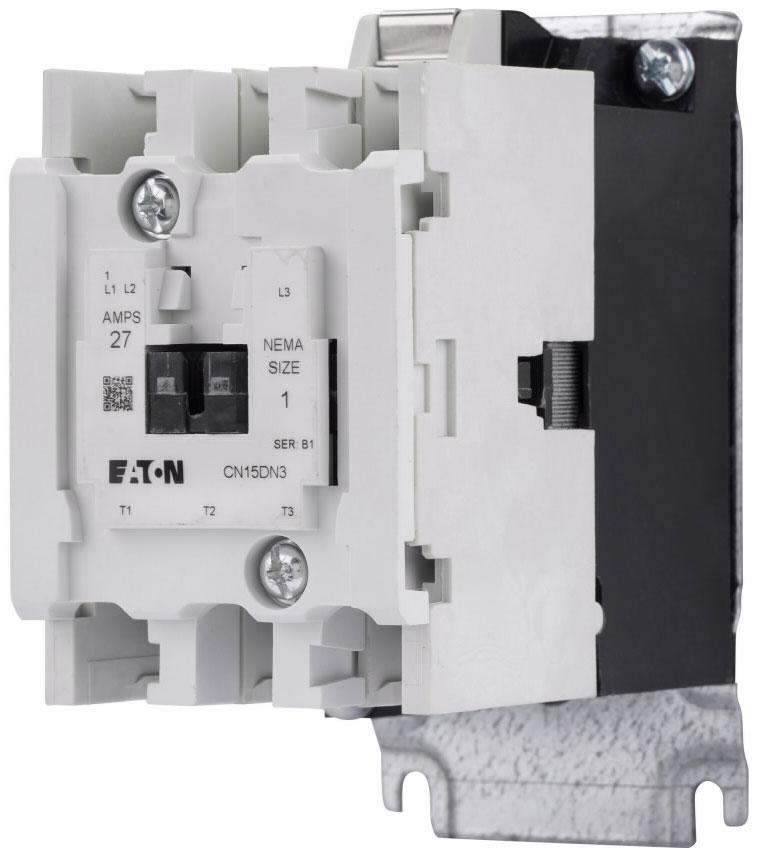

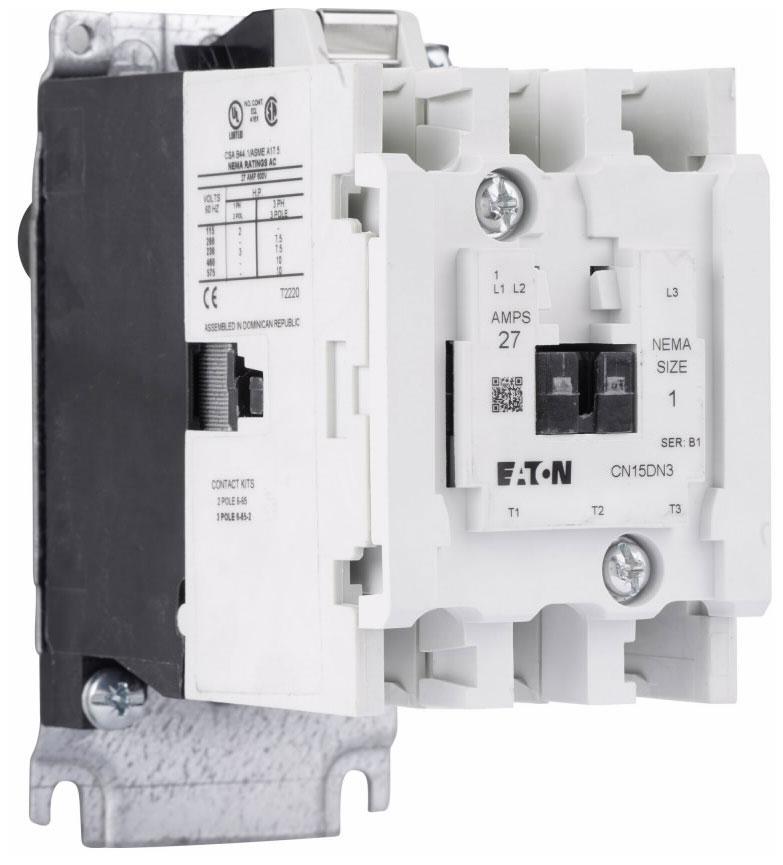

Eaton CN15DN3AB Magnetic Contactor – 27A – 3-Pole – 600V – 10HP @ 600V 3-Phase – NEMA Size 1 – Freedom Series

The Eaton CN15DN3AB is a 27A, 3-pole magnetic contactor from the Cutler-Hammer Freedom Series, Type CN15DN. It is a non-reversing NEMA Size 1 contactor designed for compatible motor control applications and can be used in 1-phase or 3-phase systems.

The contactor is rated up to 600V and supports motor loads including 2HP @ 115V 1-phase, 3HP @ 230V 1-phase, 7.5HP @ 208/240V 3-phase, and 10HP @ 480/600V 3-phase. It includes an AC coil rated 110V at 50Hz or 120V at 60Hz.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Contactor
• Product Name: Freedom Series Magnetic Contactor
• Series: Freedom
• Type: CN15DN
• Current Rating: 27A
• Number of Poles: 3-Pole
• Phase: 1-Phase or 3-Phase
• Voltage Rating: 600V
• Contactor Type: Non-Reversing
• NEMA Size: Size 1
• Coil Type: AC Coil
• Coil Voltage: 110V @ 50Hz / 120V @ 60Hz
• Motor Rating: 2HP @ 115V 1-Phase; 3HP @ 230V 1-Phase; 7.5HP @ 208V 3-Phase; 7.5HP @ 240V 3-Phase; 10HP @ 480V 3-Phase; 10HP @ 600V 3-Phase; 10HP @ 380V 50Hz
• Application: Motor Control Systems
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton / Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CN15DN3AB
• Catalog Number: CN15DN3AB
• Product Family: Cutler-Hammer Freedom Motor Control
• Series: Freedom
• Type: CN15DN
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Model: CN15DN3AB
• Configuration: 3-Pole, 27A
• NEMA Size: Size 1
• upc:782113973524

Compatibility:

Designed for use with compatible Cutler-Hammer / Eaton Freedom Series motor control systems. The CN15DN3AB is a non-reversing, NEMA Size 1 contactor suitable for compatible 1-phase and 3-phase motor control applications up to 600V.

Always verify the specific motor controller or starter, load voltage, motor horsepower, phase configuration, coil voltage and frequency, and contactor ratings before installation.

Certifications:

• Freedom Series
• NEMA Size 1
• 27A Rated
• 3-Pole
• 600V Rated
• Non-Reversing
• AC Coil
• 110V @ 50Hz / 120V @ 60Hz Coil
• Genuine Eaton / Cutler-Hammer Product
