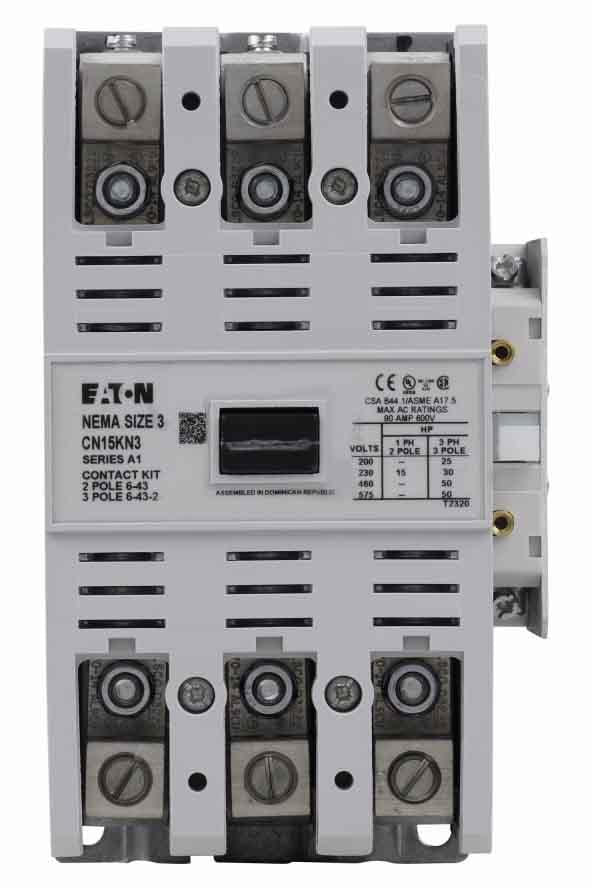

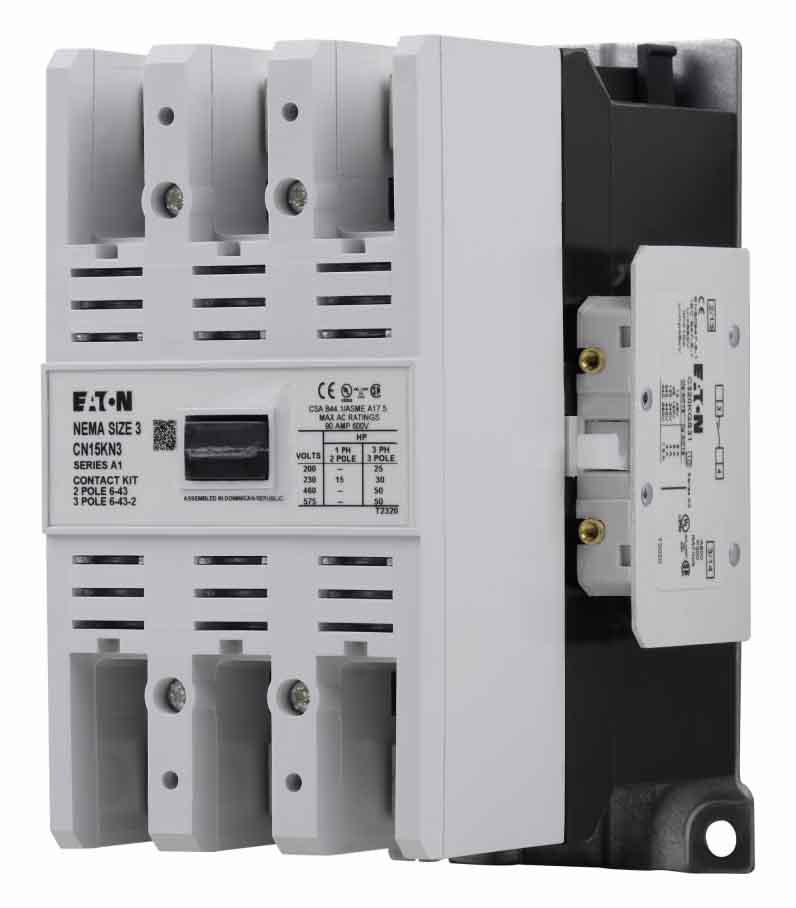

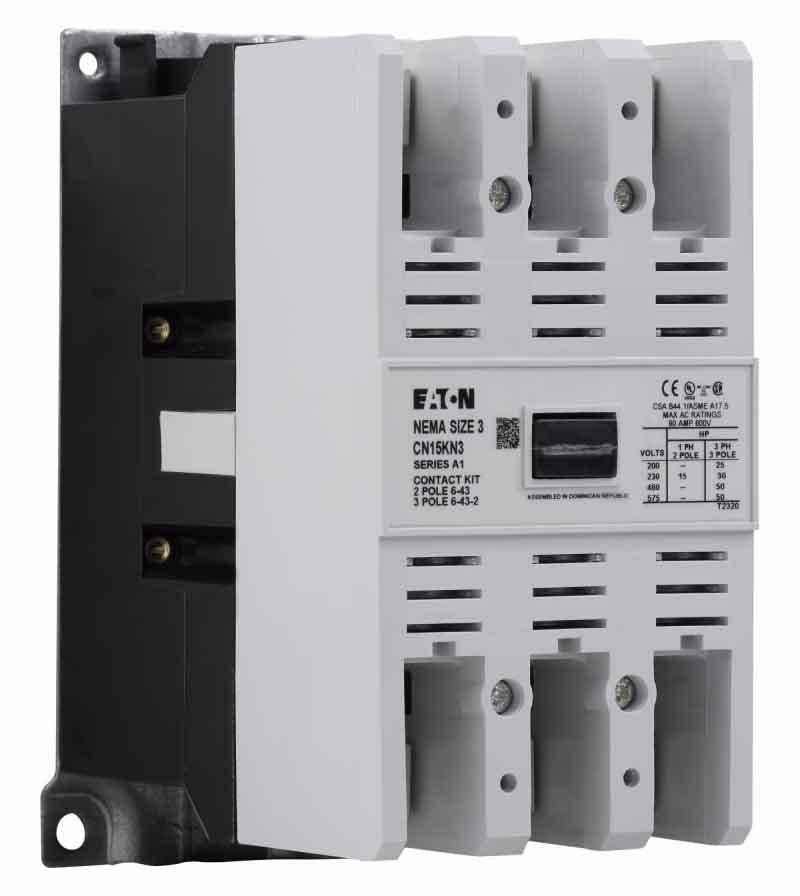

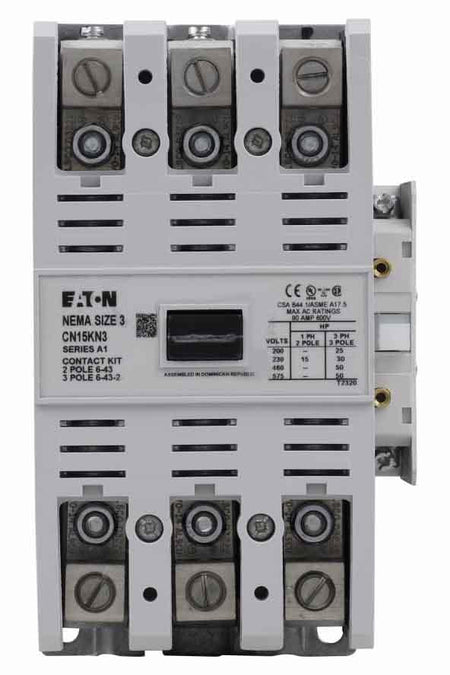

Eaton CN15KN3C Magnetic Contactor – 90 Amp – 2 Pole – 480/440 V Coil – NEMA Size 3 – Freedom Series

The Eaton CN15KN3C is a 90 Amp magnetic contactor from the Eaton Freedom NEMA Series. This non-reversing contactor is rated NEMA Size 3 and is designed for motor control applications. It supports motor loads up to 25 HP at 208 V, 30 HP at 240 V, and 50 HP at 480/600 V. The coil is rated for 480 V at 60 Hz or 440 V at 50 Hz.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Magnetic Contactor
• Series: Freedom NEMA Series
• Contactor Type: Non-Reversing
• Catalog Number / MPN: CN15KN3C
• Primary Rating: 90 Amp
• Poles / Configuration: 2 Pole
• NEMA Size: Size 3
• Coil Voltage: 480 V @ 60 Hz / 440 V @ 50 Hz
• Motor Rating: 25 HP @ 208 V; 30 HP @ 240 V; 50 HP @ 480/600 V
• Maximum Horsepower: 50 HP
• Mounting: Not specified

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: CN15KN3C
• Series: Freedom NEMA Series
• Contactor Type: Non-Reversing
• Current Rating: 90 A
• Pole Count: 2 Pole
• NEMA Size: Size 3
• Product Type: Magnetic Contactor
• UPC: 782113622439

Compatibility

The Eaton CN15KN3C is designed for compatible Eaton Freedom NEMA Series motor control applications. Verify the required coil voltage, motor horsepower, system voltage, pole configuration, and contactor compatibility before installation.
