Eaton CN35GN3AB Magnetic Contactor – 60A – 3-Pole / 3-Phase – 480/600V – 60A Lighting Load – Open Type – CN35 Series

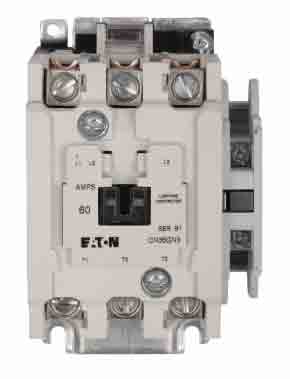

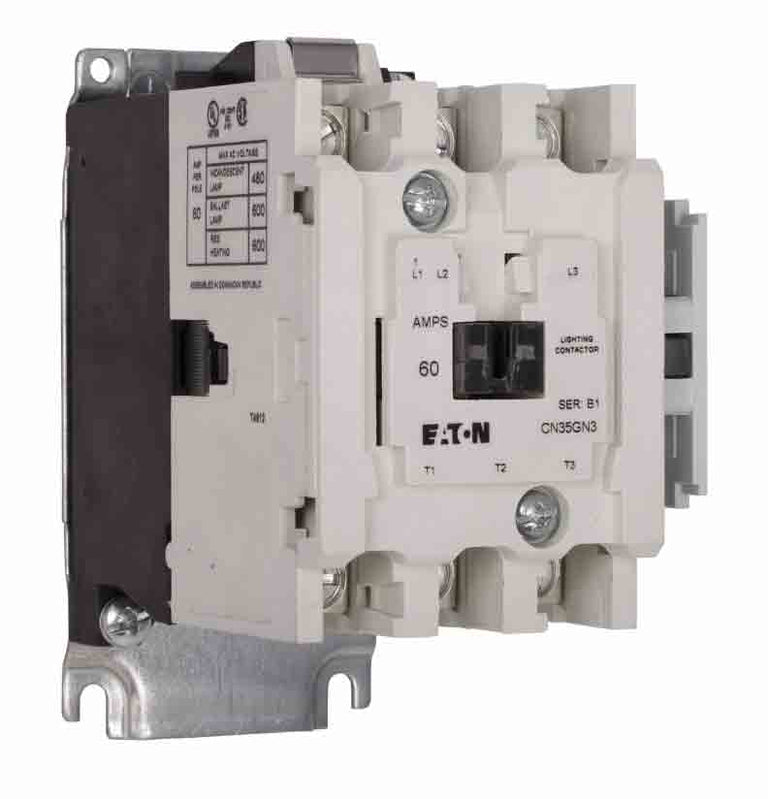

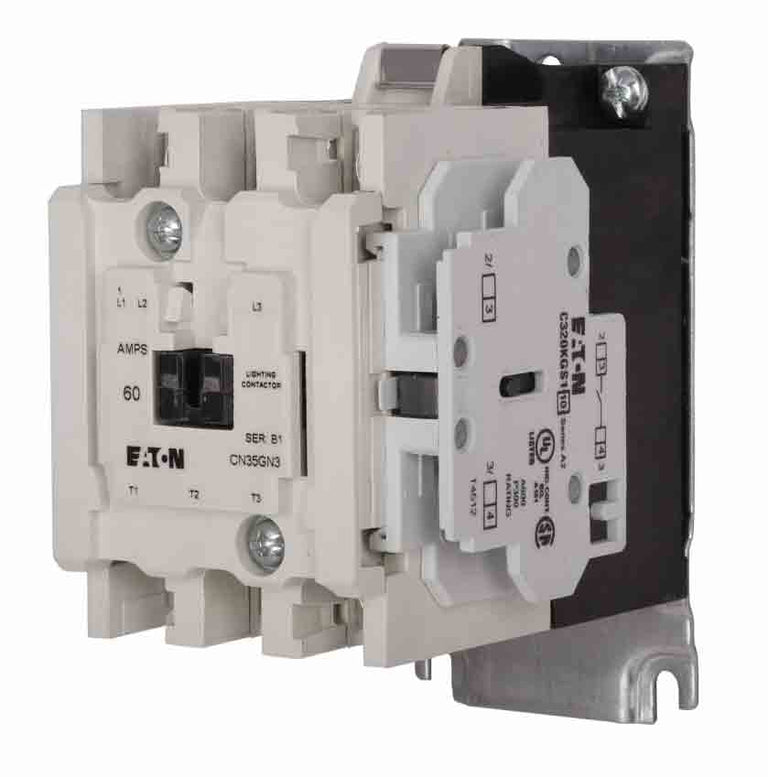

The Eaton CN35GN3AB is a 60A, 3-pole, 3-phase magnetic lighting contactor from the Cutler-Hammer CN35 Series. It is an electrically held, open-type contactor designed for compatible lighting and motor control applications.

The contactor is rated 60A at 480V for tungsten lamp applications and 60A at 600V for ballast or mercury vapor-type applications. It includes a 110V 50Hz / 120V 60Hz AC coil and a normally open auxiliary contact. The unit is identified as NEMA Size 2 and is suitable for use with CN35 electrically held motor control systems.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Contactor
• Product Name: CN35 Electrically Held Lighting Contactor
• Catalog No.: CN35GN3AB
• Series: CN35
• Type: CN35
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V / 600V
• Tungsten Lamp Rating: 60A @ 480V
• Ballast / Mercury Vapor Rating: 60A @ 600V
• Coil Voltage: 110V AC @ 50Hz / 120V AC @ 60Hz
• Coil Type: AC Coil
• Contactor Type: Electrically Held
• Auxiliary Contact: Normally Open (N/O)
• Enclosure / Construction: Open Type
• NEMA Size: Size 2
• Application: Lighting Contactor and Motor Control
• Compatible Systems: CN35 Electrically Held Motor Control Systems

Part Numbers & Identification:

• Manufacturer Part Number (MPN): CN35GN3AB
• Catalog Number: CN35GN3AB
• Model: CN35GN3AB
• Product Family: Eaton CN35 Contactors
• Series: CN35
• Type: CN35
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Configuration: 3-Pole, 60A
• NEMA Size: Size 2
• UPC:782113973562

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer CN35 electrically held motor control systems. The CN35GN3AB is suitable for lighting applications including tungsten lamps at 480V and ballast or mercury vapor-type applications at 600V.

Always verify the specific control system, coil voltage and frequency, load type, operating voltage, current rating, auxiliary contact requirements, and installation requirements before installation.

Certifications:

• No specific certification information provided
