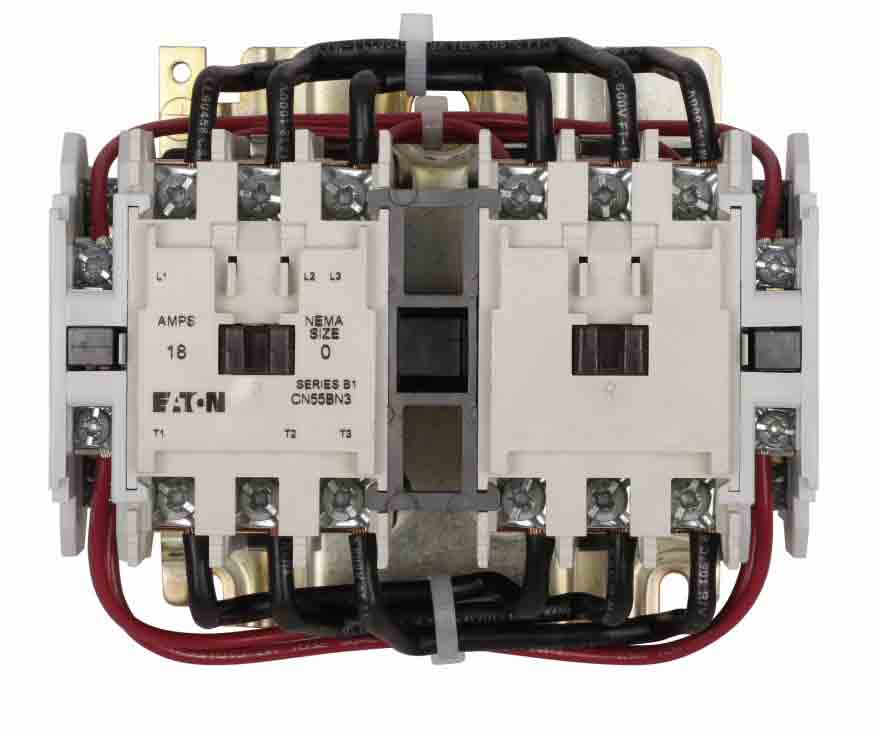

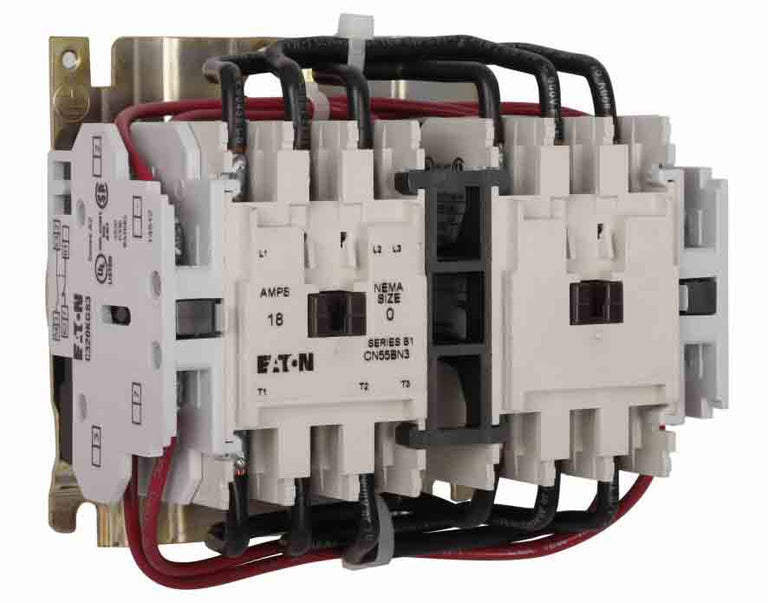

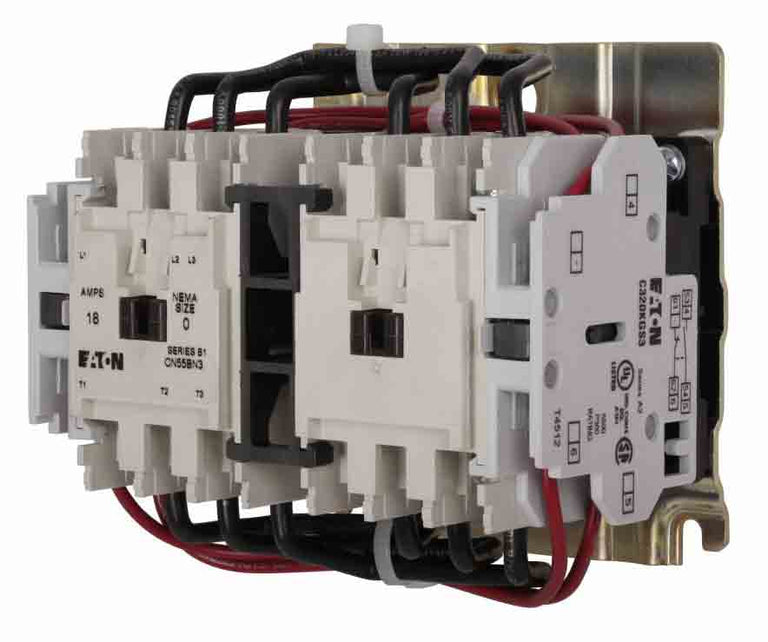

Eaton CN55BN3AB 18 Amp Magnetic Contactor – 3 Pole – 600 V – 110 V AC / 120 V AC Coil – Reversing – NEMA Size 0 – Freedom Series

The Eaton CN55BN3AB is an 18 Amp, 3-pole magnetic contactor from the Cutler-Hammer Freedom Series, Type CN55BN. Designed for reversing motor control applications, it is rated for 600 V and features an AC coil rated at 110 V AC at 50 Hz or 120 V AC at 60 Hz. The contactor is NEMA Size 0 and is suitable for use with compatible Cutler-Hammer motor control systems.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Magnetic Contactor
• Series: Freedom
• Type: CN55BN
• Catalog Number / MPN: CN55BN3AB
• Primary Rating: 18 Amp
• Poles / Configuration: 3 Pole
• Phase: 1 or 3 Phase
• Voltage: 600 V
• Coil Voltage: 110 V AC at 50 Hz / 120 V AC at 60 Hz
• Coil Type: AC
• Motor Control Configuration: Reversing
• NEMA Size: Size 0
• Motor Rating at 115 V, 1 Phase: 1 HP
• Motor Rating at 230 V, 1 Phase: 2 HP
• Motor Rating at 208 V, 3 Phase: 3 HP
• Motor Rating at 240 V, 3 Phase: 3 HP
• Motor Rating at 480 V, 3 Phase: 5 HP
• Motor Rating at 600 V, 3 Phase: 5 HP
• Motor Rating at 380 V, 3 Phase, 50 Hz: 5 HP

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: CN55BN3AB
• Series: Freedom
• Type: CN55BN
• Current Rating: 18 A
• Pole Count: 3 Pole
• Product Type: Reversing Magnetic Contactor
• Coil: 110 V AC at 50 Hz / 120 V AC at 60 Hz
• NEMA Size: Size 0
• UPC:782113781327

Compatibility

The Eaton CN55BN3AB is intended for compatible Cutler-Hammer Freedom Series motor control systems and reversing motor control applications.
