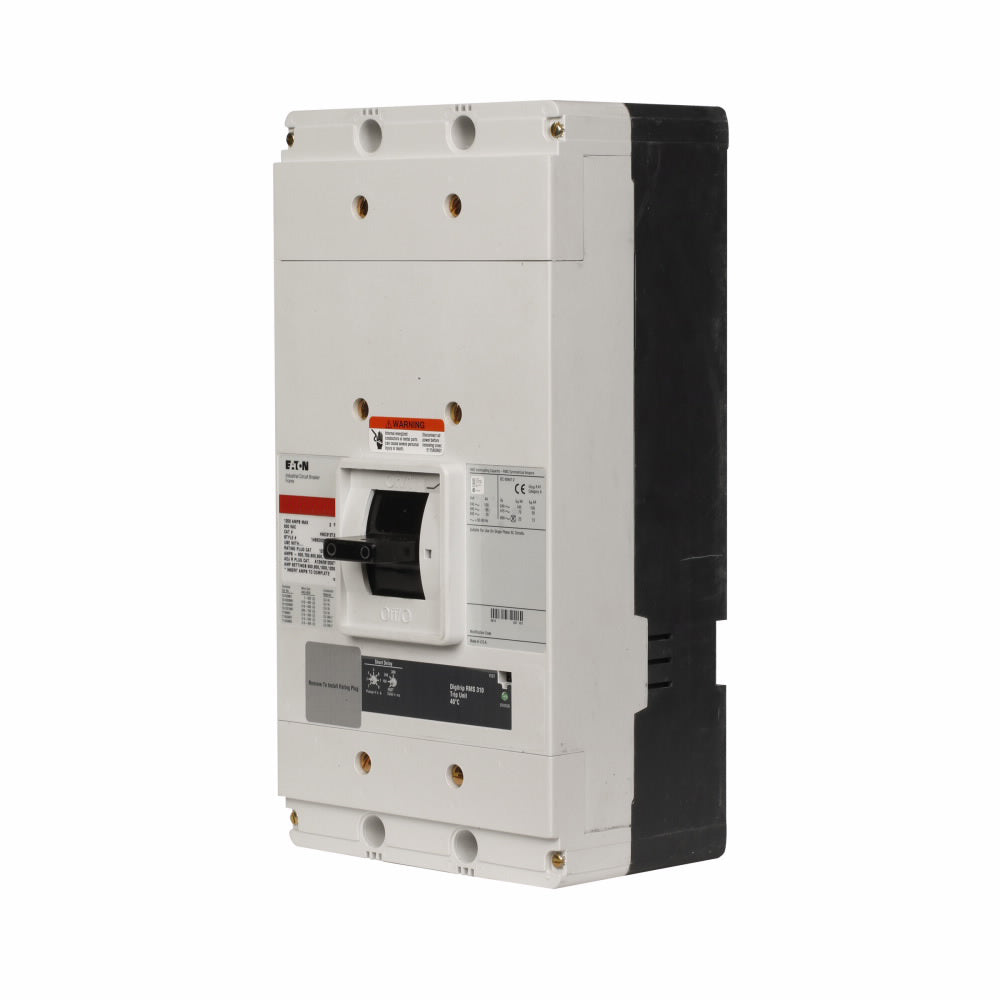

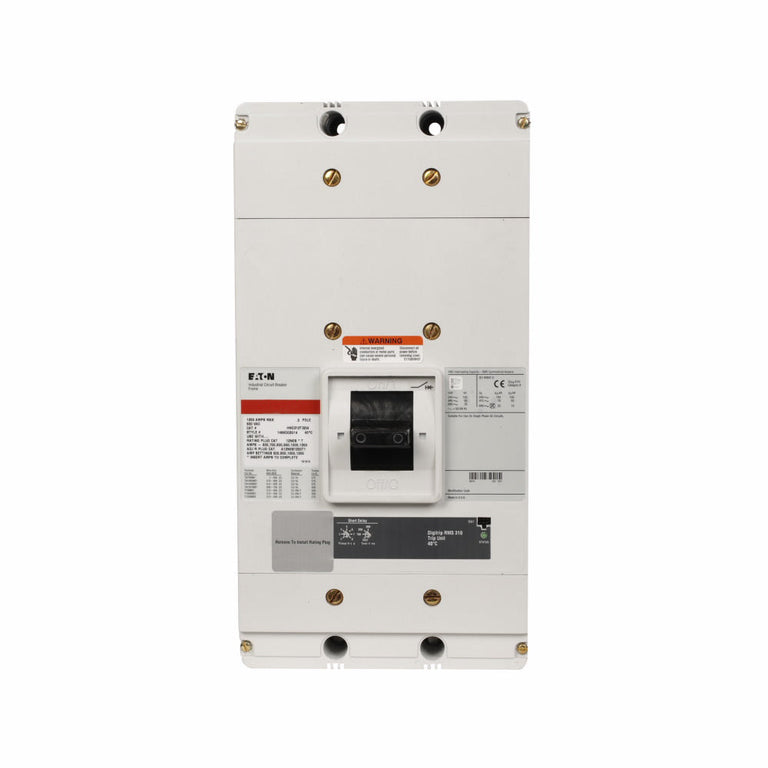

Eaton Cutler-Hammer CND312T33W 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 50 kA @ 480V – Series C CND Frame

The Eaton CND312T33W is a 1200A, 3-pole molded case circuit breaker from the Series C family, designed for industrial and commercial power distribution systems. It features a 600V rating and a 50 kA interrupting capacity at 480V. The breaker is 100%-rated and equipped with a solid-state electronic Digitrip RMS 310 trip unit, providing LS protection (Long-Time and Short-Time). Its bolt-on configuration uses a non-interchangeable trip unit.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• Product Series: Series C
• Type: CND
• Model / MPN: CND312T33W
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 1200A
• Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 600V
• Interrupting Capacity: 50 kA @ 480V
• Interrupting Class: Standard Interrupting
• Rating: 100% Rated
• Mounting: Bolt-On
• Trip Unit: Digitrip RMS 310
• Trip Unit Type: Non-Interchangeable
• Trip Functions: LS – Long-Time and Short-Time
• Trip Technology: Solid-State Electronic

Part Numbers & Identification

• Manufacturer: Eaton
• Brands: Cutler-Hammer / Westinghouse
• Catalog Number: CND312T33W
• Product Family: Series C
• Breaker Type: CND
• UPC:786679252802

Compatibility

Designed for compatible Eaton, Cutler-Hammer, and Westinghouse Series C distribution equipment supporting 1200A, 3-pole breakers with matching voltage, interrupting capacity, and bolt-on mounting configuration.
