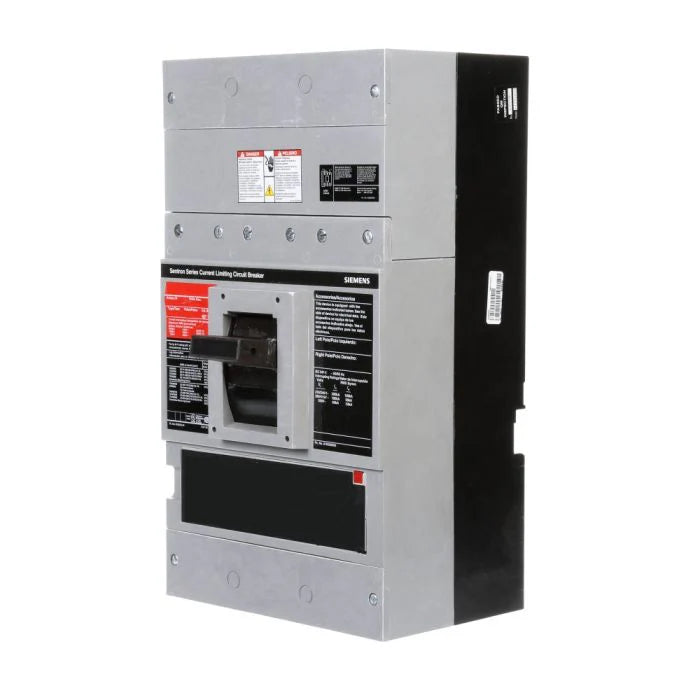

Siemens CND63B100 1000 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Bolt-On – SENTRON Series

The Siemens CND63B100 is a 1000 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type CND. It is rated for 600 V with a 100 kA interrupting rating at 480 V and features fuseless current-limiting protection. The breaker has a non-interchangeable thermal-magnetic trip unit with LI (Long-Time and Instantaneous) trip functions and is designed for bolt-on mounting.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: CND
• Catalog Number / MPN: CND63B100
• Primary Rating: 1000 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Fuseless Current Limiting
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: CND63B100
• Series: SENTRON
• Type: CND
• Current Rating: 1000 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• UPC: 783643215863

Compatibility

The Siemens CND63B100 is designed for compatible Siemens SENTRON Type CND electrical distribution applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.
