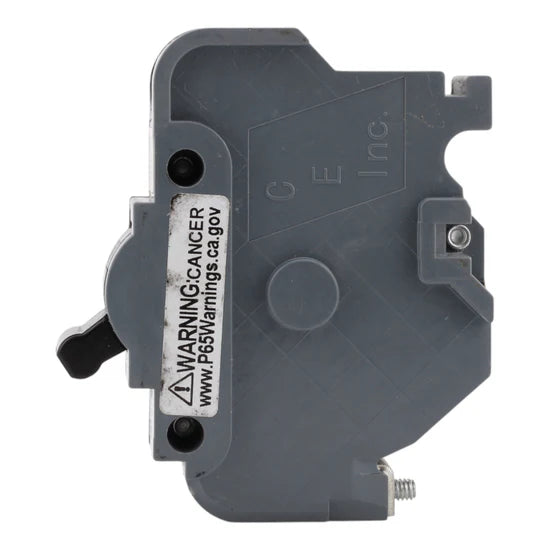

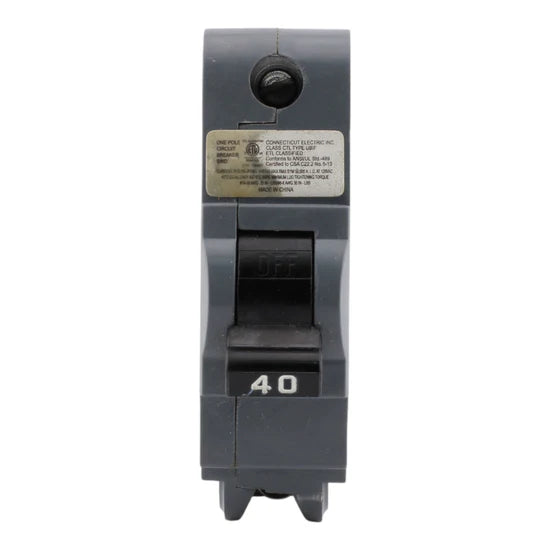

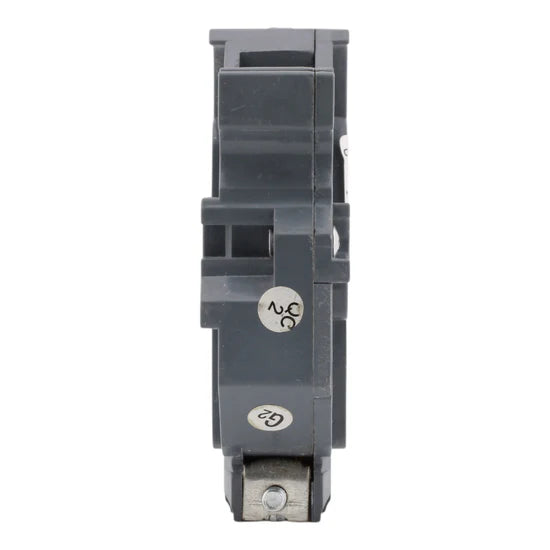

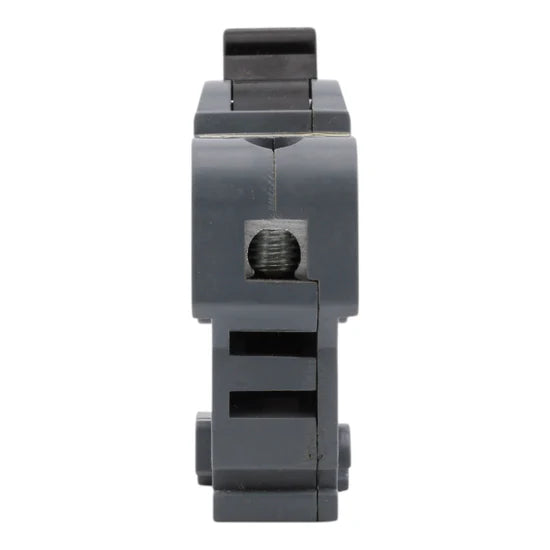

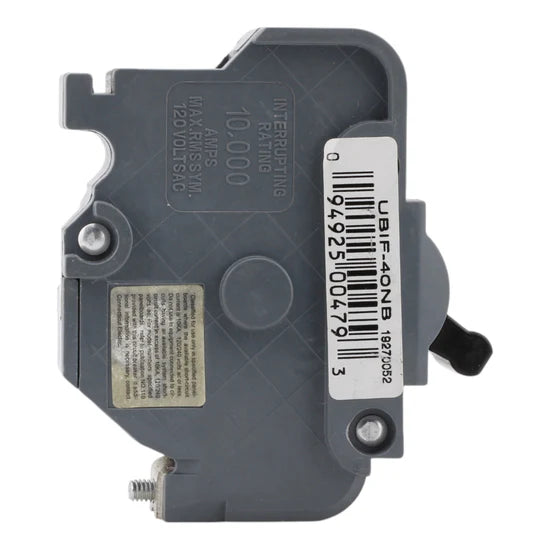

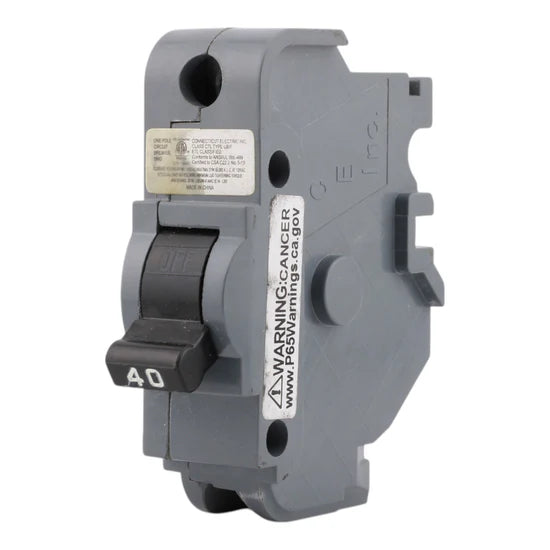

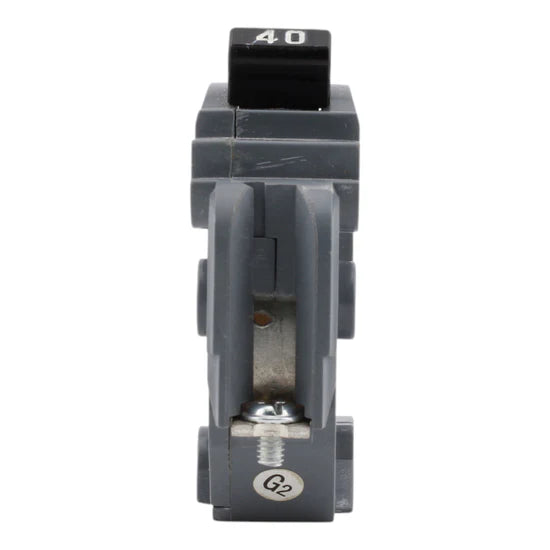

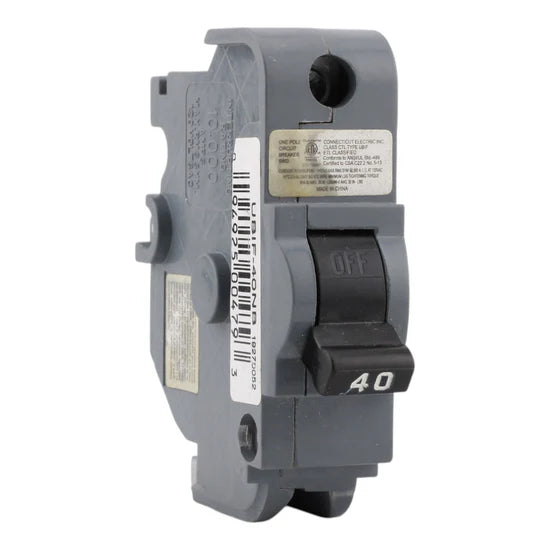

The Connecticut Electric UBIF-40NB 40 Amp single-pole circuit breaker is a reliable replacement designed for Federal Pacific Electric (FPE) commercial panel applications. Built as a thick NB-type breaker, it provides dependable overload and short-circuit protection with a 10 kA interrupt rating. This bolt-on unit is ETL listed and engineered for compatibility with NBLP and other FPE commercial panels. Installation requires an M2.5 hex tool for secure bus bar connections, making it a practical solution for maintenance professionals and electricians servicing legacy FPE systems.
Voltage and Rating
- Current Rating: 40 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kAIC
Key Specifications
- Breaker Type: FPE NB Type Replacement Breaker (Thick)
- Number of Poles: 1-Pole
- Mounting Type: Bolt-On
- Compatibility: NBLP and other Federal Pacific Electric commercial panels
- Special Features: Requires M2.5 hex tool for bus bar bolts
Technical Specifications
- Protection Type: Overload and short-circuit protection
- Construction: Thick NB type molded case
- Certifications: ETL Listed
Product Data
- Manufacturer: Connecticut Electric
- Brand: Connecticut Electric
- Model Number: UBIF-40NB
- UPC: 094925004793
- Dimensions: 3.5 in x 3 in x 1 in
- Weight: 0.3 lb
