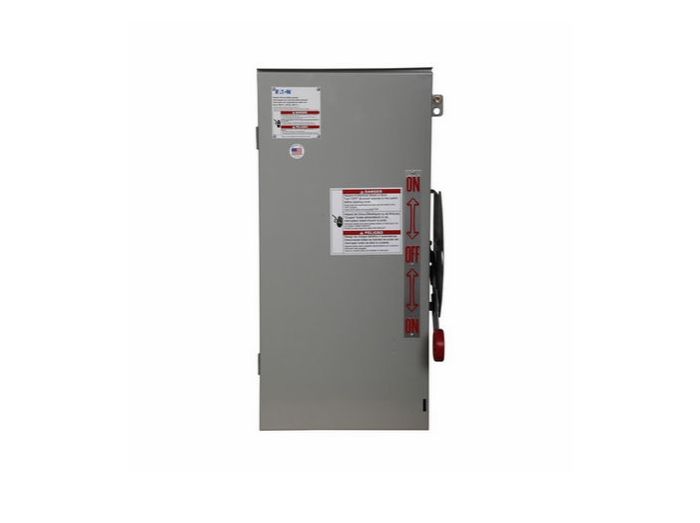

Cutler Hammer DT362URK 60 Amp 600V 100kA AIC Double Throw Non-Fusible Disconnect Switch NEMA 3R

Description

The Cutler-Hammer DT362URK is a 3-phase, 3-pole, double-throw disconnect switch rated for 60 amps and up to 600 volts. It features a Type DT design with a NEMA 3R weather-resistant enclosure, making it ideal for outdoor use. This non-fusible switch provides a reliable single-switch, double-throw configuration with a high interrupting capacity of 100 kA at 600V.

Specifications

• Part Number: DT362URK
• Manufacturer : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DT Series
• Type : DT
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 100kA@600V
• Configuration : Double
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : TFJ

Product Data

• UPC : 782113426396
• GTIN : 00782113426396
• Country of Origin : United States
• Dimensions : 11.95 in x 11.19 in x 25.02 in (WxDxH)
• Weight : 54
• Certification : UL Listed
