Eaton DG324NGK Safety Disconnect Switch – 200A – 3-Pole / 4-Wire – 240V – 100kA @ 240V – Fusible – DG Series

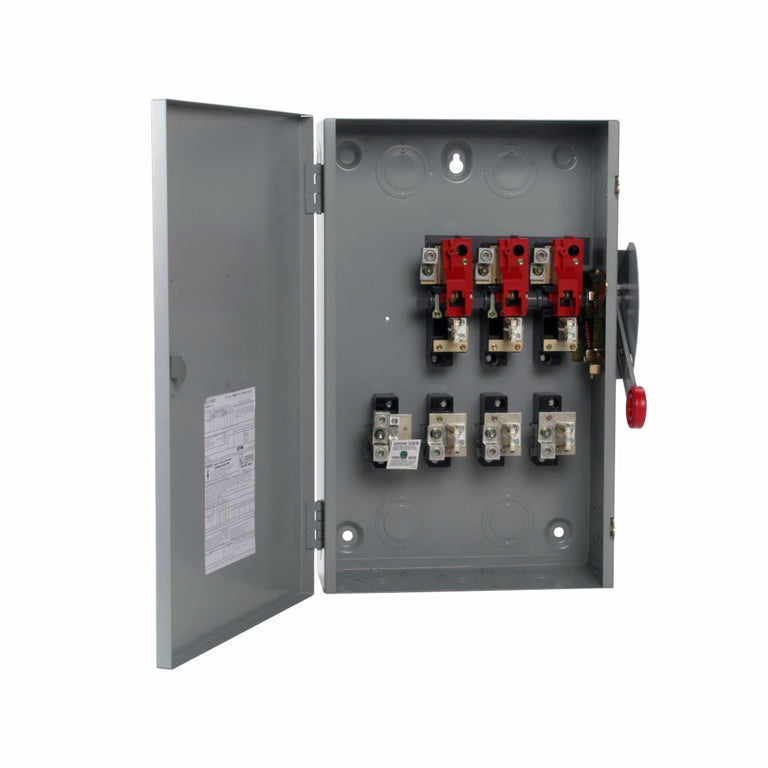

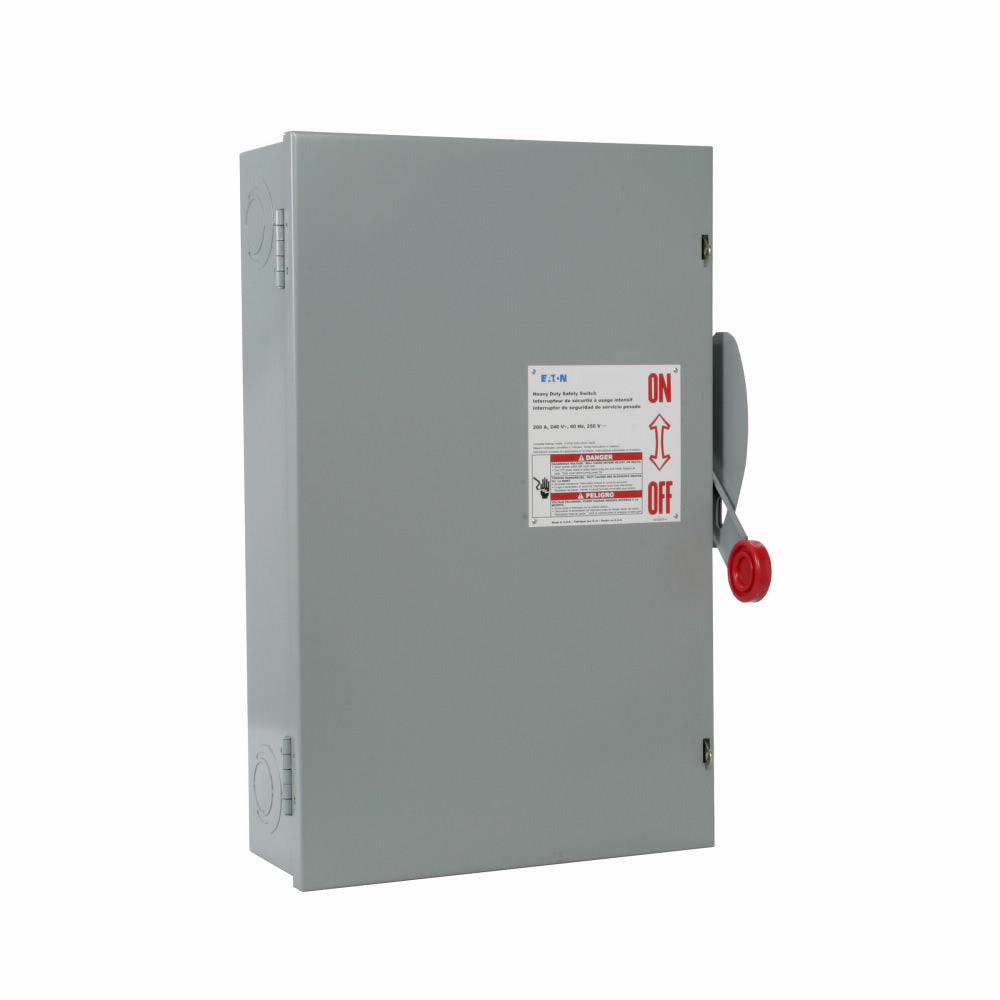

The Eaton DG324NGK is a 200A, 3-pole general-duty safety disconnect switch from the Eaton Cutler-Hammer DG Series. It is a fusible safety switch designed for general-duty electrical disconnect applications and uses Class H fuses.

The switch features a NEMA 1 painted-steel enclosure, a fusible configuration with neutral, and a three-pole, four-wire arrangement. It is rated for 240V and has a 100kA AIC interrupting rating at 240V.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Safety Disconnect Switch
• Product Category: General-Duty Safety Switch
• Catalog No.: DG324NGK
• Series: DG Series
• Type: DG
• Current Rating: 200A
• Number of Poles: 3-Pole
• Wiring Configuration: 4-Wire
• Voltage Rating: 240V
• Fuse Type: Class H
• Configuration: Fusible with Neutral
• Enclosure Rating: NEMA 1
• Enclosure Material: Painted Steel
• AIC Rating: 100kA @ 240V
• Application: General-Duty Electrical Disconnect
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DG324NGK
• Catalog Number: DG324NGK
• Model: DG324NGK
• Product Family: Eaton DG Series Safety Switches
• Series: DG Series
• Type: DG
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: General-Duty Safety Disconnect Switch
• Configuration: 200A, 3-Pole, 4-Wire
• UPC:
  782113213538

Compatibility:

Designed for compatible Eaton / Cutler-Hammer general-duty safety switch applications requiring a 200A, 3-pole, 4-wire fusible disconnect with a neutral. The DG324NGK uses Class H fuses and is housed in a NEMA 1 painted-steel enclosure.

Always verify the specific electrical equipment, system voltage, fuse requirements, pole and wire configuration, available fault current, enclosure requirements, and installation specifications before installation.

Certifications:

• UL Listed
• 100kA AIC @ 240V
• NEMA 1 Enclosure
• Class H Fuse Compatible
• 200A Rated
• 3-Pole / 4-Wire
• Fusible with Neutral
• Genuine Eaton / Cutler-Hammer Product
