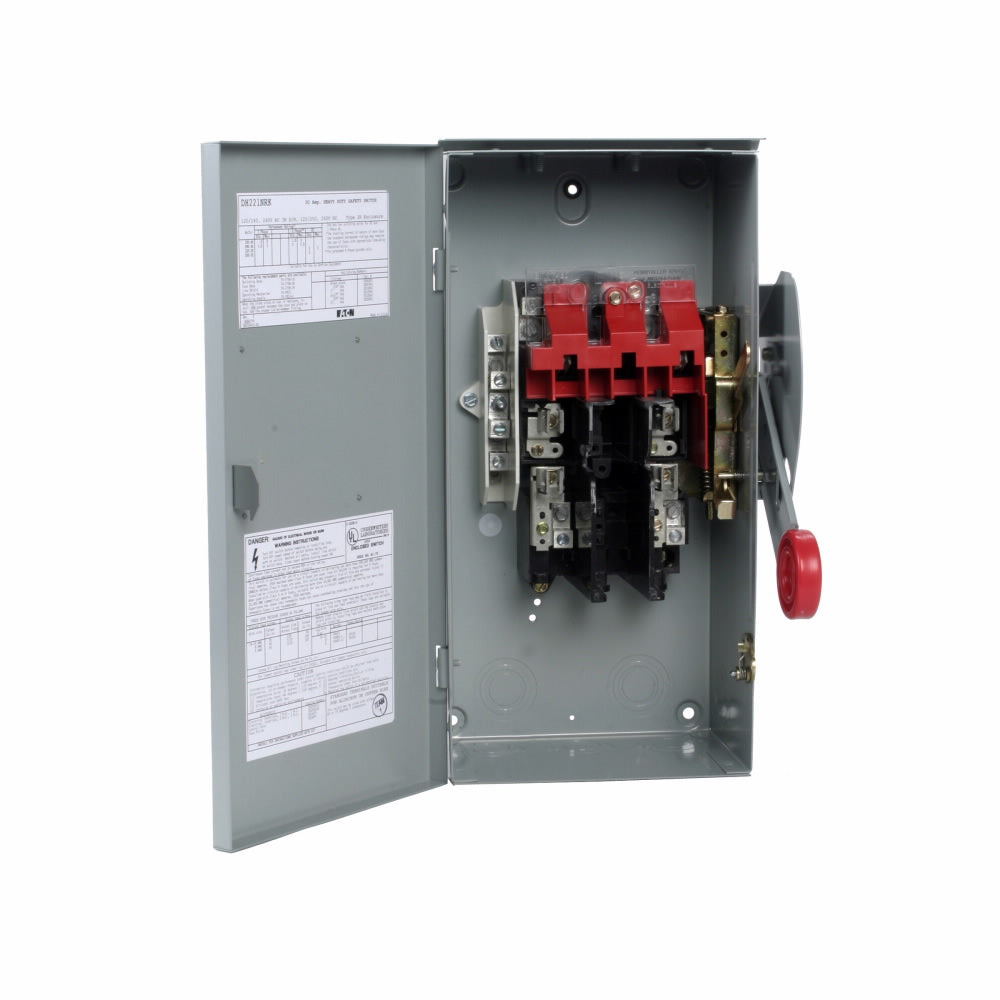

Eaton DH221NRK 30A 2-Pole 240V Heavy Duty Fusible Safety Switch NEMA 3R Rainproof Disconnect

Product Description

The Eaton DH221NRK is a 30 Amp, 2-Pole, heavy-duty fusible safety switch designed for commercial and industrial applications requiring a reliable means of disconnect. Featuring a NEMA 3R rainproof enclosure, this switch is suitable for both indoor and outdoor installations and includes a neutral for three-wire systems. It provides visible blade operation for enhanced safety and maintenance verification.

Key Features

• Catalog Number: DH221NRK
• Manufacturer: Eaton
• Amperage: 30 Amp
• Poles: 2-Pole
• Voltage Rating: 240VAC / 250VDC
• Heavy Duty Safety Switch
• Fusible Design
• Includes Neutral
• Visible Blade Construction
• NEMA 3R Rainproof Enclosure
• Suitable for Indoor and Outdoor Applications
• UL Listed
• CSA Certified
• Service Entrance Rated

Technical Specifications

• Manufacturer: Eaton
• Catalog Number: DH221NRK
• Type: Heavy Duty Fusible Safety Switch
• Amperage: 30A
• Poles: 2
• Wires: 3-Wire
• Voltage Rating: 240VAC / 250VDC
• Enclosure Rating: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Fuse Configuration: Fusible With Neutral
• Fuse Class: Class H
• Mounting: Surface Mount
• Maximum Horsepower Ratings:
  • 1.5 HP
  • 3 HP
  • 7.5 HP (Single Phase)
  • 5 HP (Three Phase)
• Certifications:
  • UL Listed
  • CSA Certified
• Service Entrance Rated

Product Data

• Brand: Eaton
• Series: Heavy Duty Safety Switch
• Model: DH221NRK
• Type: Fusible Safety Switch
• Enclosure: NEMA 3R Rainproof
• Material: Painted Galvanized Steel
• Number of Poles: 2
• Number of Wires: 3
• Neutral: Included
• Fuse Type: Class H
• Condition: New / Reconditioned
• UPC: 782113205359
• GTIN: 00782113205359
• Weight: Approximately 13.6 lbs
• Dimensions:
  • Height: 16.5"
  • Width: 9.12"
  • Depth: 8.31"
• Country of Manufacture: Varies by Production Run

Common Applications

• Air Conditioning Disconnects
• Pump Disconnects
• Commercial Service Entrances
• Industrial Equipment Isolation
• Outdoor Power Distribution Systems
• Feeder Circuit Disconnecting Means
