Eaton DH322NRK Disconnect and Safety Switch – 60A – 3-Pole / 4-Wire – 240V – Fusible with Neutral – NEMA 3R – DH Series

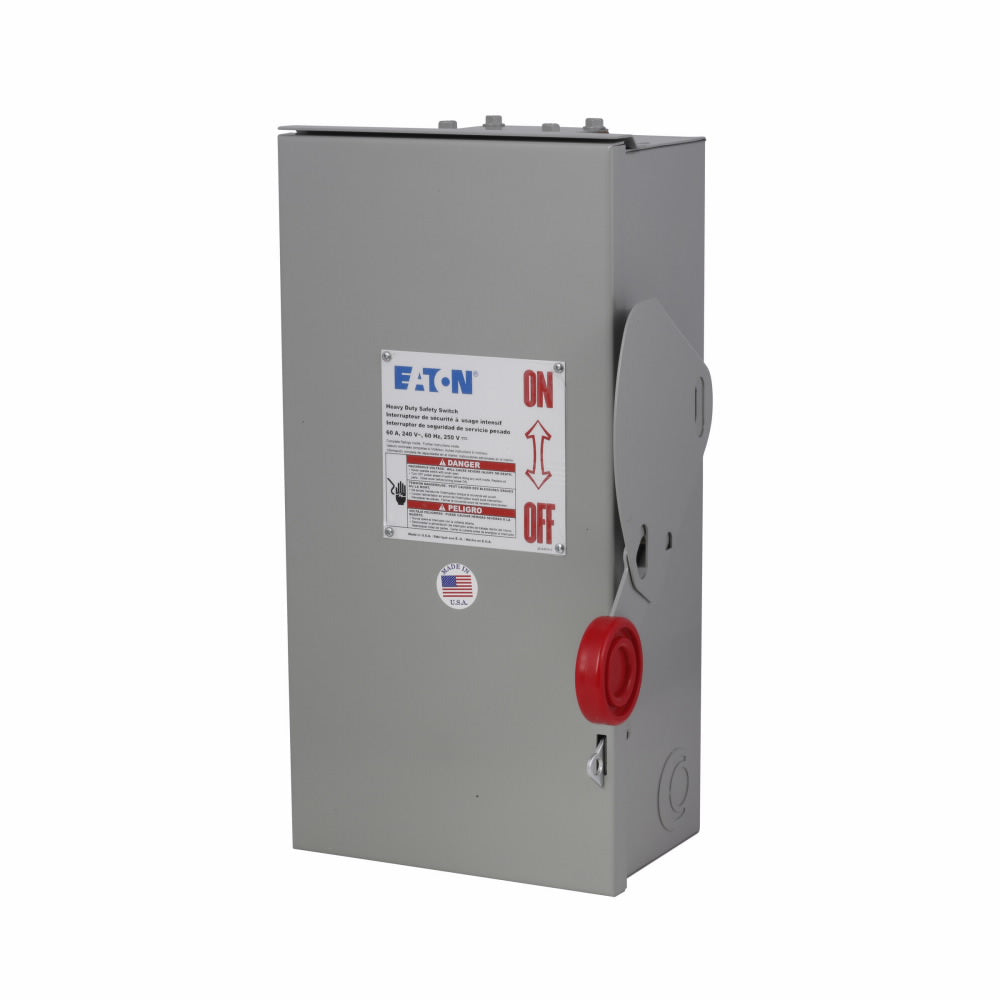

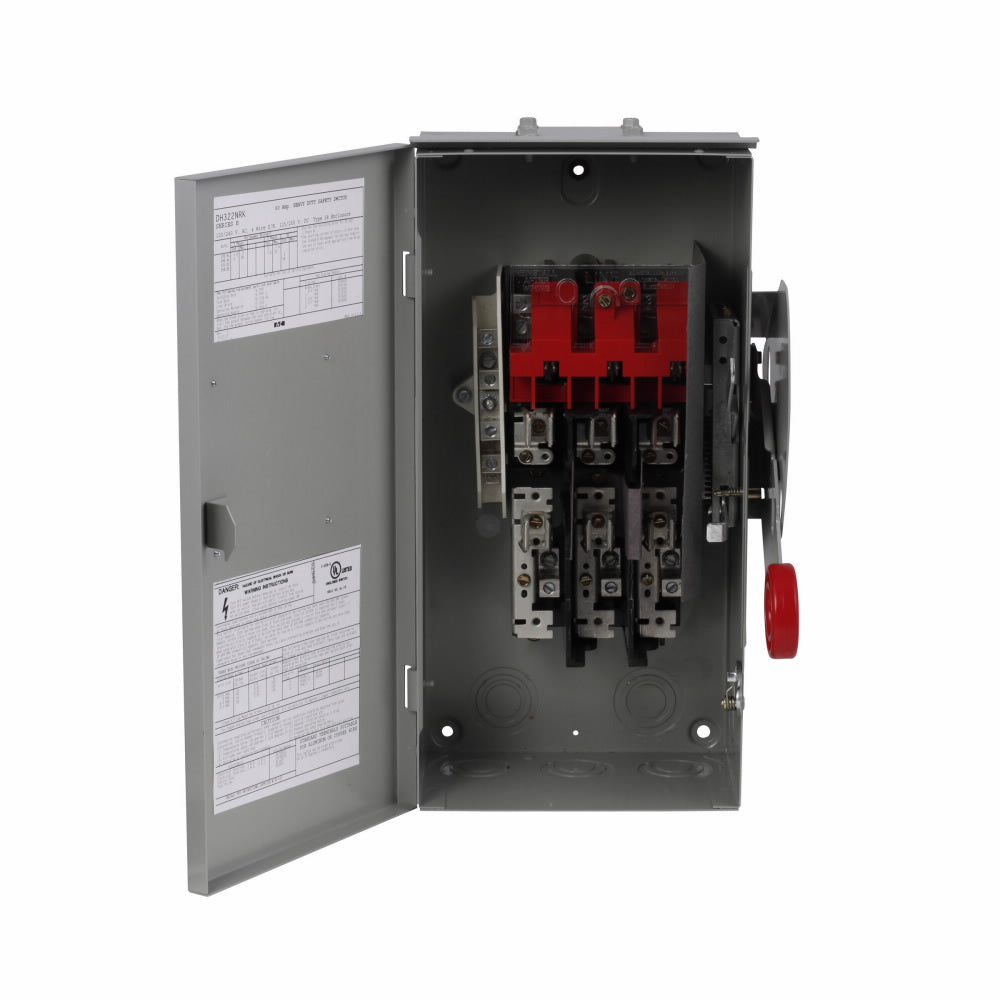

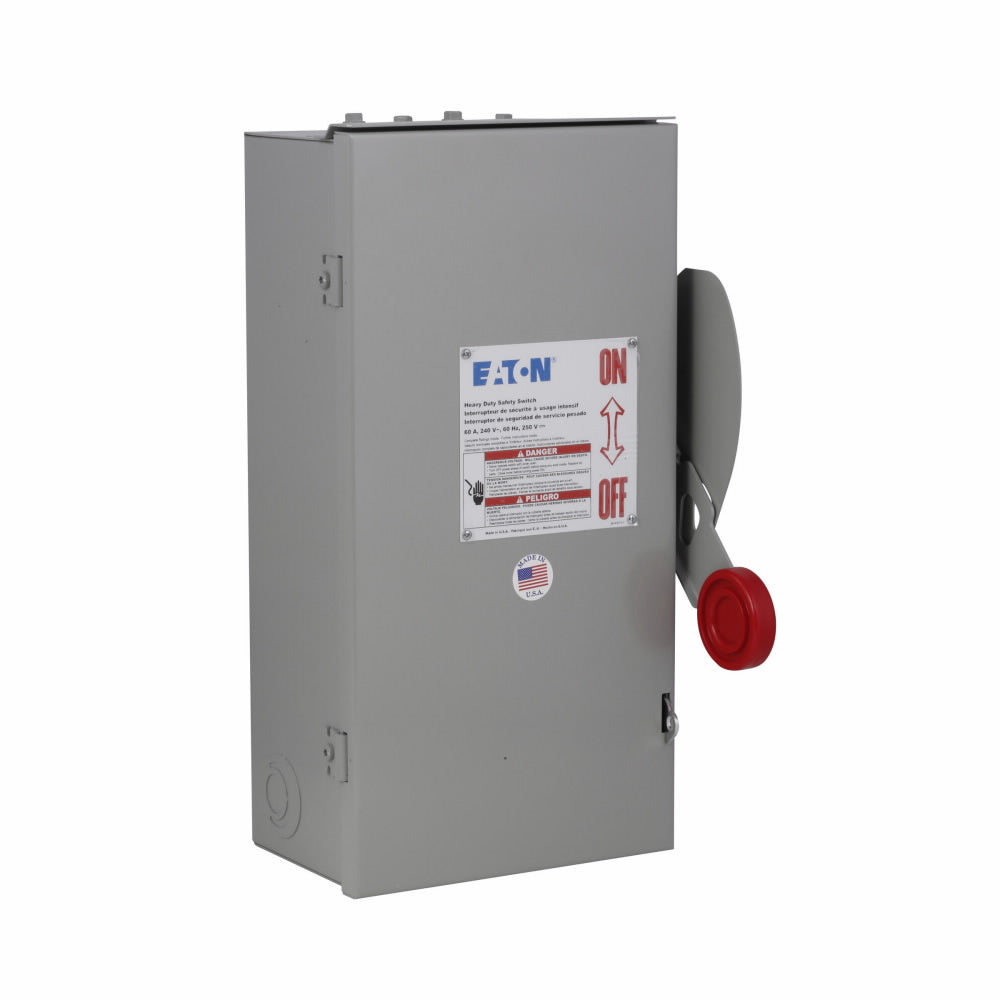

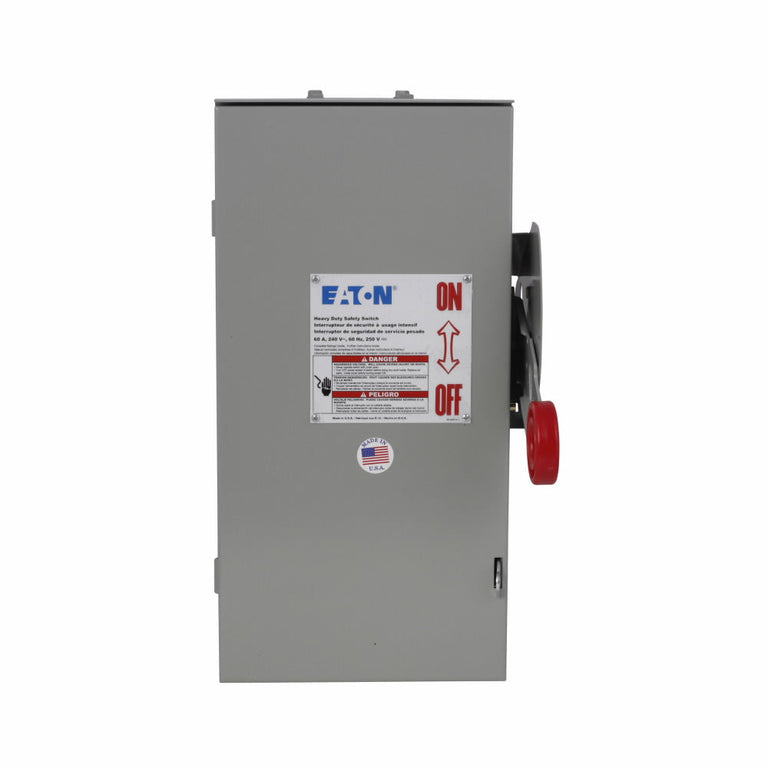

The Eaton DH322NRK is a 60A, 3-pole, four-wire single-throw fusible safety switch from Eaton. It features enhanced visible blades, a neutral connection, and a NEMA 3R painted galvanized steel enclosure for compatible outdoor or weather-exposed applications.

The DH322NRK is rated for 240V and uses Class H fuses for overcurrent protection. It accommodates #14–#2 copper or aluminum conductors and provides horsepower ratings for applicable motor loads.

Specifications:

• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Product Family: DH Safety Switches
• Series: DH
• Catalog No.: DH322NRK
• Current Rating: 60A
• Number of Poles: 3-Pole
• Wire Configuration: Four-Wire
• Voltage Rating: 240V
• Switch Type: Single-Throw
• Fuse Configuration: Fusible with Neutral
• Fuse Class: Class H
• Blade Type: Enhanced Visible Blade
• Enclosure Rating: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Conductor Range: #14–#2 Copper/Aluminum
• Maximum Horsepower: 3 HP, 7.5/10 HP, 15/10 HP for applicable configurations
• Application: Electrical Disconnect, Safety Switching, and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DH322NRK
• Catalog Number: DH322NRK
• Model: DH322NRK
• Product Family: Eaton DH Safety Switches
• Series: DH
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Fusible Disconnect and Safety Switch
• Configuration: 3-Pole, Four-Wire, 60A
• Fuse Configuration: Fusible with Neutral
• UPC:782113205830

Compatibility:

Designed for use with compatible Eaton safety switch and disconnect applications requiring a 60A, 3-pole, four-wire fusible switch with neutral. The DH322NRK provides 240V switching and uses Class H fuses for overcurrent protection.

The switch accommodates #14–#2 copper or aluminum conductors and has a NEMA 3R painted galvanized steel enclosure. Always verify the specific fuse requirements, system voltage, pole and wire configuration, enclosure requirements, conductor size, horsepower application, and installation requirements before installation.

Certifications:

• NEMA 3R Enclosure
• Class H Fuse Compatible
• 60A Rated
• 3-Pole / Four-Wire
• 240V Rated
• Single-Throw
• Fusible with Neutral
• Enhanced Visible Blade
• Painted Galvanized Steel Enclosure
• Eaton Product
