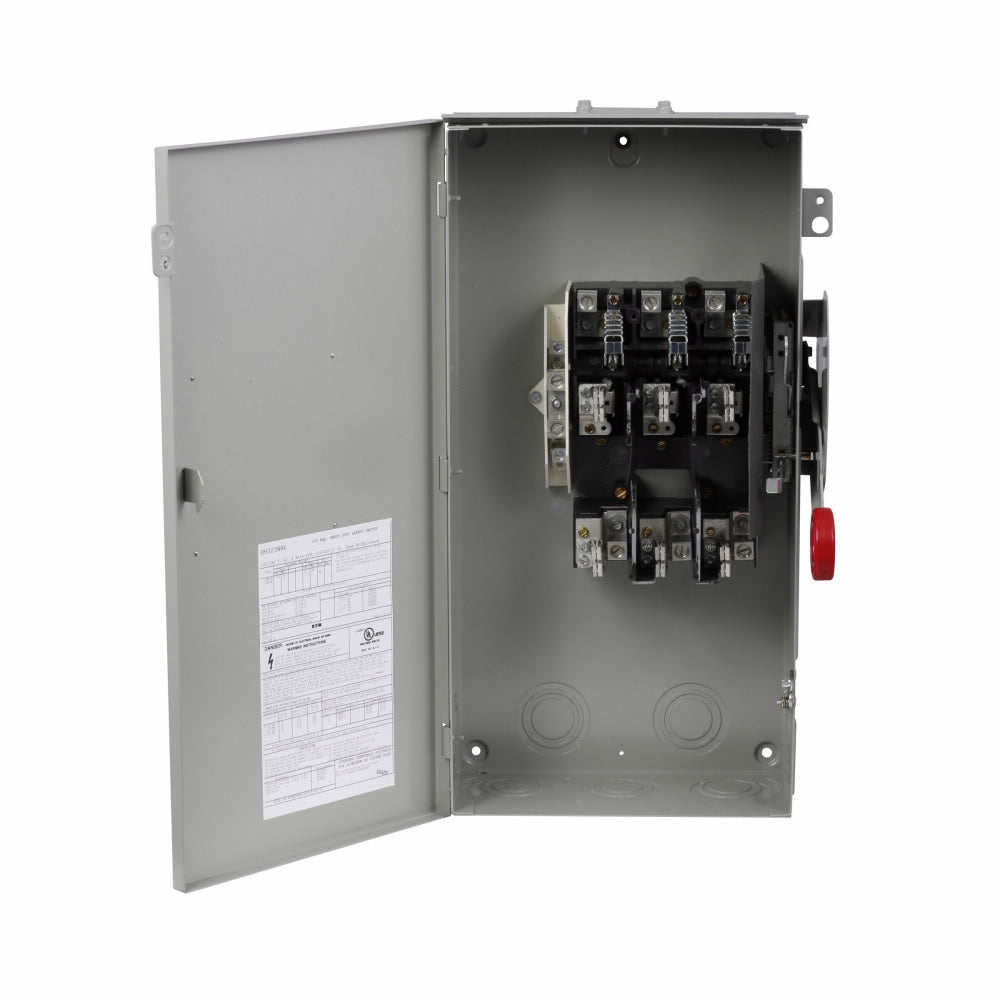

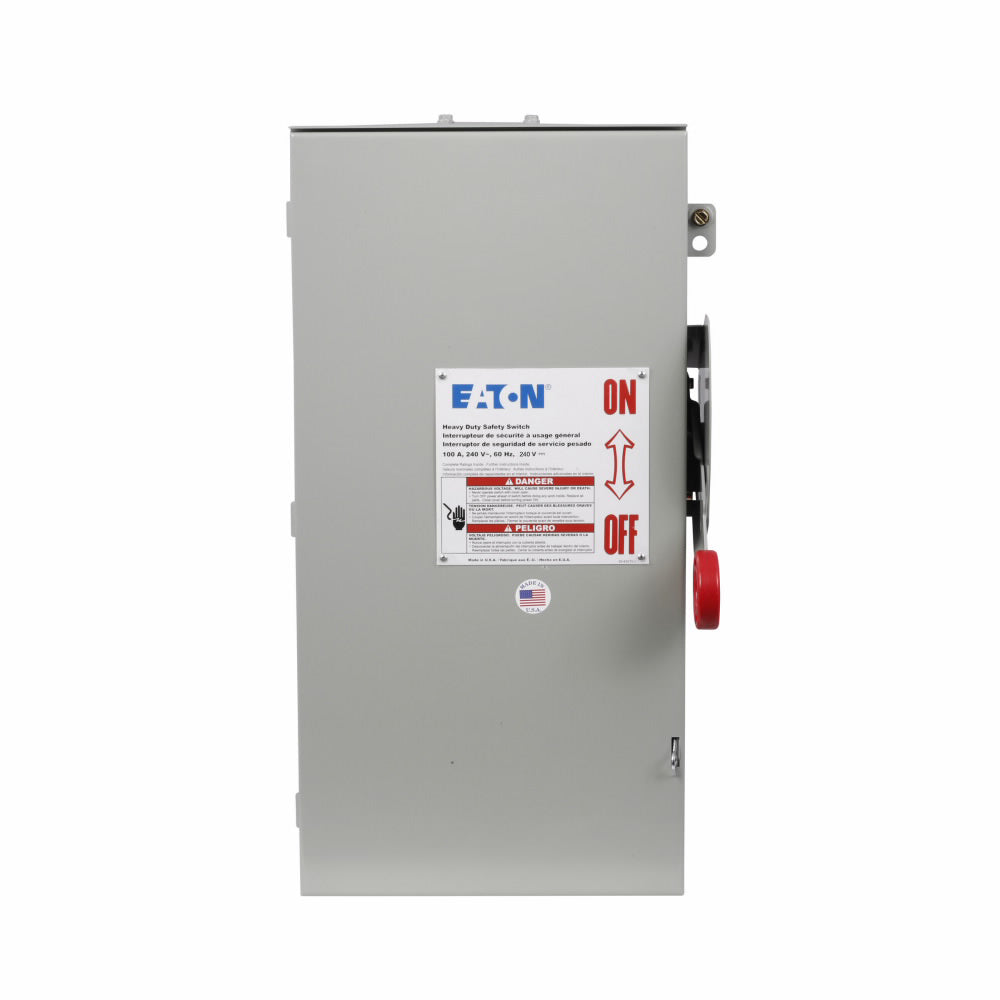

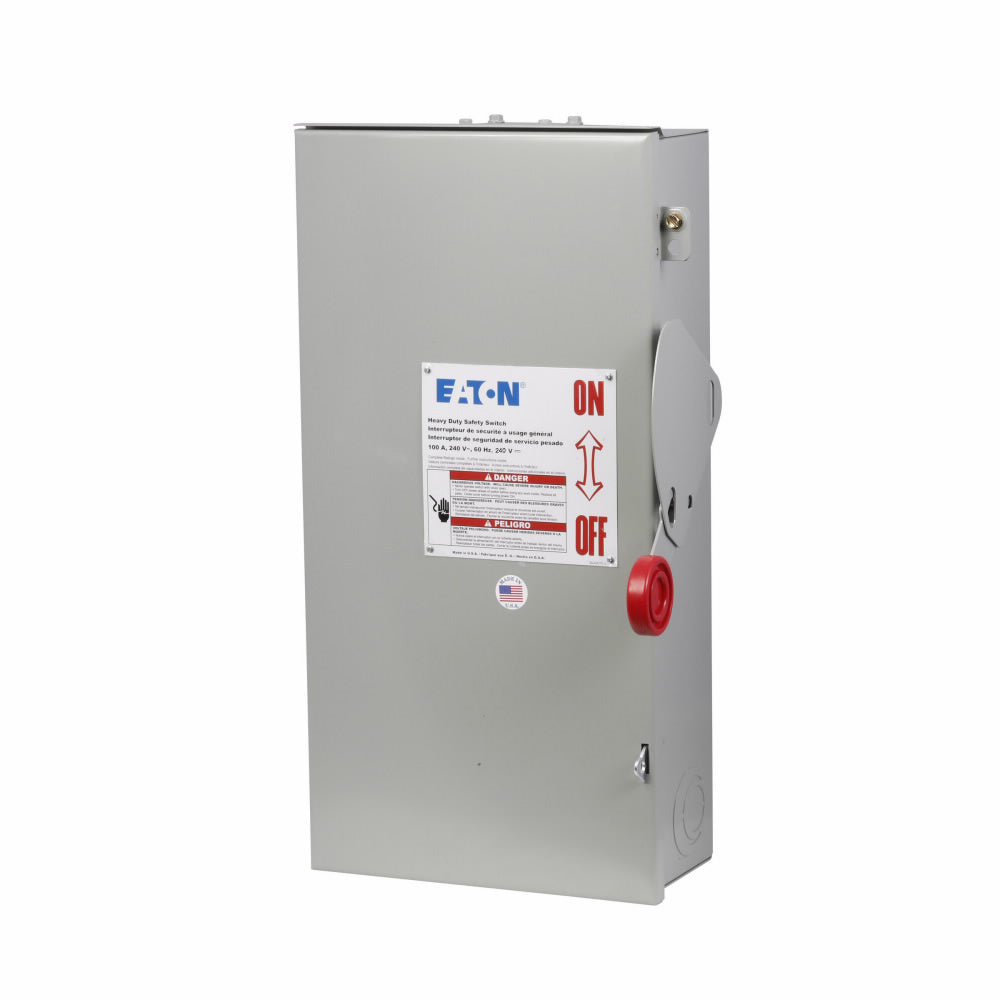

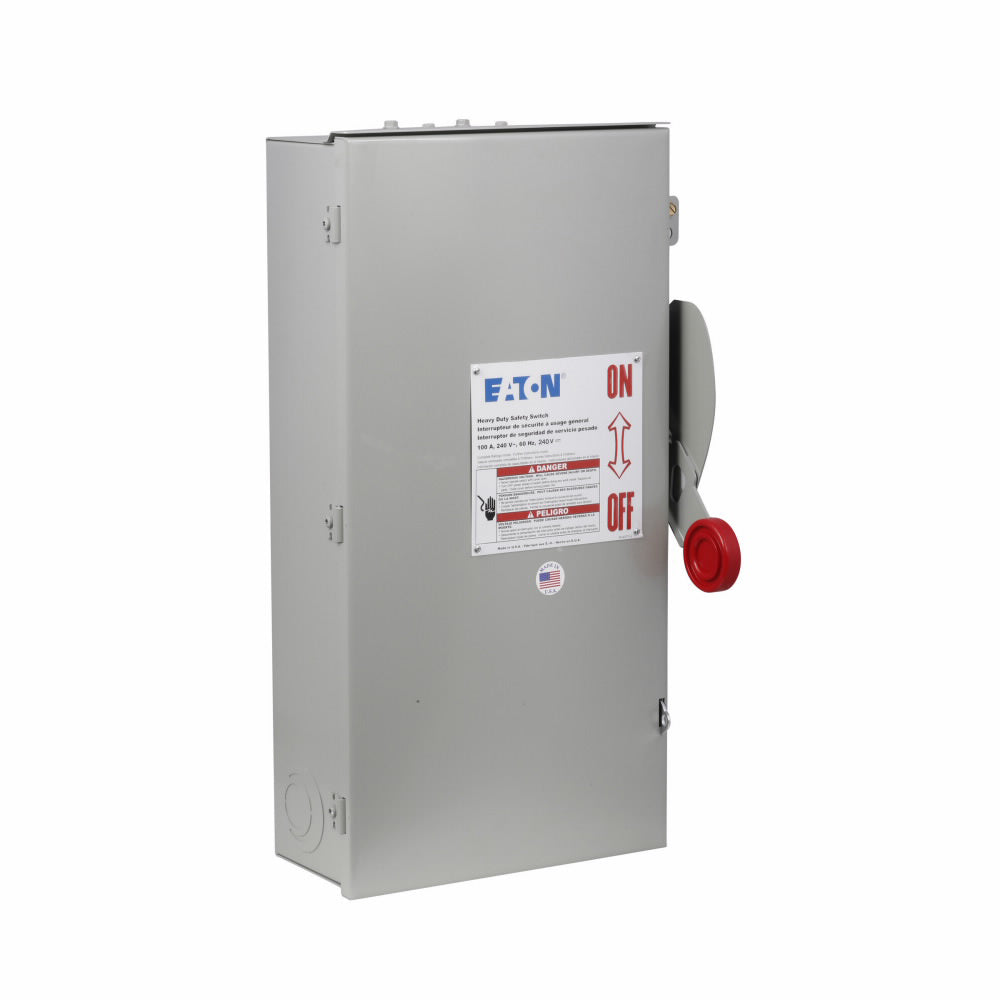

Eaton DH323NRK Disconnect and Safety Switch – 100A – 3-Pole / 4-Wire – 240V – 100kA @ 240V – Fusible – NEMA 3R – DH Series

The Eaton DH323NRK is a 100A, 3-pole, 3-phase heavy-duty safety disconnect switch from the Eaton Cutler-Hammer DH Series. It is a fusible disconnect designed for compatible electrical disconnect applications and accepts Class R fuses.

The DH323NRK features a 4-wire configuration, NEMA 3R rainproof construction, and is suitable for outdoor use. It is rated for 240V with a 100kA interrupting rating at 240V.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Disconnect and Safety Switch
• Product Category: Heavy-Duty Safety Disconnect Switch
• Series: DH Series
• Type: DH
• Catalog No.: DH323NRK
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wiring Configuration: 4-Wire
• Voltage Rating: 240V
• Interrupting Rating: 100kA @ 240V
• Configuration: Fusible
• Fuse Compatibility: Class R Fuses
• Enclosure Rating: NEMA 3R
• Environmental Rating: Rainproof
• Outdoor Use: Suitable for Outdoor Use
• Style: Single Style
• Application: Heavy-Duty Electrical Disconnect and Safety Switching
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DH323NRK
• Catalog Number: DH323NRK
• Model: DH323NRK
• Product Family: Eaton Cutler-Hammer DH Series Safety Disconnect Switches
• Series: DH Series
• Type: DH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Heavy-Duty Safety Disconnect Switch
• Configuration: 3-Pole, 4-Wire, 100A
• Fuse Type: Class R
• UPC:782113206271

Compatibility:

Designed for compatible Eaton / Cutler-Hammer DH Series heavy-duty safety disconnect applications requiring a 100A, 3-pole, 4-wire fusible disconnect for 240V systems. The DH323NRK accepts Class R fuses and features a NEMA 3R rainproof enclosure suitable for outdoor installations.

Always verify the specific electrical equipment, system voltage, fuse class and rating, pole and wire configuration, available fault current, enclosure requirements, environmental conditions, and installation specifications before installation.

Certifications:

• No specific certification information provided
