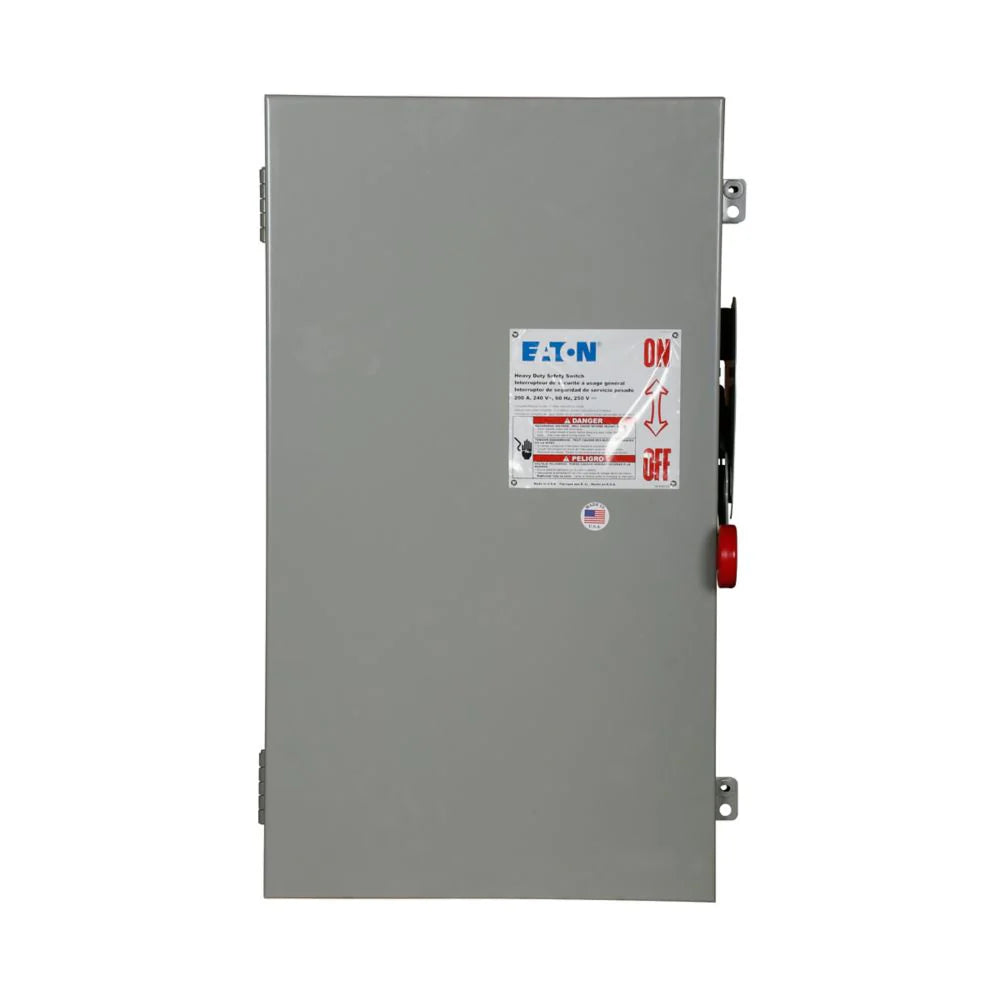

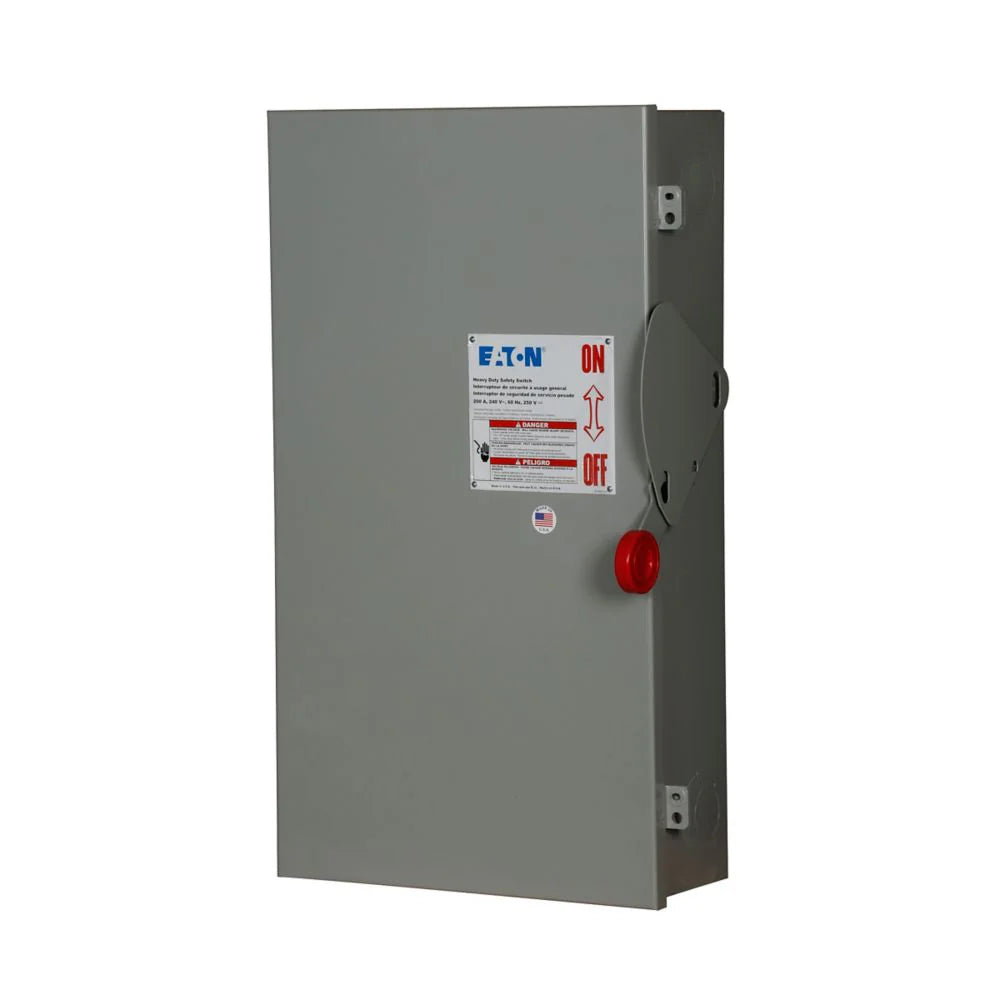

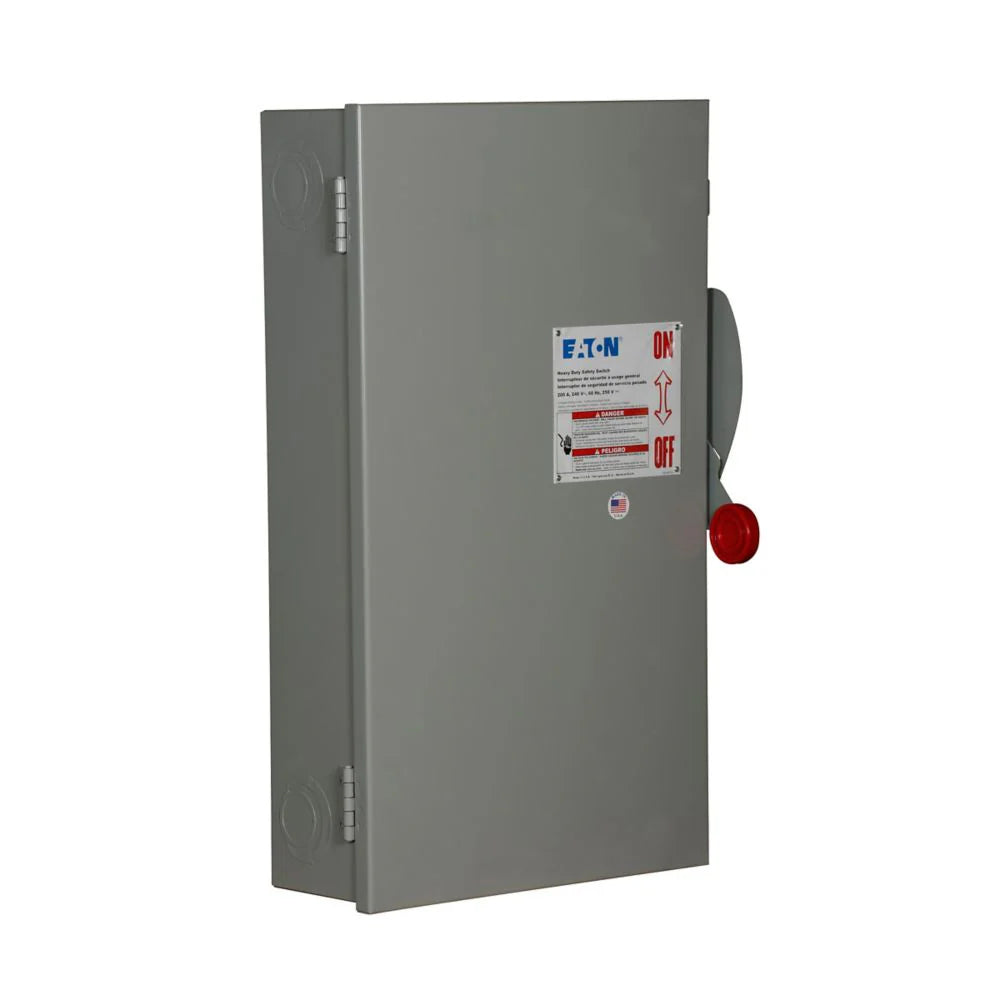

Eaton DH324NGK Safety Switch – 200A – 3-Pole / 4-Wire – 240V – Fusible – NEMA 1 – Heavy-Duty Series

The Eaton DH324NGK is a 200A, 3-pole, four-wire heavy-duty fused safety switch designed for compatible electrical distribution and disconnect applications. It features a single-throw fusible configuration, a NEMA 1 painted-steel enclosure, Class H fuse compatibility, and a neutral connection.

The DH324NGK is rated for 240V and supports applications with specified horsepower ratings of 15 HP, 25 HP / 15 HP, and 60 HP / 40 HP for the applicable 1- and 3-phase, standard/TD/250 VDC configurations.

Specifications:

• Manufacturer: Eaton
• Product Type: Safety Switch / Disconnect Switch
• Product Family: Heavy-Duty Safety Switches
• Catalog No.: DH324NGK
• Current Rating: 200A
• Number of Poles: 3-Pole
• Wire Configuration: 4-Wire
• Voltage Rating: 240V
• Switch Type: Fusible
• Switch Configuration: Single-Throw
• Fuse Class: Class H
• Neutral: With Neutral
• Enclosure Rating: NEMA 1
• Enclosure Material: Painted Steel
• Horsepower Rating: 15 HP; 25 HP / 15 HP; 60 HP / 40 HP, as applicable
• Phase Configuration: 1- and 3-Phase Applications
• Additional Rating Configuration: Standard / TD / 250 VDC, as applicable
• Conductor Range: #6–250 kcmil Copper/Aluminum
• Application: Electrical Distribution, Disconnect, and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DH324NGK
• Catalog Number: DH324NGK
• Model: DH324NGK
• Product Family: Eaton Heavy-Duty Safety Switches
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Heavy-Duty Fused Safety Switch
• Configuration: 3-Pole, 4-Wire
• Switch Type: Single-Throw Fusible
• Fuse Class: Class H
• UPC:782113206684

Compatibility:

Designed for use with compatible Eaton heavy-duty safety switch and electrical distribution applications requiring a 200A, 3-pole, 240V fusible disconnect. The DH324NGK is configured for four-wire applications with a neutral and uses Class H fuses.

The switch accommodates #6–250 kcmil copper or aluminum conductors. Always verify the specific electrical equipment, system voltage, fuse class, conductor size, neutral requirements, phase configuration, horsepower application, enclosure requirements, and installation specifications before installation.

Certifications:

• NEMA 1 Enclosure
• 200A Rated
• 3-Pole / 4-Wire
• 240V Rated
• Single-Throw Configuration
• Fusible Type
• Class H Fuse
• With Neutral
• Painted Steel Enclosure
• #6–250 kcmil Copper/Aluminum
• Heavy-Duty Safety Switch
