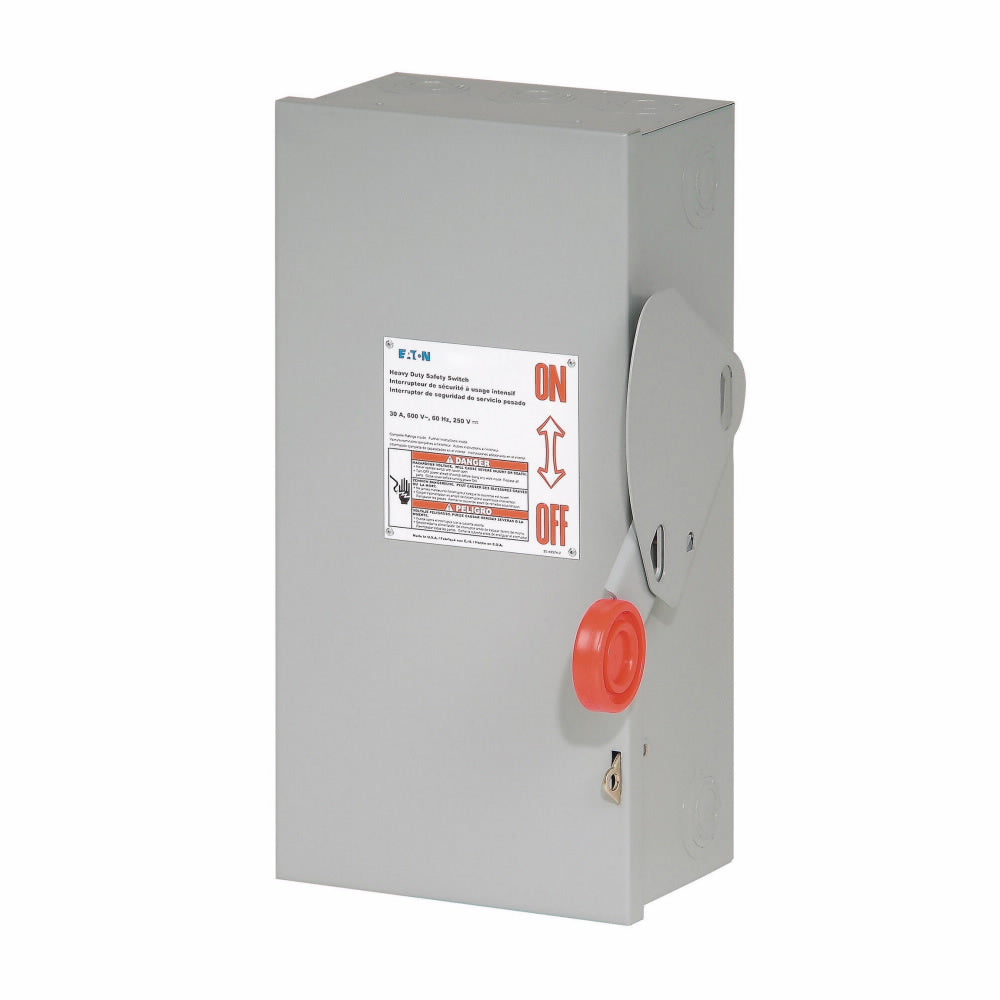

Eaton DH361NGK Disconnect and Safety Switch – 30A – 3-Pole / 4-Wire – 600V – Fusible with Neutral – Single-Throw Heavy-Duty Series

The Eaton DH361NGK is a 30A heavy-duty single-throw fused safety switch designed for electrical disconnect applications. It features a three-pole, four-wire configuration, 600V maximum voltage rating, and fusible-with-neutral construction.

The switch has a NEMA 1 painted-steel enclosure and uses Class H fuses. It accommodates #14–#2 copper or aluminum conductors and is suitable for compatible applications with the specified horsepower ratings.

Specifications:

• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Product Name: Heavy-Duty Single-Throw Fused Safety Switch
• Catalog No.: DH361NGK
• Current Rating: 30A
• Number of Poles: 3-Pole
• Wire Configuration: 4-Wire
• Voltage Rating: 600V
• Switch Type: Single-Throw
• Fuse Type: Class H
• Fuse Configuration: Fusible with Neutral
• Enclosure Rating: NEMA 1
• Enclosure Material: Painted Steel
• Conductor Range: #14–#2 Copper/Aluminum
• Horsepower Rating: 7.5 HP, 10 HP, 15 HP, and 20 HP as specified for applicable 1-/3-phase applications at 480V and 600V
• Application: Electrical Disconnect and Safety Switching
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DH361NGK
• Catalog Number: DH361NGK
• Model: DH361NGK
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Product Family: Heavy-Duty Safety Switches
• Configuration: 3-Pole, 4-Wire
• Switch Configuration: Single-Throw, Fusible with Neutral
• UPC:782113205526

Compatibility:

Designed for use in compatible Eaton heavy-duty safety switch and electrical disconnect applications requiring a 30A, 3-pole, 4-wire, 600V fusible switch with a neutral connection.

The DH361NGK uses Class H fuses, a NEMA 1 painted-steel enclosure, and accepts #14–#2 copper or aluminum conductors. Always verify the specific installation requirements, fuse selection, system voltage, phase and wire configuration, conductor size, enclosure requirements, and horsepower rating before installation.

Certifications:

• No specific certification information provided
