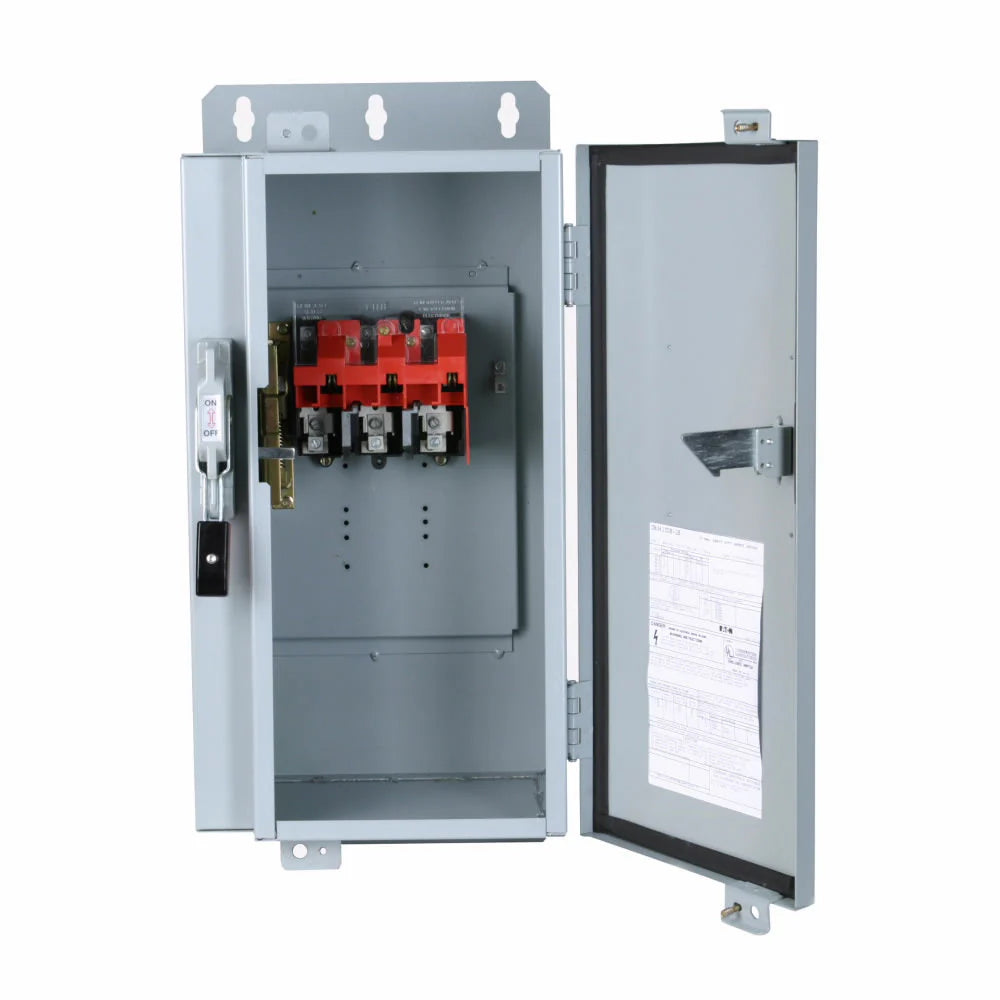

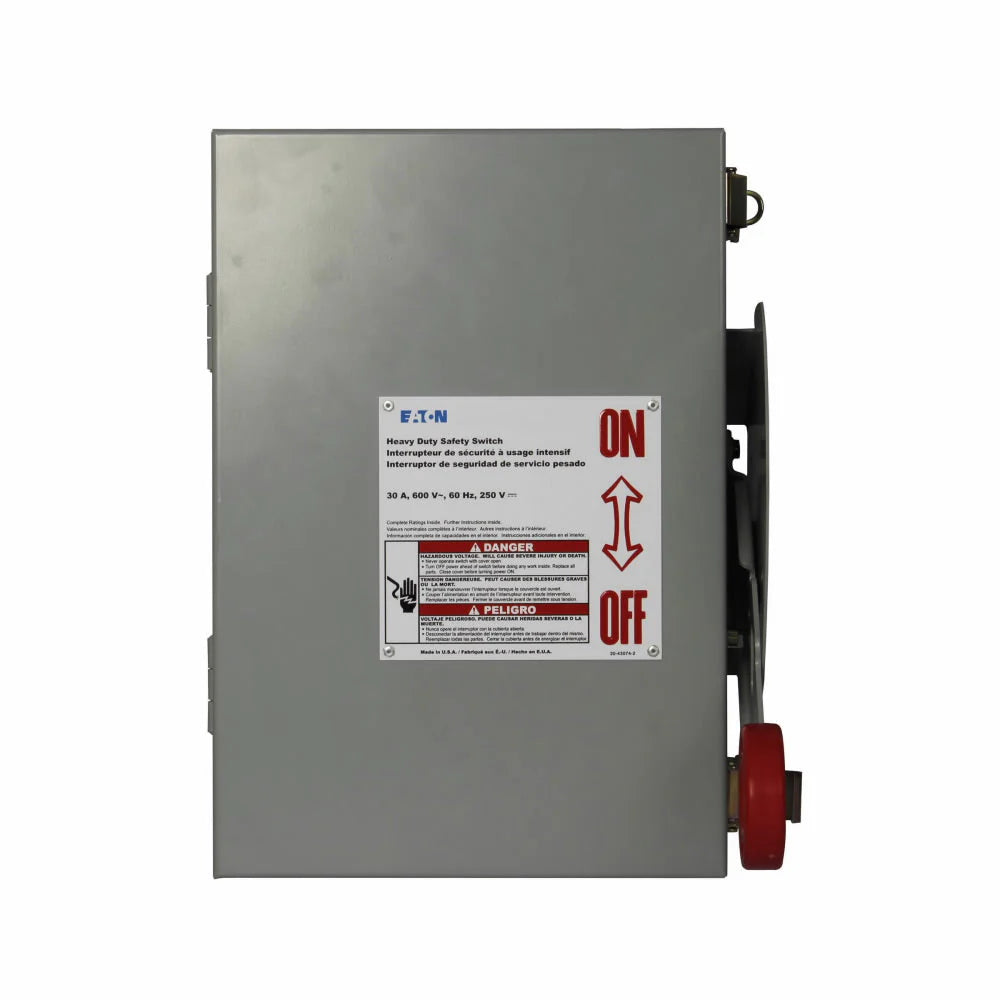

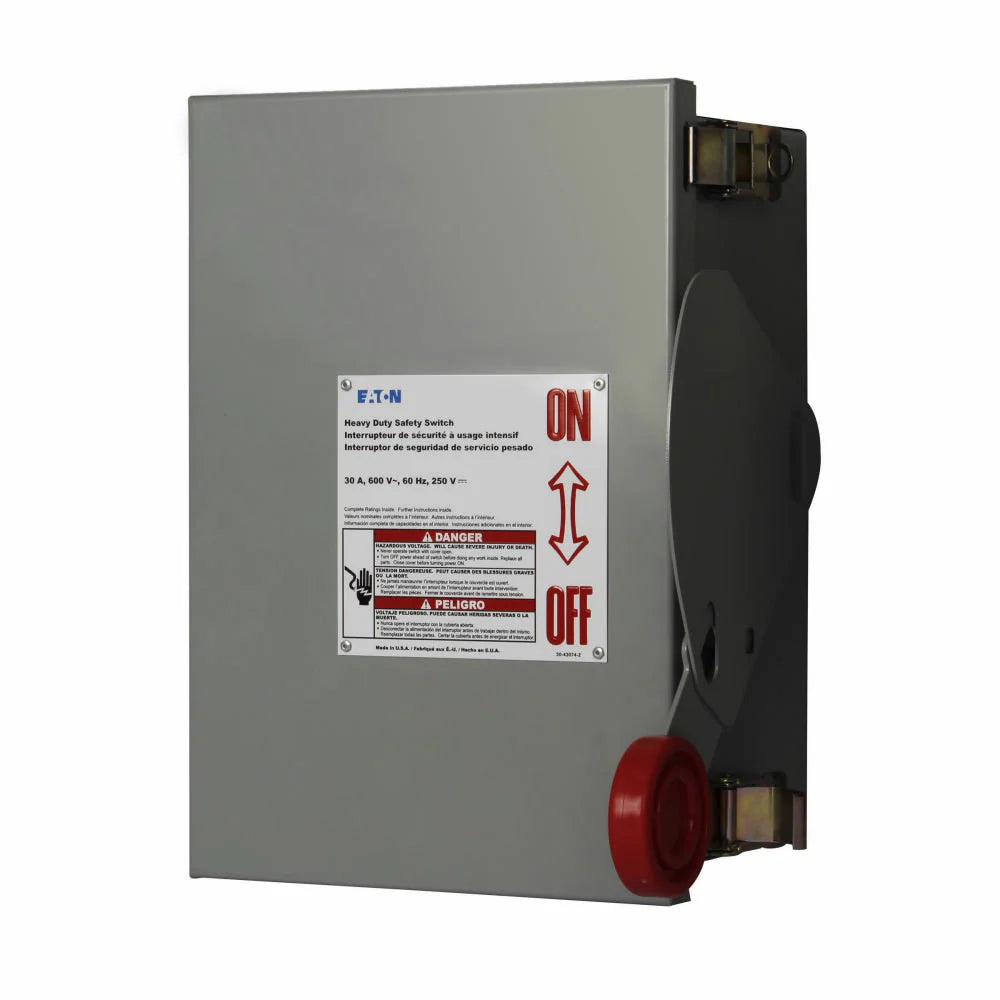

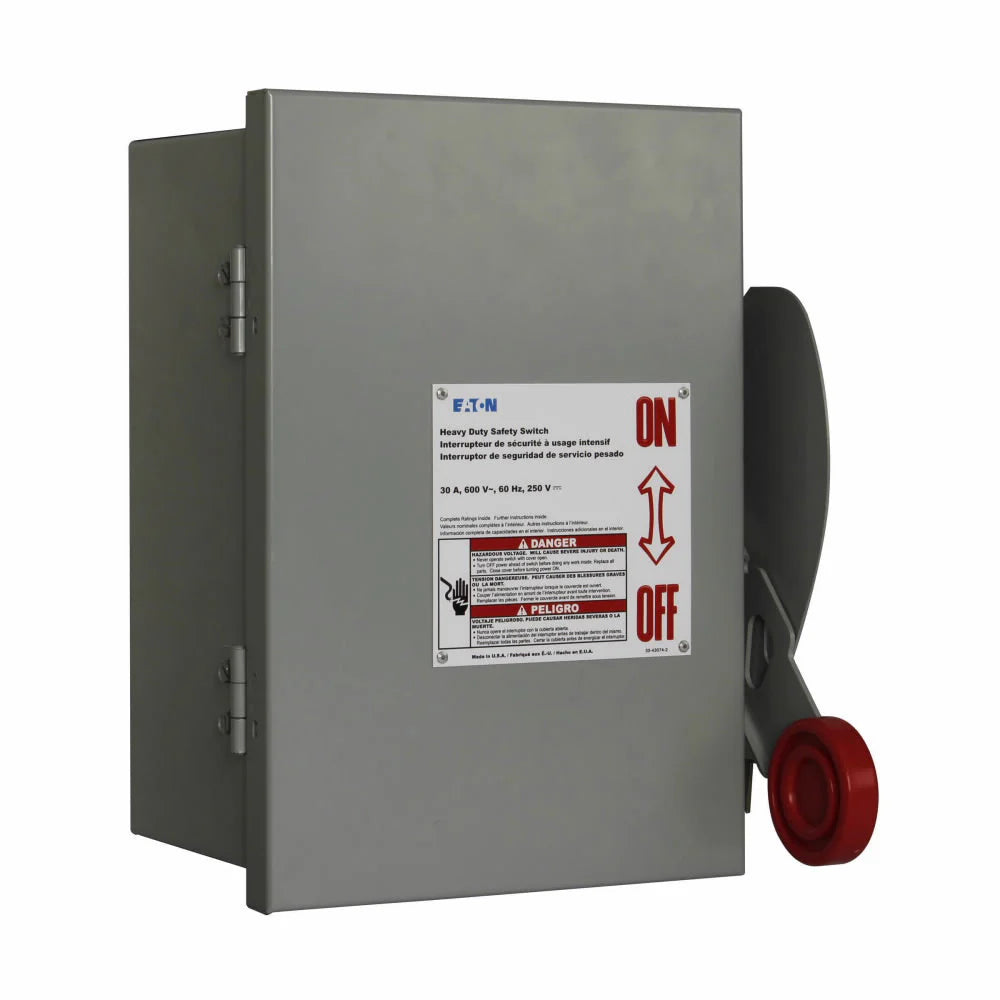

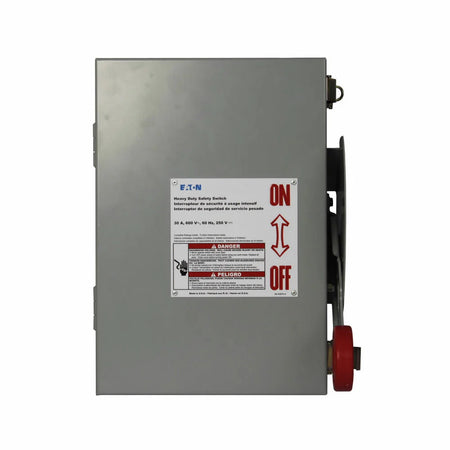

Eaton DH361UDK Disconnect and Safety Switch – 30A – 3-Pole / 3-Wire –Heavy-Duty – Cutler-Hammer Series

The Eaton DH361UDK is a 30A, 3-pole heavy-duty single-throw non-fusible safety switch designed for compatible electrical disconnect and safety-switch applications. It features a three-wire configuration and a NEMA 12 painted galvanized-steel enclosure.

The switch is non-fusible and provides single-throw disconnect operation. The source specifies horsepower ratings for compatible 240V, 480V, and 600V applications in both single-phase and three-phase configurations.

Specifications:

• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Product Family: Heavy-Duty Safety Switches
• Catalog No.: DH361UDK
• Current Rating: 30A
• Number of Poles: 3-Pole
• Wire Configuration: 3-Wire
• Switch Type: Single-Throw
• Fuse Type: Non-Fusible
• Enclosure Rating: NEMA 12
• Enclosure Material: Painted Galvanized Steel
• Voltage Rating: Not specified
• Horsepower Ratings:
  • 3 HP @ 240V AC, Single-Phase
  • 7.5 HP @ 480V AC, Single-Phase
  • 10 HP @ 600V AC, Single-Phase
  • 10 HP @ 240V AC, Three-Phase
• Application: Electrical Disconnect and Safety Switching

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DH361UDK
• Catalog Number: DH361UDK
• Model: DH361UDK
• Product Family: Eaton Heavy-Duty Safety Switches
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Configuration: 3-Pole, 30A
• Switch Configuration: Single-Throw, Non-Fusible
• Enclosure: NEMA 12, Painted Galvanized Steel
• UPC:782113205601

Compatibility:

Designed for use with compatible Eaton heavy-duty safety switch and electrical disconnect applications requiring a 30A, 3-pole, non-fusible single-throw switch.

The DH361UDK is specified with a NEMA 12 painted galvanized-steel enclosure and a three-wire configuration. Always verify the specific electrical equipment, system voltage, phase configuration, horsepower/load requirements, enclosure requirements, conductor configuration, and installation specifications before installation.

Certifications:

• Eaton Heavy-Duty Safety Switch
• 30A Rated
• 3-Pole
• 3-Wire Configuration
• Single-Throw
• Non-Fusible
• NEMA 12 Enclosure
• Painted Galvanized-Steel Enclosure
