Eaton DH361UGK – Eaton 30A 600V 3‑Pole Non‑Fusible Safety Switch NEMA 1

Description

DH361UGK

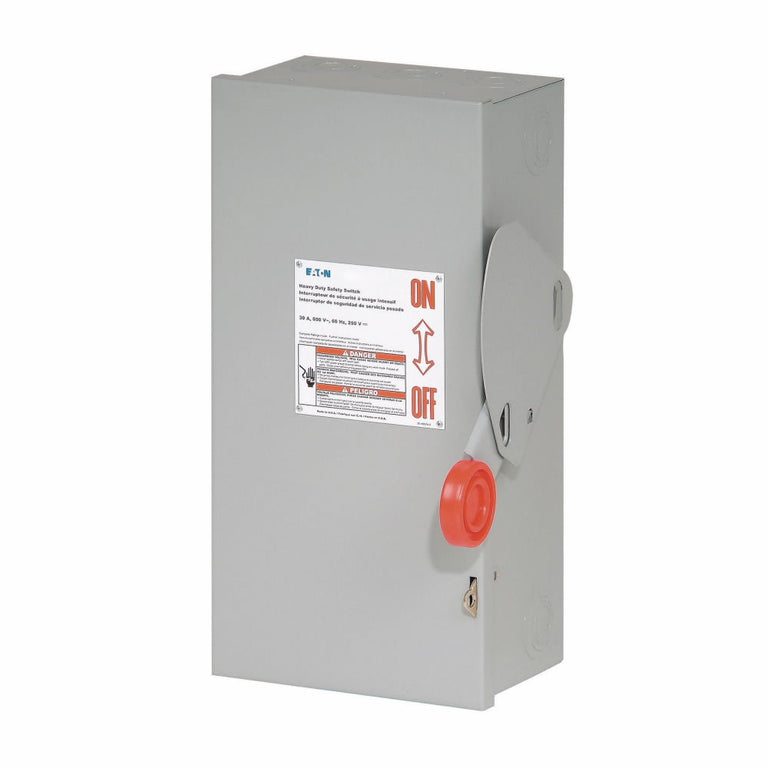

The DH361UGK is an Eaton heavy-duty non-fusible safety switch designed for commercial and industrial power distribution applications. It features a NEMA 1 painted steel enclosure for indoor use and is rated for 30 amps with a maximum voltage of 600 V AC. This three-pole, three-wire, single-throw disconnect provides reliable electrical isolation without fuses. It is suitable for general load disconnect and service entrance use.

Key Specifications

• Amperage: 30 A

• Voltage Rating: 600 V AC

• Maximum Voltage: 600 V AC

• Poles: 3

• Wires: 3

• Fusible: No (Non-fusible)

• Enclosure: Painted steel, NEMA 1

• Mounting Type: Surface mount

• Certifications: UL Listed

• Application: Heavy commercial, industrial disconnect

• Horsepower Ratings:

  • 7.5 HP @ 480 V AC 1-phase TD

  • 10 HP @ 600 V AC 1-phase TD

  • 10 HP @ 240 V AC 3-phase TD

  • 20 HP @ 480 V AC 3-phase TD

  • 30 HP @ 600 V AC 3-phase TD

  • 5 HP @ 250 V DC

Specifications

• Part Number: DH361UGK

• Manufacturer: Eaton

• Category: Switch

• Item Subcategory: Safety Switch / Disconnect

• Family: Heavy Duty Non-Fusible

• Type: Non-fusible Safety Switch

• Voltage: 600 AC

• Amperage: 30

• Phase: 3

• Poles: 3

• AIC Rating: Typical for heavy duty switches (200 kA class)

• Fuse Class: Non-fusible

• Configuration: Single

• Switch Style: Non-fusible

• NEMA Rating: NEMA 1

• Compatible Frames: Standard Heavy Duty Safety Switch Frames

Product Data

• UPC: 782113205502

• GTIN: 00782113205502

• Country of Origin: United States

• Dimensions: 16.5 in L x 9.12 in W x 8.31 in H

• Weight: ~17 lbs

• Certifications: UL Listed
