Eaton DH363FGK Disconnect and Safety Switch – 100A – 3-Pole / 3-Wire – 600V – Fusible Without Neutral – Single-Throw – Heavy-Duty Series

The Eaton DH363FGK is a 100A custom single-throw fused safety switch designed for electrical disconnect applications. It features a three-pole, three-wire configuration, 600V rating, and fusible-without-neutral construction.

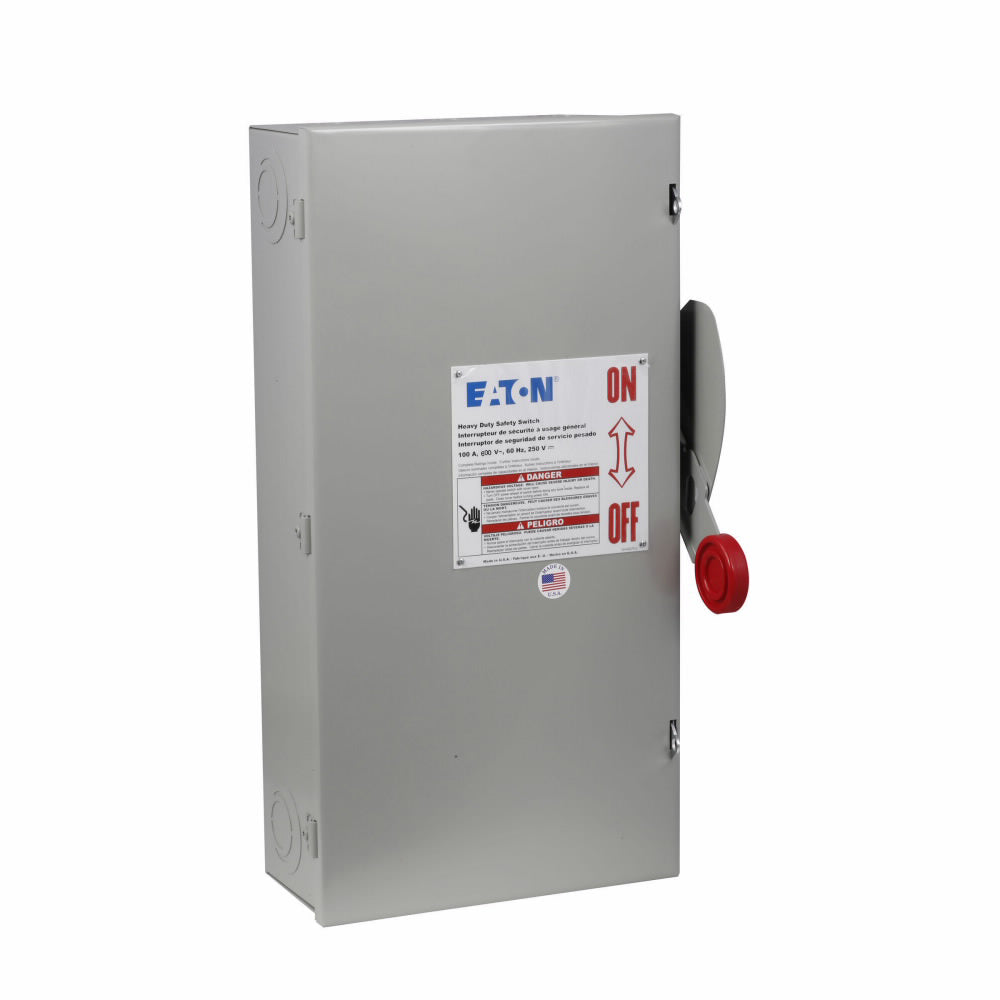

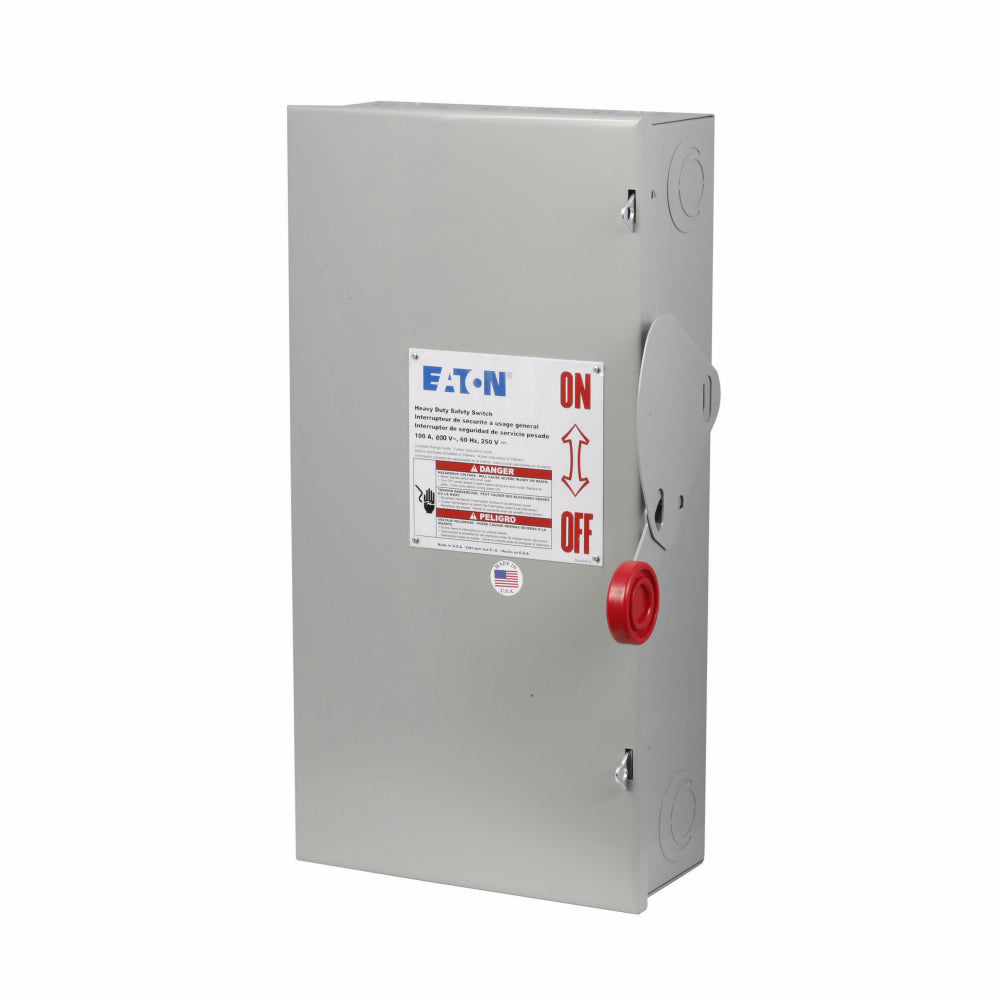

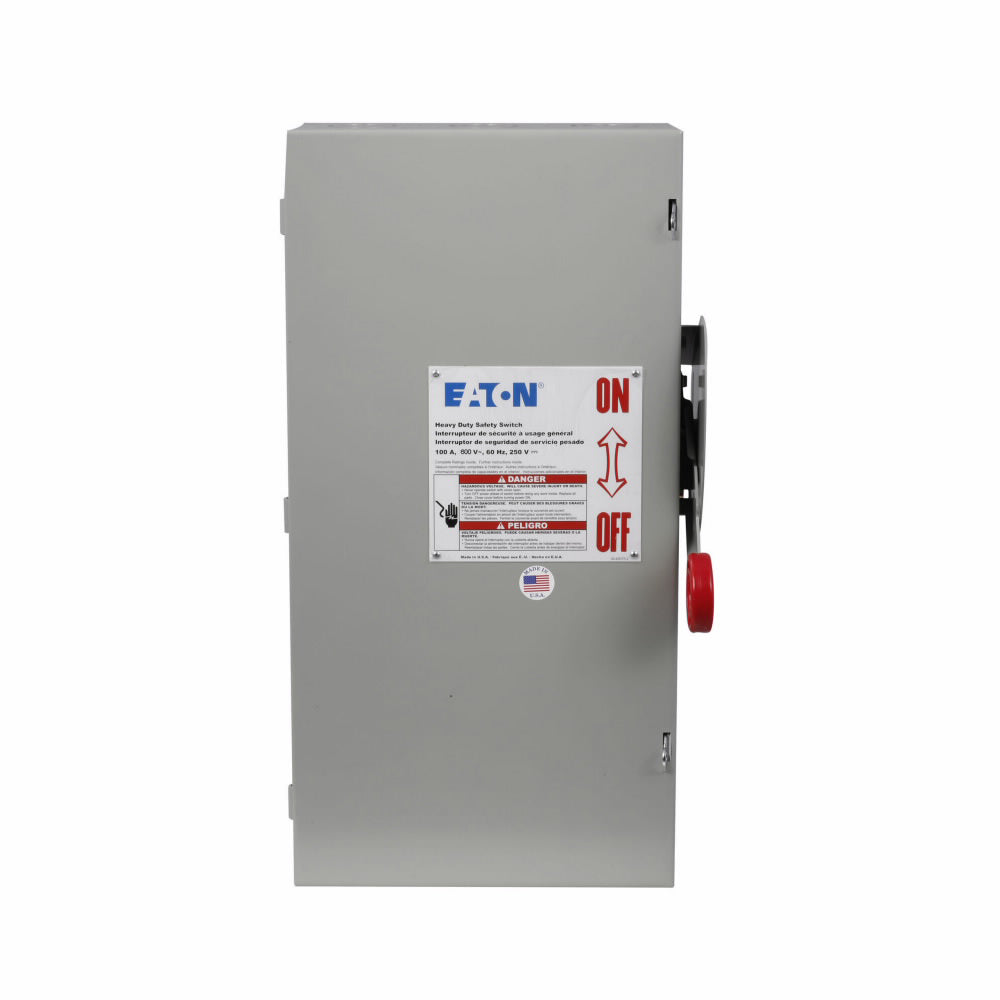

The switch has a NEMA 1 painted-steel enclosure, uses Class H fuses, and accommodates #14–1/0 copper or aluminum conductors. It is suitable for compatible applications with the specified horsepower ratings at 480V and 600V.

Specifications:

• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Product Name: Custom Single-Throw Fused Safety Switch
• Catalog No.: DH363FGK
• Current Rating: 100A
• Number of Poles: 3-Pole
• Wire Configuration: 3-Wire
• Voltage Rating: 600V
• Switch Type: Single-Throw
• Fuse Type: Class H
• Fuse Configuration: Fusible Without Neutral
• Enclosure Rating: NEMA 1
• Enclosure Material: Painted Steel
• Conductor Range: #14–1/0 Copper/Aluminum
• Horsepower Rating: 30 HP, 40 HP, 60 HP, and 75 HP as specified for applicable 1-/3-phase applications at 480V and 600V
• Application: Electrical Disconnect and Safety Switching
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DH363FGK
• Catalog Number: DH363FGK
• Model: DH363FGK
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Product Family: Fused Safety Switches
• Configuration: 3-Pole, 3-Wire
• Switch Configuration: Single-Throw, Fusible Without Neutral
• UPC:782113206417

Compatibility:

Designed for use in compatible Eaton fused safety switch and electrical disconnect applications requiring a 100A, 3-pole, 3-wire, 600V fusible switch without a neutral connection.

The DH363FGK uses Class H fuses, a NEMA 1 painted-steel enclosure, and accepts #14–1/0 copper or aluminum conductors. Always verify the specific installation requirements, fuse selection, system voltage, phase and wire configuration, conductor size, enclosure requirements, and applicable horsepower rating before installation.

Certifications:

• No specific certification information provided
