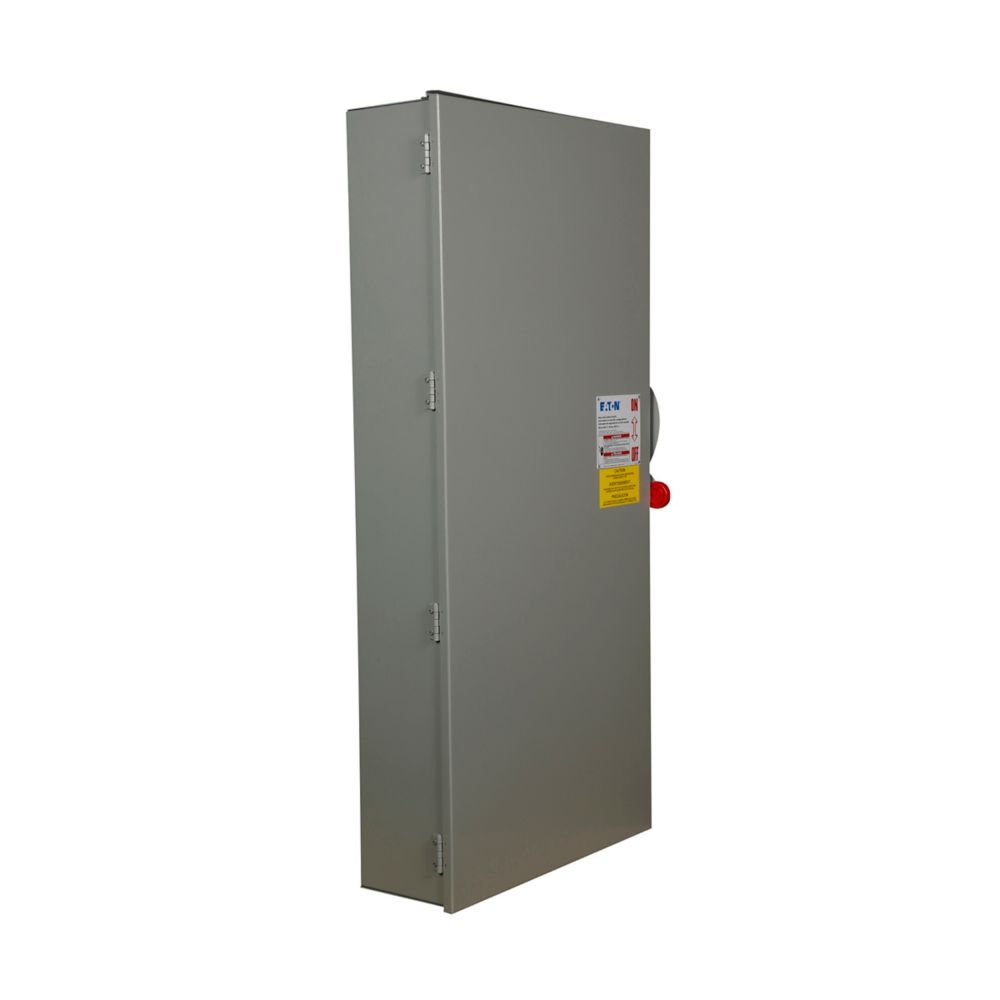

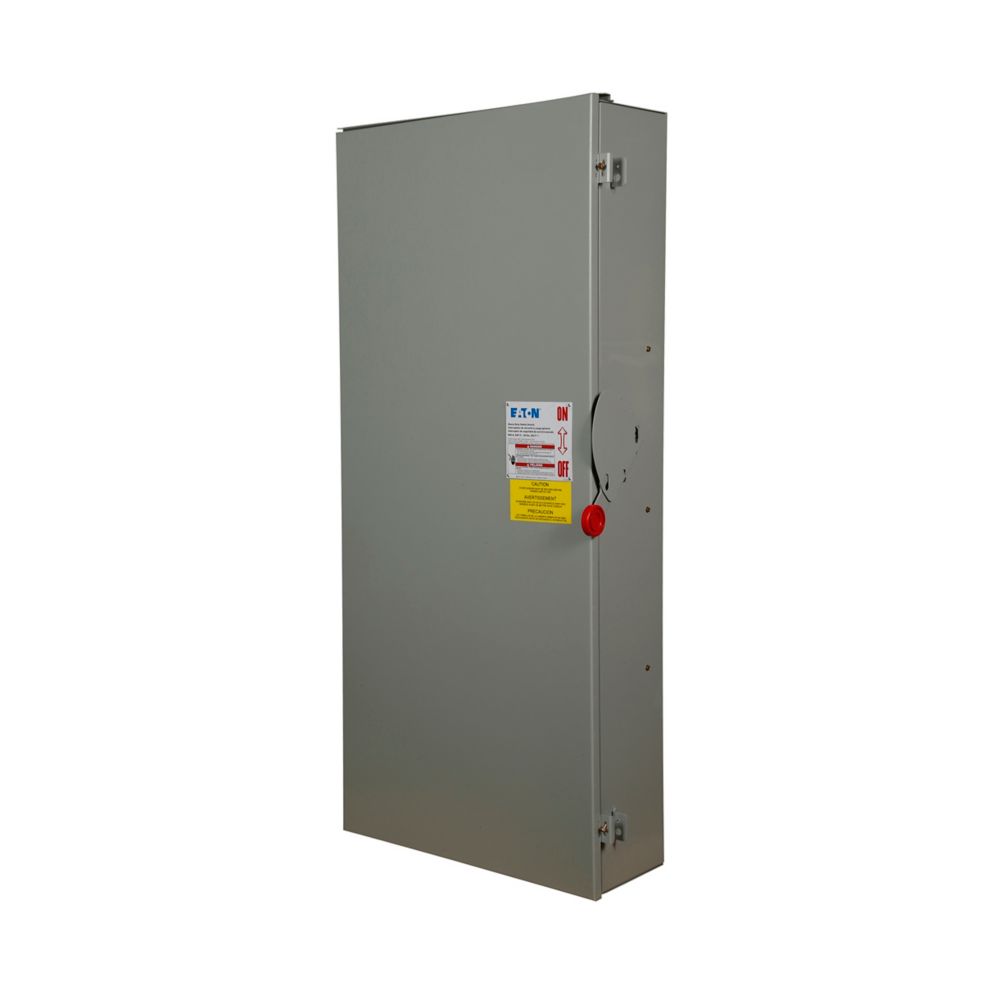

Eaton DH367FRK 800 Amp Fusible Safety Disconnect Switch – 3 Pole – 600 V – NEMA 3R – Visible Blade – Class L

The Eaton DH367FRK is an 800 Amp, 3-pole fusible safety disconnect switch featuring an enhanced visible-blade, single-throw design. It is rated for up to 600 V and is housed in a NEMA 3R enclosure made of painted galvanized steel. The switch is designed for three-phase, three-wire applications and uses Class L fuses. It is supplied without a neutral and supports motor loads up to 500 HP at 480/600 V, three phase.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Fusible Safety Disconnect Switch
• Catalog Number / MPN: DH367FRK
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Wiring Configuration: 3 Wire
• Voltage: 600 V Maximum
• Switch Type: Single-Throw
• Blade Design: Enhanced Visible Blade
• Fuse Class: Class L
• Fuse Configuration: Fusible, Without Neutral
• Enclosure Rating: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Maximum Horsepower: 500 HP at 480/600 V, 3 Phase
• Conductor Range: (4) #1/0 AWG to (4) 750 kcmil Aluminum

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: DH367FRK
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Fusible Safety Disconnect Switch
• Fuse Class: Class L
• Enclosure Rating: NEMA 3R
• UPC:782113589732

Compatibility

The Eaton DH367FRK is intended for compatible Eaton safety-switch installations requiring Class L fusing and outdoor-rated NEMA 3R protection.
