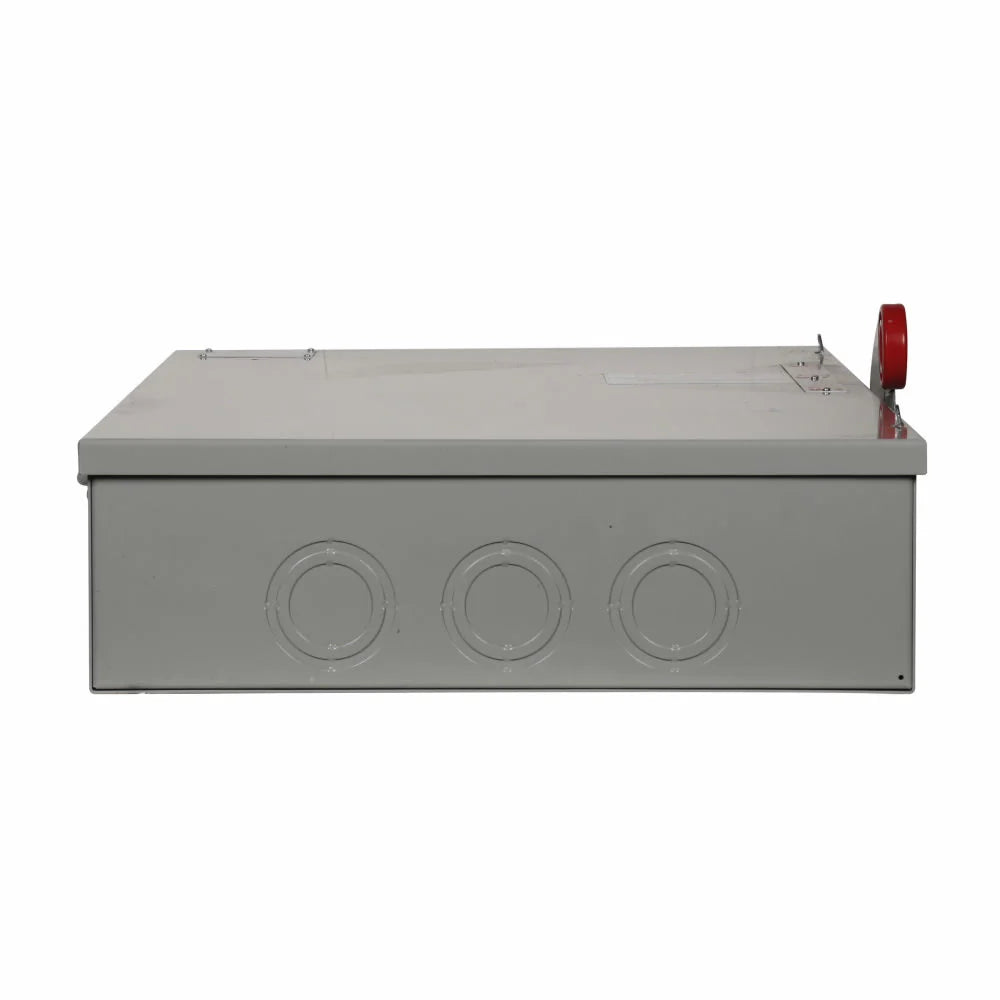

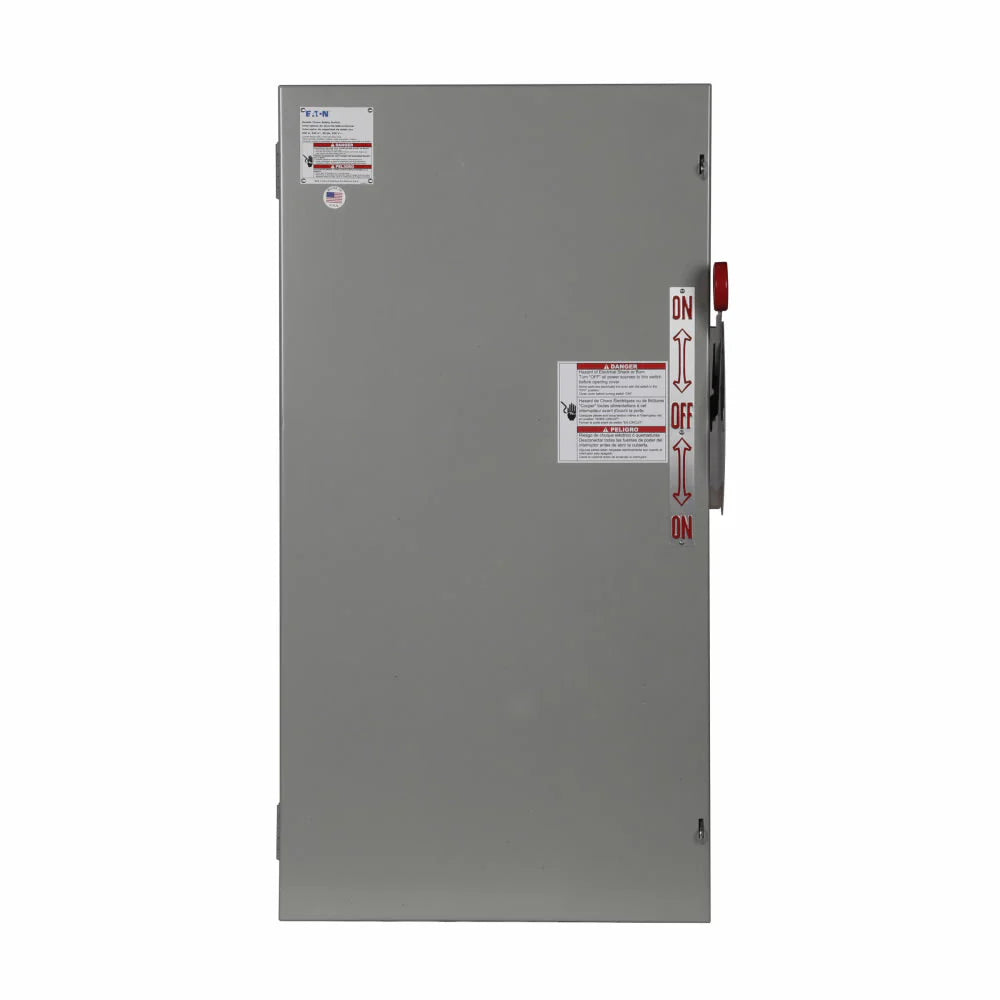

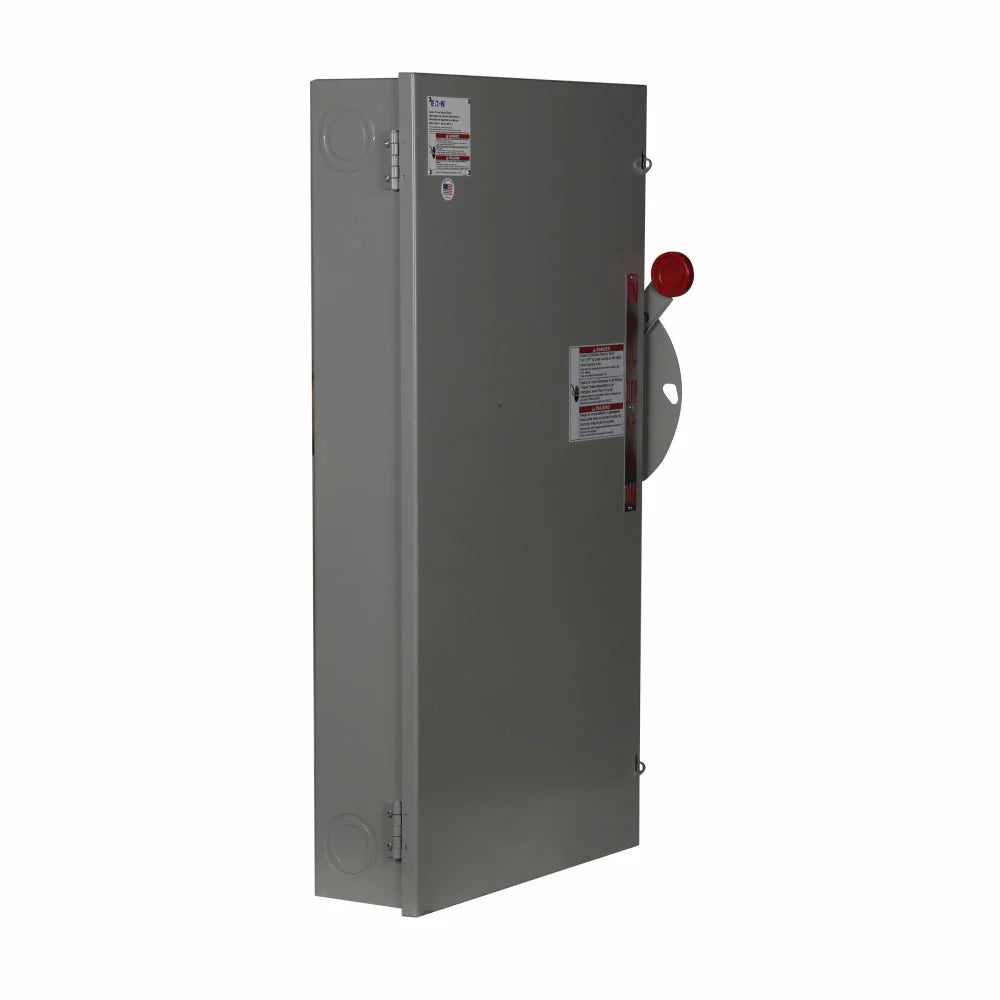

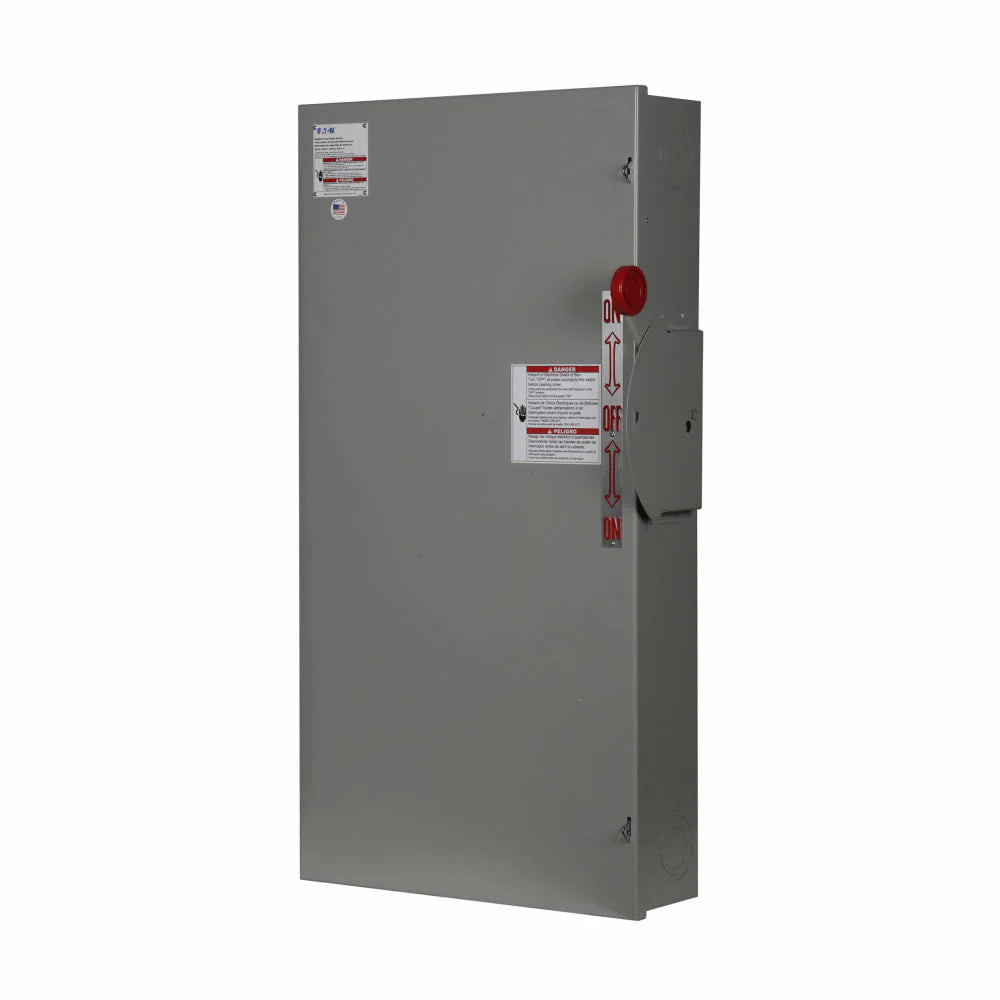

Eaton DT364UGK Disconnect and Safety Switch – 200A – 3-Pole / 3-Phase – 600V AC / 250V DC – 100kA @ 600V – Heavy-Duty Double-Throw – DT Series

The Eaton DT364UGK is a 200A, 3-pole, 3-phase heavy-duty double-throw safety disconnect switch from the Eaton / Cutler-Hammer DT Series. It is a non-fusible disconnect designed for compatible electrical distribution and disconnect applications.

The switch is rated for 600V AC / 250V DC and provides a 100kA interrupting rating at 600V. It features a 3-wire configuration, NEMA 1 enclosure, and is suitable for indoor use. The switch is specified as a single-style configuration.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Disconnect and Safety Switch
• Product Family: DT Series
• Series: DT
• Type: DT
• Catalog No.: DT364UGK
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 3-Wire
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 100kA @ 600V
• Switch Type: Non-Fusible
• Switch Configuration: Heavy-Duty Double-Throw
• Configuration: Single Style
• Enclosure Rating: NEMA 1
• Indoor Use: Suitable for Indoor Use
• Application: Electrical Disconnect and Safety Switching
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): DT364UGK
• Catalog Number: DT364UGK
• Model: DT364UGK
• Product Family: Eaton DT Disconnect and Safety Switches
• Series: DT
• Type: DT
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Disconnect and Safety Switch
• Configuration: 3-Pole, 200A
• Switch Type: Non-Fusible
• Switch Configuration: Heavy-Duty Double-Throw
• UPC:782113613970

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer DT Series electrical disconnect applications requiring a 200A, 3-pole, 3-phase heavy-duty double-throw non-fusible safety disconnect.

The DT364UGK is rated for 600V AC / 250V DC, uses a 3-wire configuration, and is housed in a NEMA 1 enclosure for indoor applications. Always verify the specific electrical equipment, system voltage, available fault current, conductor configuration, enclosure requirements, installation environment, and applicable installation requirements before installation.

Certifications:

• DT Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 100kA @ 600V Interrupting Rating
• Heavy-Duty Double-Throw
• Non-Fusible Type
• 3-Wire Configuration
• NEMA 1 Enclosure
• Suitable for Indoor Use
• Single-Style Configuration
• Disconnect and Safety Switch
