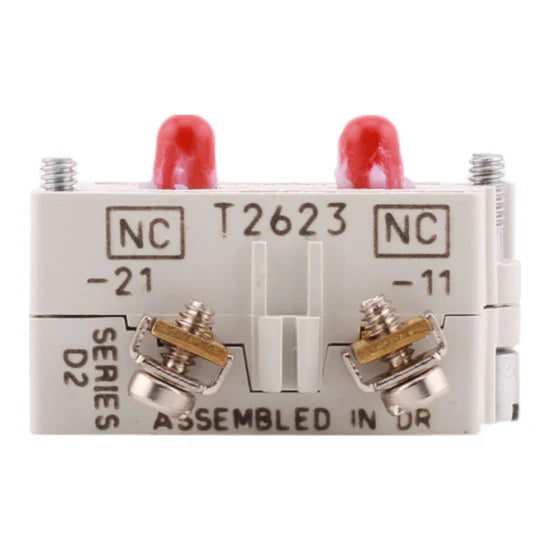

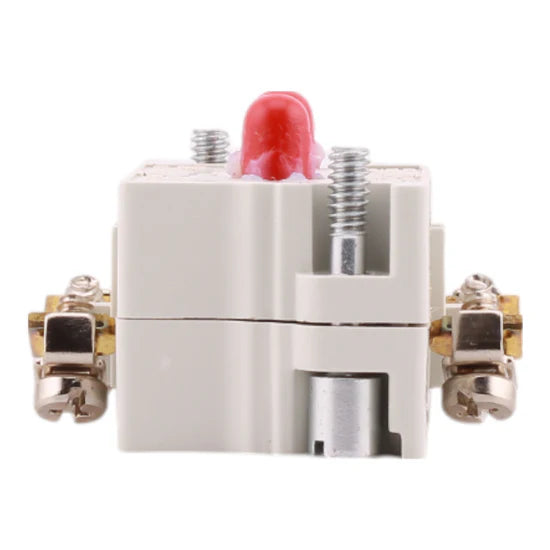

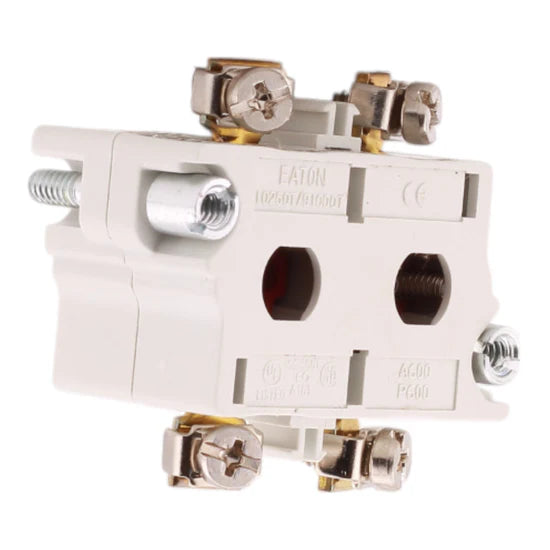

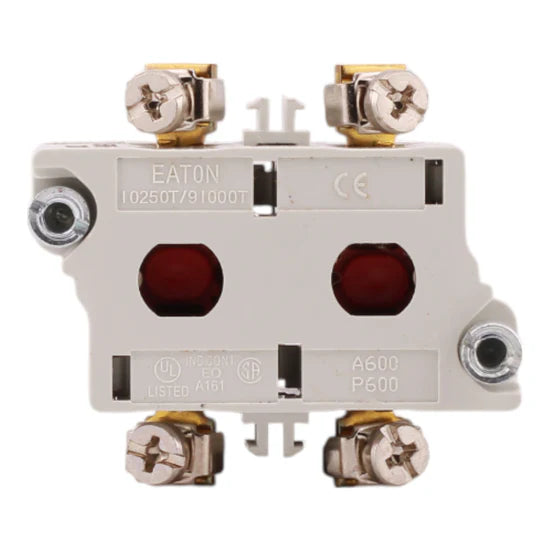

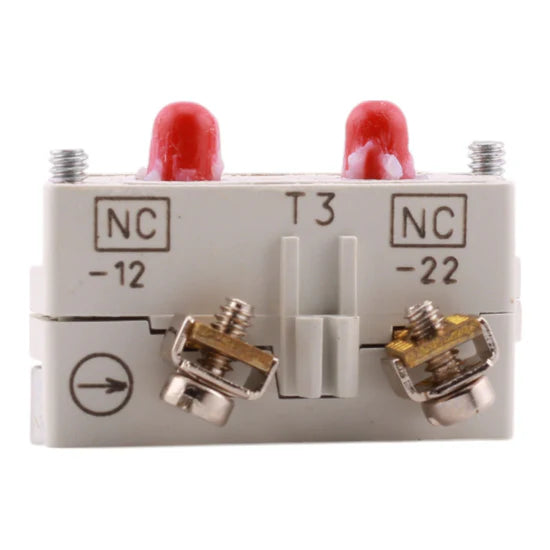

The Eaton 10250T3 heavy-duty contact block provides dependable 2 normally closed (2NC) switching for 30.5 mm 10250T pushbutton assemblies. Built for industrial control applications, it features rugged construction, pressure terminals, and a stackable design that allows flexible configuration in control panels and machinery.
Voltage and Rating
- Contact Configuration: 2 Normally Closed (2NC)
- Operator Size: 30.5 mm
Key Specifications
- Product Type: Pushbutton Contact Block
- Series: 10250T
- Terminal Type: Pressure terminals
- Mounting Type: Stackable (up to 6 blocks / 12 circuits)
- Application: Industrial control and pushbutton assemblies
Technical Specifications
- Construction: Heavy-duty industrial design
- Compatibility: Eaton 10250T pushbutton operators
- Certifications: UL Listed, CSA Certified, CE Marked
Product Data
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: 10250T3
- UPC: 10782113203437
Dimensions
-
- Height: 2.3 in
- Width: 1.3 in
- Depth: 1.3 in
- Weight: 0.08 lbs
