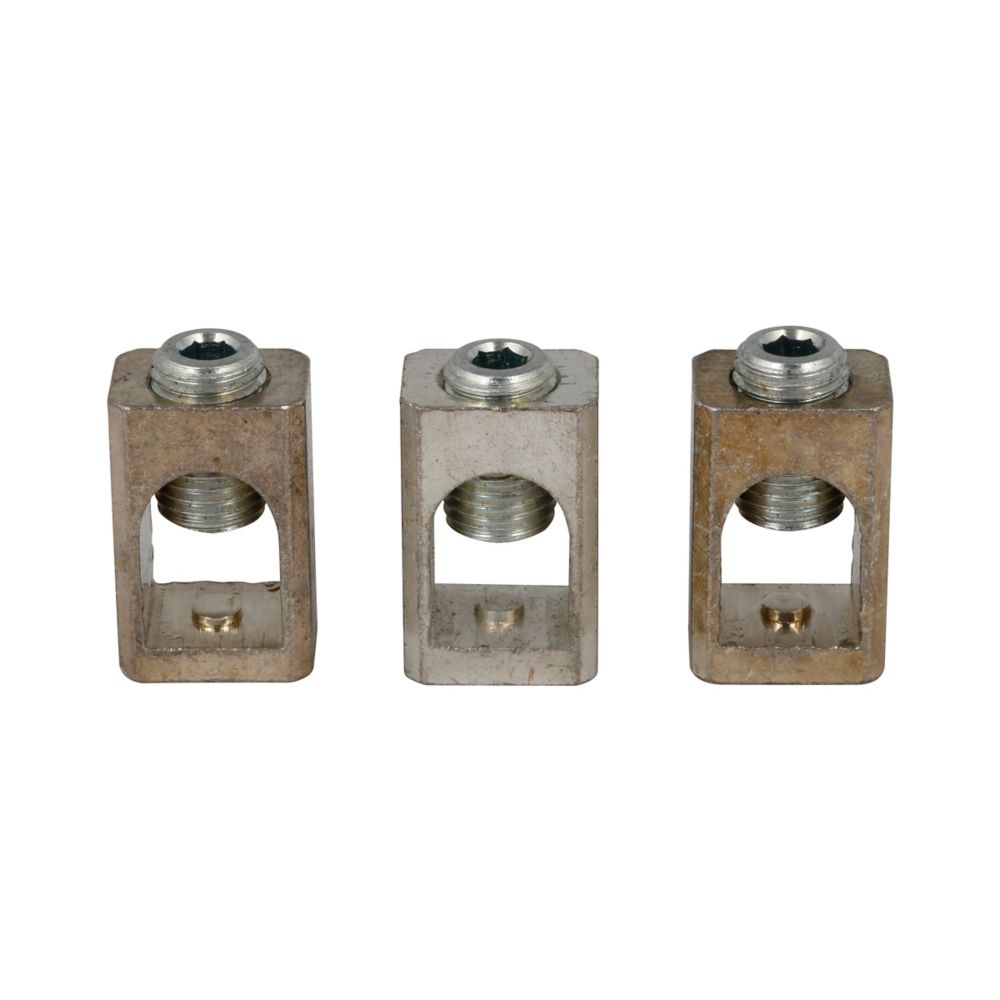

Eaton 3TA225FD 225A Series C Line and Load Terminal Kit

The Eaton 3TA225FD is a molded case circuit breaker accessory line and load terminal kit designed for Series C circuit breakers. Rated at 225A, it provides secure pressure-type connections for both line and load applications. Compatible with copper and aluminum conductors ranging from #4 to 4/0 AWG, this terminal kit ensures reliable electrical connectivity and is suitable for demanding industrial and commercial power distribution systems.

Voltage and Rating

• Current Rating: 225A
• Series: Series C

Key Specifications

• Manufacturer: Eaton
• Catalog Number: 3TA225FD
• Product Type: Molded Case Circuit Breaker Accessory
• Type: Line and Load Terminals
• Terminals: Pressure Type Line and Load
• Wire Size: #4–4/0 AWG Cu/Al
• Quantity: 18
• Certifications: UL Listed
• Compliance: Contact Manufacturer
• Global Catalog Number: 3TA225FD

Physical Details

• Product Length/Depth: 2.2 in
• Product Height: 0.5 in
• Product Width: 1.2 in
• Product Weight: 0.09 lb

Product Data

• Application: Line and load connection accessory for molded case circuit breakers
• Compatibility: Series C circuit breaker systems
• Function: Provides secure electrical termination for conductors
• Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first
