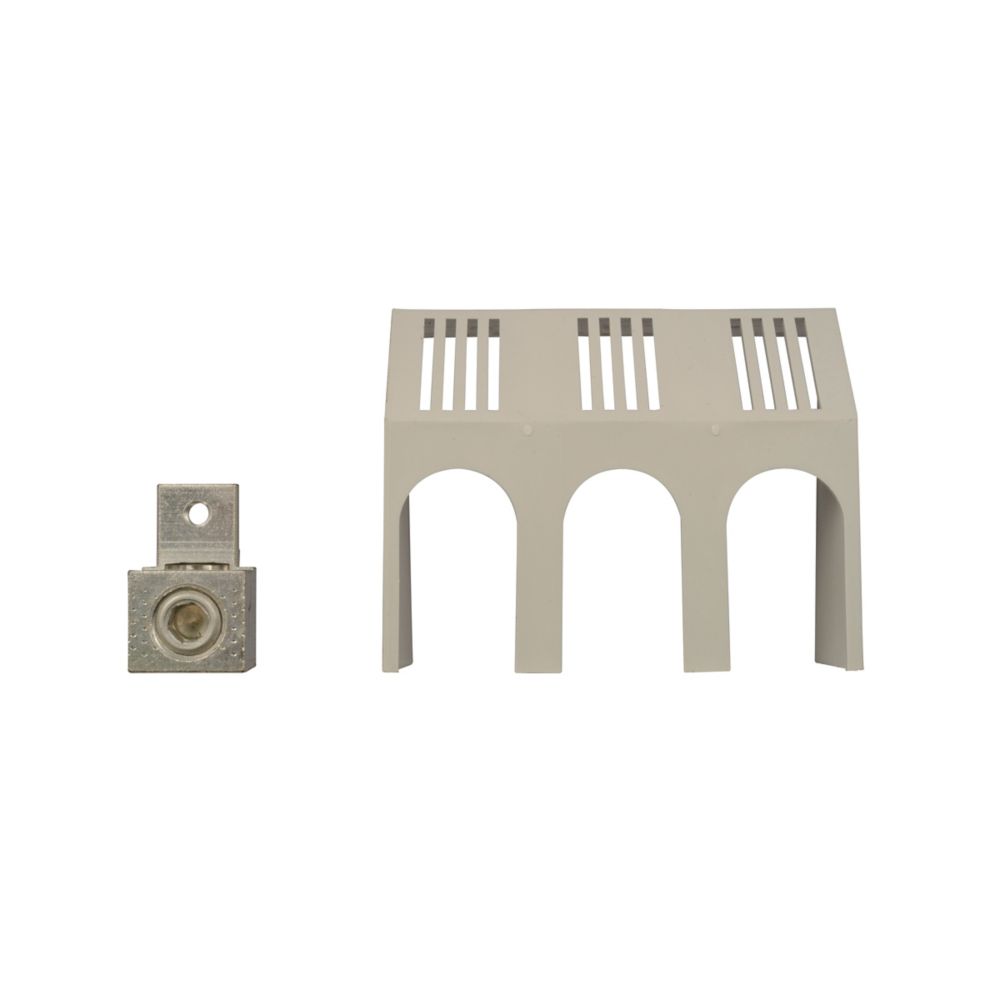

Eaton 3TA225FDK 225A Series C Line and Load Terminal Kit – Frame J-K

The Eaton 3TA225FDK is a molded case circuit breaker accessory line and load terminal kit designed for Series C circuit breakers. Rated at 225A, it is engineered for use with Frame J-K configurations and provides secure pressure-type electrical connections for both line and load applications. Suitable for copper and aluminum conductors ranging from #6 AWG to 300 kcmil, this terminal kit ensures reliable conductivity and durable performance in industrial and commercial electrical systems.

Voltage and Rating

• Current Rating: 225A
• Frame Size: Frame J-K
• Series: Series C

Key Specifications

• Manufacturer: Eaton
• Catalog Number: 3TA225FDK
• Product Type: Molded Case Circuit Breaker Accessory
• Type: Line and Load Terminals
• Terminals: Pressure Type
• Wire Size: #6 AWG – 300 kcmil Cu/Al
• Quantity: 18
• Certifications: UL Listed
• Compliance: Contact Manufacturer
• Global Catalog Number: 3TA225FDK

Physical Details

• Product Length/Depth: 6.4 in
• Product Height: 4.8 in
• Product Width: 4.1 in
• Product Weight: 0.7 lb

Product Data

• Application: Line and load connection accessory for molded case circuit breakers
• Compatibility: Series C Frame J-K systems
• Function: Provides secure electrical termination for power distribution conductors
• Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first
