Eaton Cutler-Hammer

Eaton AN16AN0BC Freedom NEMA Motor Control Starter – 9A, Size 0

In stock
SKU: AN16AN0BC GTIN/UPC: 782113971421
$327.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

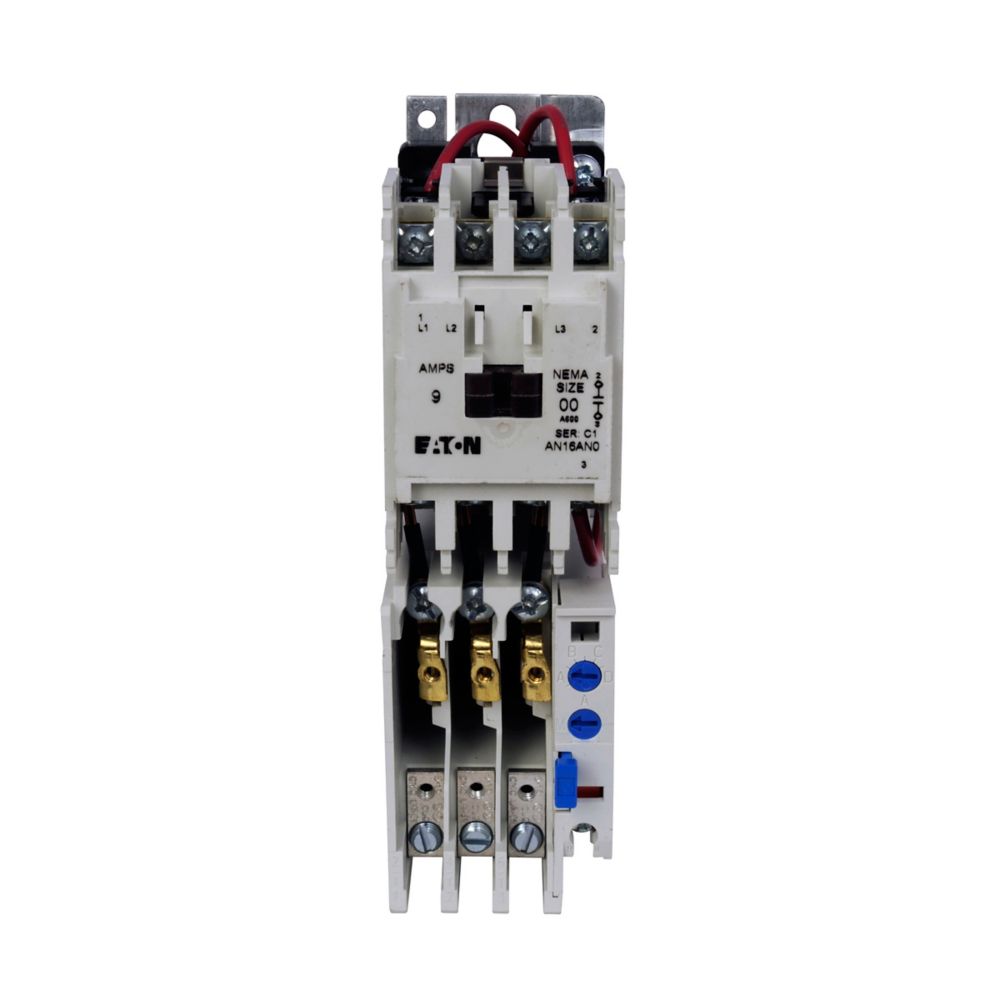

The Eaton AN16AN0BC is a Freedom Series NEMA motor control starter designed for reliable motor starting and overload protection in industrial applications. Equipped with a C306 bi-metal overload relay, this starter supports both single-phase and three-phase motor control. It is suitable for light-duty motor applications and requires heater packs to be purchased separately for proper overload protection.

Voltage and Rating

  • Current Rating: 9A
  • Coil Voltage: 220–240V AC, 50/60 Hz
  • Phase: Single-phase and three-phase
  • NEMA Size: 0
  • Mounting: Horizontal
  • Type: Motor Control Starter

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: AN16AN0BC
  • Product Type: Motor Control Starter
  • Family: Freedom NEMA
  • Certifications: UL Listed, CSA Certified
  • Special Features: Starter with C306 bi-metal overload relay
  • Catalog Notes: Heater packs must be purchased separately
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first

Motor Ratings

  • 1/3 HP @ 115V
  • 1 HP @ 230V
  • 1-1/2 HP @ 208/240V
  • 2 HP @ 480/600V

Physical Details

  • Product Length/Depth: 4.61 in
  • Product Height: 3.31 in
  • Product Width: 4.38 in
  • Product Weight: 2.6 lb

Product Data

  • UPC: 782113971421
  • Category: Motor Control Starter
  • Application: Motor starting and overload protection for industrial systems
  • System Use: Freedom Series NEMA motor control applications
  • Mounting Style: Horizontal configuration
  • Type Motor Control
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
