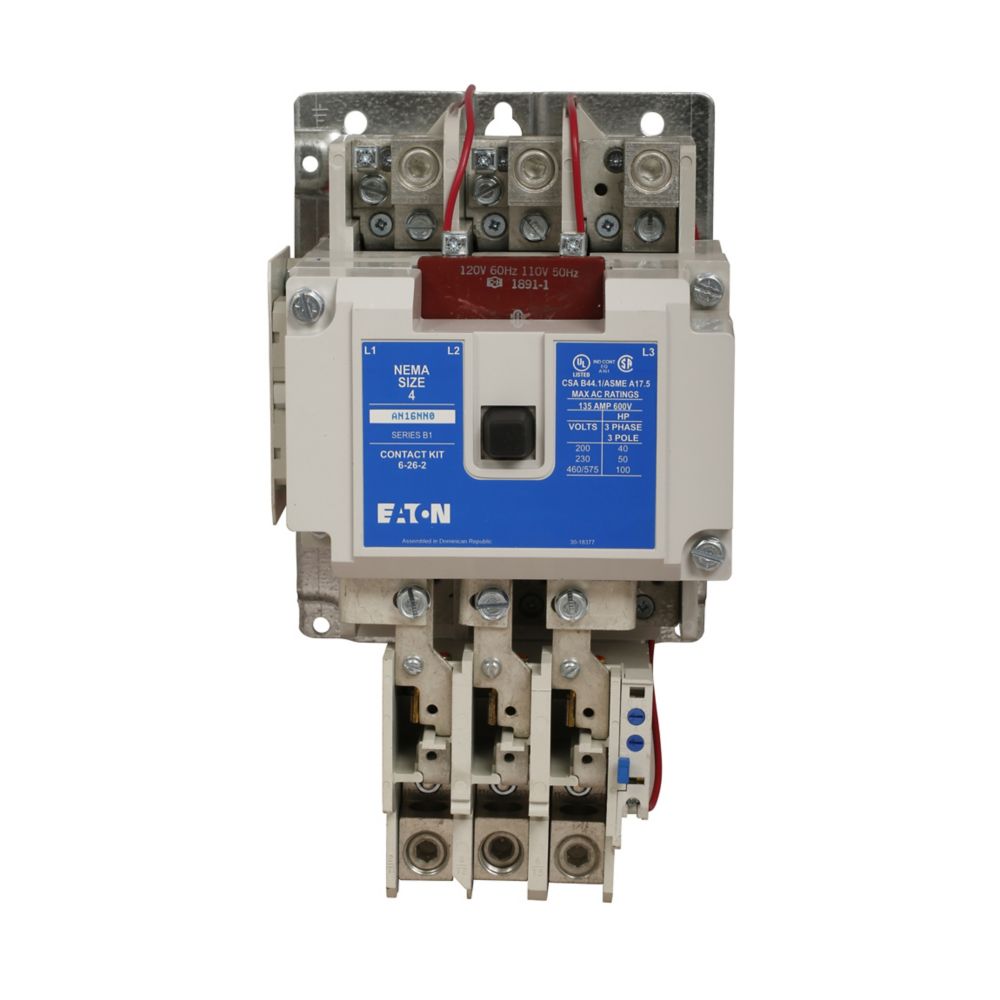

Eaton AN16NN0C Freedom NEMA Motor Control Starter – 135A, Size 4

In stock
SKU: AN16NN0C GTIN/UPC: 782113622507
$2,283.46
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton AN16NN0C is a Freedom Series NEMA motor control starter designed for heavy-duty three-phase motor starting and overload protection in industrial applications. It features a C306 bi-metal overload relay and a non-reversing configuration, delivering reliable performance for high horsepower motor loads. Heater packs must be purchased separately to ensure proper overload protection.

Voltage and Rating

  • Current Rating: 135A
  • Phase: Three-phase
  • Number of Poles: 3-Pole
  • NEMA Size: 4
  • Mounting: Horizontal
  • Coil Voltage: 480V/60 Hz or 440V/50 Hz
  • Configuration: Non-reversing
  • Type: Motor Control Starter

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: AN16NN0C
  • Product Type: Motor Control Starter
  • Family: Freedom NEMA
  • Certifications: UL Listed, CSA Certified
  • Special Features: Starter with C306 bi-metal overload relay
  • Relay Type: C306 bi-metal
  • Catalog Notes: Heater packs must be purchased separately
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first

Motor Ratings

  • 40 HP @ 208V
  • 50 HP @ 240V
  • 100 HP @ 480/600V

Physical Details

  • Product Length/Depth: 6.75 in
  • Product Height: 4.63 in
  • Product Width: 6.63 in
  • Product Weight: 9.3 lb

Product Data

  • UPC: 782113622507
  • Category: Motor Control Starter
  • Application: Industrial motor starting and overload protection
  • System Use: Freedom Series NEMA motor control applications
  • Mounting Style: Horizontal configuration
  • Type Motor Control
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
